USB Cameras

The USB cameras (USB 3.1 Gen1) by FLIR provide some of the best price performance in the industry. They use highly sensitive, reliable sensors and come packed with many features. The Blackfly line is the world's smallest PoE camera and the Flea cameras are the world's smallest USB cameras.

As the official distributor for FLIR cameras, Eureca offers many options for further increasing performance through modifications. Thus, for example remove the cover glass of the sensor or replace it with a special filter. Similarly, a UV coating is possible in order to use the sensor in the ultraviolet spectral range. By cooling the sensor and/or the entire camera, the readout noise can be minimized. Due to the abundance of different models, it is not easy to say in general which of these options are possible or useful for a specific camera. Please contact us if you are interested and we will gladly advise you about the respective options.

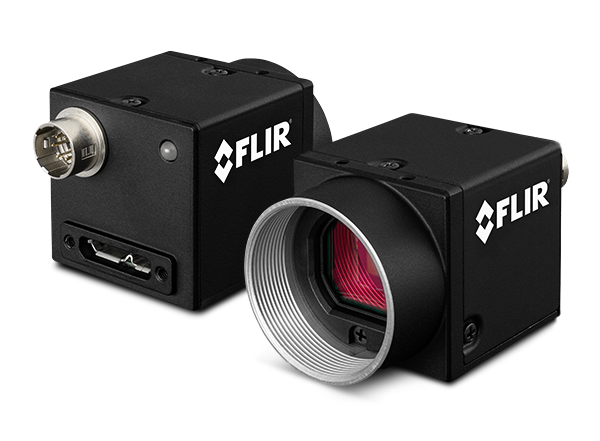

Blackfly Series

The Blackfly camera line combines highly sensitive sensors, industry-leading affordability and a host of unique features for uncompromising value. Every Blackfly model comes packed with functionality designed to maximize performance and reliability, including a 16 MByte frame buffer; LED status indicators; and an on-camera image processing pipeline that provides color interpolation, gamma, and lookup table functionality.

The Blackfly camera weighs just 36 grams, measures 29 x 29 x 30mm and uses 2 watts of power.

TypeChromaMega-
pixel
SensorReadoutResolutionFrame
rate
[fps]
Remark
BFLY-U3-05S2C-CSColor0.5Sony ICX693Global shutter808 × 60850Discontinued!
BFLY-U3-05S2M-CSMonochrome0.5Sony ICX693Global shutter808 × 60850Discontinued!
BFLY-U3-13S2C-CSColor1.3Sony ICX445Global shutter1288 × 96430Discontinued!
BFLY-U3-13S2M-CSMonochrome1.3Sony ICX445Global shutter1288 × 96430Discontinued!
BFLY-U3-20S4C-CSColor2.0Sony ICX274Global shutter1624 × 122415Discontinued!
BFLY-U3-20S4M-CSMonochrome2.0Sony ICX274Global shutter1624 × 122415Discontinued!
BFLY-U3-23S6C-CColor2.3Sony IMX249Global shutter1920 × 120041
BFLY-U3-23S6M-CMonochrome2.3Sony IMX249Global shutter1920 × 120041
BFLY-U3-50H5C-CColor5.0Sharp RJ32S3AA0DTGlobal shutter2488 × 20487.5
BFLY-U3-50H5M-CMonochrome5.0Sharp RJ32S3AA0DTGlobal shutter2488 × 20487.5

Version: 02-01-2022

Blackfly S Series

The Blackfly S is a compact, high performance machine vision camera that allows designers to easily produce the exact images they need. With features for both automatic and precise manual control over image capture and on-camera pre-processing, the Blackfly S accelerates application development.

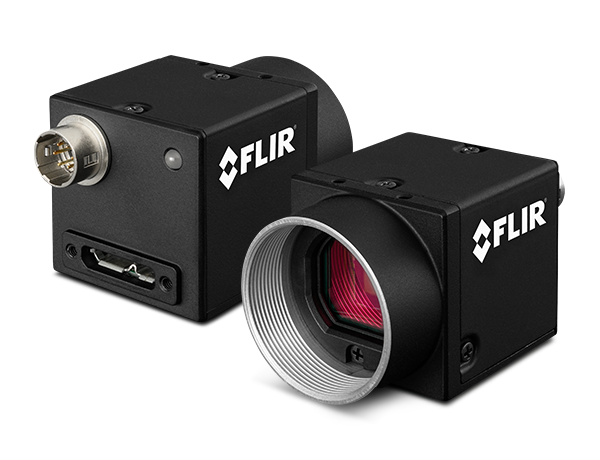

Blackfly S USB Camera

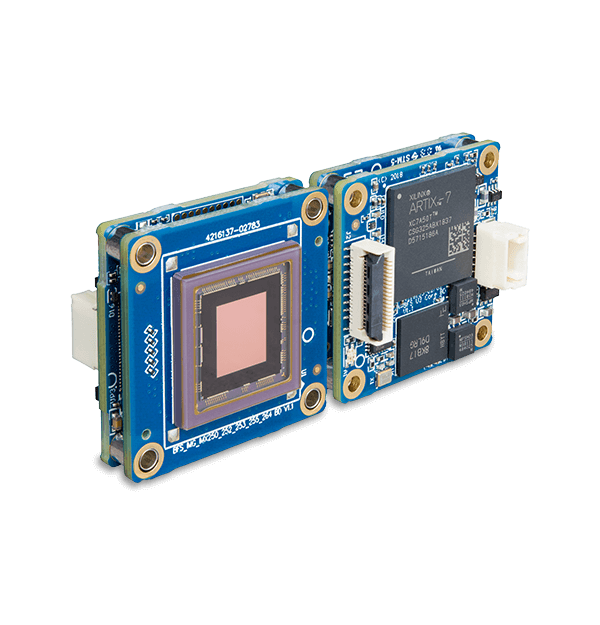

Blackfly S Board Level Camera

  • The Exact Images You Need
    • Choice of CMOS global shutter, polarization, and high-sensitivity BSI sensors
    • Color transformation tools ensure true- to-life color
    • Advanced auto-algorithms or precise manual control
  • Develop Once, Deploy Anywhere
    • Support for a wide range of operating systems and host system hardware architectures
    • Easily switch to board level models for embedded systems
    • Simplified product iteration with consistent form factor across sensor sizes
  • Accelerate Application Development
    • Compatible with third party software and hardware
    • Less code-writing required using powerful on-camera features
    • Quickly build custom applications with rich sample code and descriptive API logging
  • Library of Resources
    • Library of Technical Application Notes, Knowledge Base articles and how-to videos

Please note: The suffix -BD2 indicates a housing-less board camera. Details can be found on the linked product detail page.

TypeChromaMega-
pixel
SensorReadoutResolutionFrame
rate
[fps]
Remark
BFS-U3-04S2C-CColor0.4Sony IMX287Global shutter720 × 540522
BFS-U3-04S2C-CSColor0.4Sony IMX287Global shutter720 × 540 522
BFS-U3-04S2M-CMonochrome0.4Sony IMX287Global shutter720 × 540522
BFS-U3-04S2M-CSMonochrome0.4Sony IMX287Global shutter720 × 540 522
BFS-U3-120S4C-CSColor12Sony IMX226Rolling shutter with global reset 4000 × 3000 31
BFS-U3-120S4M-CSMonochrome12Sony IMX226Rolling shutter with global reset 4000 × 3000 31
BFS-U3-122S6C-CColor12.3Sony IMX304Global shutter4096 × 3000 23
BFS-U3-122S6M-CMonochrome12.3Sony IMX304Global shutter4096 × 3000 23
BFS-U3-123S6C-CColor12.3Sony IMX253Global shutter4096 × 3000 30
BFS-U3-123S6M-CMonochrome12.3Sony IMX253Global shutter4096 × 3000 30
BFS-U3-13Y3C-CColor1.3On Semi PHYTON 1300Global shutter1280 × 1024170
BFS-U3-13Y3M-CMonochrome1.3On Semi PHYTON 1300Global shutter1280 × 1024170
BFS-U3-16S2C-CSColor1.6Sony IMX273Global shutter1440 × 1080 226
BFS-U3-16S2M-CSMonochrome1.6Sony IMX273Global shutter1440 × 1080226
BFS-U3-16S7C-CColor1.7Sony IMX432Global shutter1600 × 110097
BFS-U3-16S7M-CMonochrome1.7Sony IMX432Global shutter1600 × 110097
BFS-U3-17S7C-CColor1.7Sony IMX425Global shutter1600 × 1100196
BFS-U3-17S7M-CMonochrome1.7Sony IMX425Global shutter1600 × 1100196
BFS-U3-19S4C-CColor2.0Sony IMX430Global shutter1616 × 1240131
BFS-U3-19S4M-CMonochrome2.0Sony IMX430Global shutter1616 × 1240131
BFS-U3-200S6C-CColor20 Sony IMX183Rolling shutter with global reset5472 × 364818
BFS-U3-200S6M-CMonochrome20Sony IMX183Rolling shutter with global reset5472 × 364818
BFS-U3-20S4C-CColor2Sony IMX422Global shutter1616 × 1240175
BFS-U3-20S4M-CMonochrome2Sony IMX422Global shutter1616 × 1240175
BFS-U3-23S3C-CColor2.3Sony IMX392Global Shutter1920 × 1200163
BFS-U3-23S3M-CMonochrome2.3Sony IMX392Global Shutter1920 × 1200163
BFS-U3-244S8C-CColor24.5Sony IMX540Global Shutter5320 × 460015
BFS-U3-244S8M-CMonochrome24.5Sony IMX540Global Shutter5320 × 460015
BFS-U3-27S5C-CColor2.8Sony IMX429Global Shutter1936 × 146495
BFS-U3-27S5M-CMonochrome2.8Sony IMX429Global Shutter1936 × 146495
BFS-U3-28S5C-CColor2.8Sony IMX421Global Shutter1936 × 1464130
BFS-U3-28S5M-CMonochrome2.8Sony IMX421Global Shutter1936 × 1464130
BFS-U3-31S4C-CColor3.2Sony IMX265Global shutter2048 × 1536 55
BFS-U3-31S4M-CMonochrome3.2Sony IMX265Global shutter2048 × 1536 55
BFS-U3-32S4C-CColor3.2Sony IMX252Global shutter 2048 × 1536 118
BFS-U3-32S4M-CMonochrome3.2Sony IMX252Global shutter2048 × 1536 118
BFS-U3-50S4C-CColor5announced, available to order
BFS-U3-50S4M-CMonochrome5announced, available to order
BFS-U3-50S5C-CColor5.0Sony IMX264Global shutter 2448 × 2048 35
BFS-U3-50S5M-CMonochrome5.0Sony IMX264Global shutter 2448 × 2048 35
BFS-U3-51S5C-CColor5.0Sony IMX250Global shutter2488 × 204875
BFS-U3-51S5M-CMonochrome5.0Sony IMX250Global shutter2488 × 204875
BFS-U3-51S5P-CPolarized5.0Sony IMX250MZRGlobal shutter2488 × 204875
BFS-U3-51S5PC-CPolarized Color5.0Sony IMX250MYRGlobal Shutter2448 × 204875
BFS-U3-63S4C-CColor6.3Sony IMX178Rolling shutter with global reset 3072 × 204859.6
BFS-U3-63S4M-CMonochrome6.3Sony IMX178Rolling shutter with global reset 3072 × 204859.6
BFS-U3-70S7C-CColor7.1Sony IMX428Global Shutter3208 × 220051
BFS-U3-70S7M-CMonochrome7.1Sony IMX428Global Shutter3208 × 220051
BFS-U3-88S6C-CColor8.9Sony IMX267Global shutter4096 × 2160 32
BFS-U3-88S6M-CMonochrome8.9Sony IMX267Global shutter4096 × 2160 32
BFS-U3-89S6C-CColor8.9Sony IMX255Global shutter4096 × 2160 42
BFS-U3-89S6M-CMonochrome8.9Sony IMX255Global shutter4096 × 216042
BFS-U3-122S6C-BD2Color12.3Sony IMX304Global shutter4096 × 3000 23
BFS-U3-122S6M-BD2Monochrome12.3Sony IMX304Global shutter4096 × 3000 23
BFS-U3-16S2C-BD2Monochrome1.6Sony IMX273Global Shutter1440 × 1080226
BFS-U3-16S2M-BD2Color1.6Sony IMX273Global Shutter1440 × 1080226
BFS-U3-200S6C-BD2Color20Sony IMX183Rolling shutter with global reset 5472 × 3648 17
BFS-U3-200S6M-BD2Monochrome20Sony IMX183Rolling shutter with global reset 5472 × 3648 17
BFS-U3-31S4C-BD2Color3.2Sony IMX265Global shutter2048 × 1536 55
BFS-U3-31S4M-BD2Monochrome3.2Sony IMX265Global shutter2048 × 1536 55
BFS-U3-32S4C-BD2Color3.2Sony IMX252Global shutter2048 × 1536 118
BFS-U3-32S4M-BD2Monochrome3.2Sony IMX252Global shutter 2048 × 1536 118
BFS-U3-50S5C-BD2Color5.0Sony IMX264Global shutter 2448 × 2048 35
BFS-U3-50S5M-BD2Monochrome5.0Sony IMX264Global shutter 2448 × 2048 35
BFS-U3-51S5C-BD2Color5.0Sony IMX250Global shutter2488 × 204875
BFS-U3-51S5M-BD2Monochrome5.0Sony IMX250Global shutter2488 × 204875
BFS-U3-88S6C-BD2Color8.9Sony IMX267Global shutter4096 × 2160 32
BFS-U3-88S6M-BD2Monochrome8.9Sony IMX267Global shutter4096 × 2160 32

Version: 03-18-2024

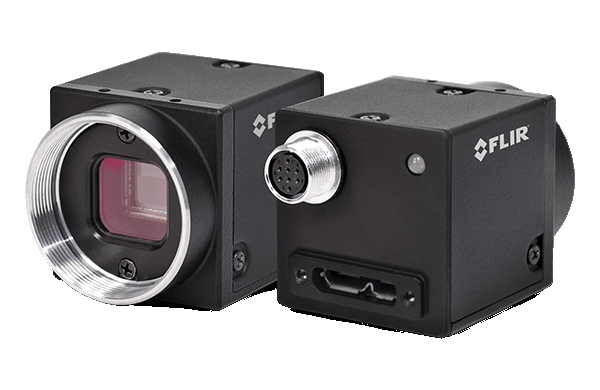

Flea3 Series

The Flea3 line of USB3 Vision, GigE Vision and FireWire cameras offers a variety of CMOS and CCD image sensors in ultra-compact, low-cost packages. Measuring just 29 x 29 x 30 mm, the Flea3 has the same small, lightweight form factor as many industry-standard »ice cube« analog cameras. The Flea3 also offers a host of features, including enhanced opto-isolated GPIO; a 32 megabyte frame buffer; non-volatile user data storage; various trigger modes; on-camera processing including color interpolation, look up table, gamma correction, and pixel binning functionality.

To maximize reliability, the Flea3 provides a unique set of features including on-camera power, temperature, and status monitoring; and in-field updatable firmware.

TypeChromaMega-
pixel
SensorReadoutResolutionFrame
rate
[fps]
Remark
FL3-U3-13E4C-CColor1.3e2v EV76C560Global shutter1280 × 102460
FL3-U3-13E4M-CMonochrome1.3e2v EV76C560Global shutter1280 × 102460
FL3-U3-20E4C-CColor2.0e2v EV76C5706FGlobal shutter1600 × 120059Discontinued!
FL3-U3-20E4M-CMonochrome2.0e2v EV76C5706FGlobal shutter1600 × 120059Discontinued!
FL3-U3-32S2C-CSColor3.2Sony IMX036Rolling shutter with global reset2080 × 155260
FL3-U3-32S2M-CSMonochrome3.2Sony IMX036Rolling shutter with global reset2080 × 155260

Version: 03-06-2022

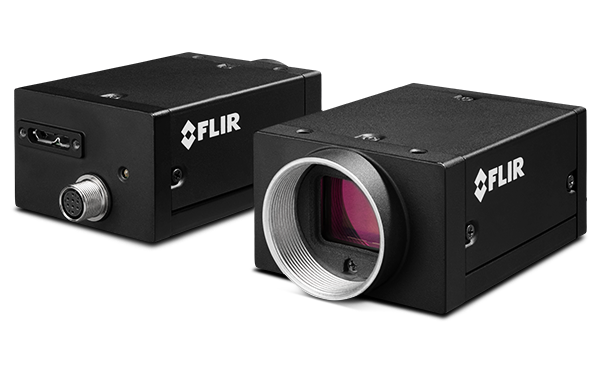

Grasshopper3 Series

The Grasshopper3 camera line provides high-performance, high-quality imaging by combining FLIR expertise with the latest in CCD and CMOS technology. The Grasshopper3 line leverages multi-tap Sony EXview HAD CCD II sensors, Sony Pregius™ global shutter CMOS, and offers unique low noise imaging modes important in scientific applications.

Supporting USB 3.1 and GigE with Power over Ethernet, these cameras are ideal for a wide variety of demanding applications including flat panel inspection, 3D measurement, ophthalmology, flow-scanning cytometry, and fluorescence imaging.

TypeChromaMega-
pixel
SensorReadoutResolutionFrame
rate
[fps]
Remark
GS3-U3-123S6C-CColor12.3Sony IMX253Global shutter4096 × 300030
GS3-U3-123S6M-CMonochrome12.3Sony IMX253Global shutter4096 × 300030
GS3-U3-23S6C-CColor2.3Sony IMX174Global shutter1920 × 1200163
GS3-U3-23S6M-CMonochrome2.3Sony IMX174Global shutter1920 × 1200163
GS3-U3-32S4C-CColor3.2Sony IMX252Global shutter2048 × 1536121
GS3-U3-32S4M-CMonochrome3.2Sony IMX252Global shutter2048 × 1536121
GS3-U3-41C6C-CColor4.1CMOSIS CMV4000-3E5 Global shutter2048 × 204890
GS3-U3-41C6M-CMonochrome4.1CMOSIS CMV4000-3E5 Global shutter2048 × 204890
GS3-U3-41C6NIR-CNIR4.1CMOSIS CMV4000-3E12Global shutter2048 × 204890
GS3-U3-51S5C-CColor5.0Sony IMX250Global shutter2448 × 204875
GS3-U3-51S5M-CMonochrome5.0Sony IMX250Global shutter2448 × 204875
GS3-U3-89S6C-CColor8.9Sony IMX255Global shutter4096 × 216043
GS3-U3-89S6M-CMonochrome8.9Sony IMX255Global shutter4096 × 216043
GS3-U3-14S5C-CColor1.4Sony ICX285Global shutter1384 × 103630Discontinued!
GS3-U3-14S5M-CMonochrome1.4Sony ICX285Global shutter1384 × 103630Discontinued!
GS3-U3-15S5C-CColor1.4Sony ICX825Global shutter1384 × 103245Discontinued!
GS3-U3-15S5M-CMonochrome1.4Sony ICX825Global shutter1384 × 103245Discontinued!
GS3-U3-28S4C-CColor2.8Sony ICX687Global shutter1928 × 144826Discontinued!
GS3-U3-28S4M-CMonochrome2.8Sony ICX687Global shutter1928 × 144826Discontinued!
GS3-U3-28S5C-CColor2.8Sony ICX674Global shutter1920 × 144026Discontinued!
GS3-U3-28S5M-CMonochrome2.8Sony ICX674Global shutter1920 × 144026Discontinued!
GS3-U3-41S4C-CColor4.1Sony ICX808 Global shutter2016 × 201618Discontinued!
GS3-U3-41S4M-CMonochrome4.1Sony ICX808 Global shutter2016 × 201618Discontinued!
GS3-U3-50S5C-CColor5.0Sony ICX625Global shutter2448 × 204815Discontinued!
GS3-U3-50S5M-CMonochrome5.0Sony ICX625Global shutter2448 × 204815Discontinued!
GS3-U3-91S6C-CColor9.1Sony ICX814Global shutter3376 × 27049Discontinued!
GS3-U3-91S6M-CMonochrome9.1Sony ICX814Global shutter3376 × 27049Discontinued!
GS3-U3-120S6C-CColor12Sony ICX834Global shutter4240 × 28247Discontinued!
GS3-U3-120S6M-CMonochrome12Sony ICX834Global shutter4240 × 28247Discontinued!

Version: 03-06-2022

Chameleon3 Series

The Chameleon3 camera line combines the ease-of-use of USB 3.1, the small size and flexibility of board-level, and the most popular CCD and CMOS image sensors into an affordable package. Available in a compact 44 x 35 x 19.5 mm case or as a 40 x 31 mm board stack, the Chameleon3 is well-suited to a wide range of space-constrained applications. The Chameleon3’s lightweight metal case is designed for reliability and offers multiple mounting points and a locking USB 3.1 connection.

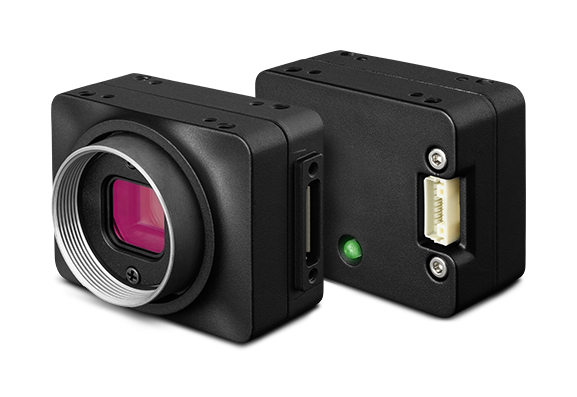

Chameleon3 USB Camera

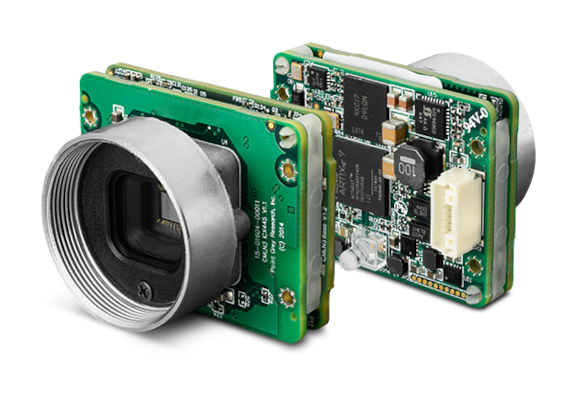

Chameleon3 Boardlevel Camera

The board-level version offers configuration flexibility and can be equipped with either a C/CS-mount lens holder or a smaller S-mount (M12) lens holder. Other standard features include an on-camera frame buffer for image retransmission, and opto-isolated GPIO with locking connection.

Its unique combination of form factors, ultra-compact size, low cost, and CCD and CMOS sensor selection, makes the Chameleon3 an ideal camera for a wide range of machine vision and scientific applications.

TypeChromaMega-
pixel
SensorReadoutResolutionFrame
rate
[fps]
CM3-U3-13Y3C-CSColor1.3ON Semi PHYTON 1300Global shutter1280 × 1024149
CM3-U3-13Y3M-CSMonochrome1.3ON Semi PYTHON 1300Global shutter1280 × 1024149
CM3-U3-13Y3C-S-BDColor1.3ON Semi PYTHON 1300Global shutter1280 × 1024149
CM3-U3-13Y3M-S-BDMonochrome1.3ON Semi PYTHON 1300Global shutter1280 × 1024149
CM3-U3-31S4C-CSColor3.2Sony IMX265Global shutter2048 × 153655
CM3-U3-31S4M-CSMonochrome3.2Sony IMX265Global shutter2048 × 153655
CM3-U3-50S5C-CSColor5.0Sony IMX264Global shutter2488 × 204835
CM3-U3-50S5M-CSMonochrome5.0Sony IMX264Global shutter2488 × 204835

Version: 02-17-2022

Firefly S Series

The FLIR Firefly® S offers the essential imaging capabilities you need into an ultra-compact body. Its small size, low power consumption and light weight make it ideal for embedding in portable devices. The Firefly S combines powerful camera functions with the latest CMOS sensors and therefore offers very good Price-performance ratio.

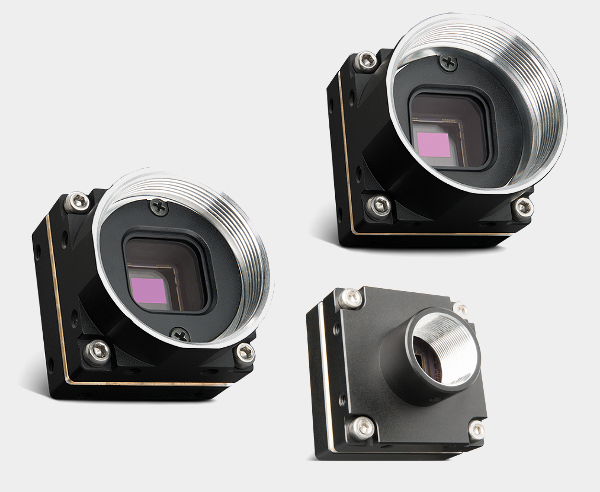

Firefly S with C, CS and S Mount

  • Small and light, low power consumption
    • Footprint: 27 mm × 27 mm × 14 mm
    • Weight: 20 grams
    • Power consumption: 2.2 W
    • Ideal for embedding in compact, handheld and portable devices
  • Core functions of machine vision
    • GPIO
    • Triggering
    • Partial modes

    Firefly DL – On-Camera Deep Learning

    Deep Learning is a powerful tool for system designers to quickly automate complex and subjective decision-making processes and increase product quality and productivity. Deploy your trained neural network with Neuro technology on the FLIR Firefly DL. Optimize system cost and complexity directly on the camera without a host PC. With its very small size, light weight and low power consumption, the Firefly DL camera is ideal for embedding in mobile, desktop and handheld systems.

    • Deep Learning for quick deployment and new possibilities
      • Fastly develop and implement accurate solutions to challenging automation problems with Deep Learning
    • On-camera Deep Learning inference: eliminates the need for a host system for classification tasks
      • Reduction of system costs and complexity
      • Deploying your trained network on a Firefly DL camera

    Please note: The suffix -DL indicates the Deep Learning functionality. Details can be found on the linked product detail page and the downloads available there.

TypeChromaMega-
pixel
SensorReadoutResolutionFrame
rate
[fps]
FFY-U3-04S2C-CColor0.4Sony IMX297Global shutter750 × 540120
FFY-U3-04S2M-CMonochrome0.4Sony IMX297Global shutter750 × 540121
FFY-U3-04S2C-CSColor0.4Sony IMX297Global shutter750 × 540120
FFY-U3-04S2M-CSMonochrome0.4Sony IMX297Global shutter750 × 540121
FFY-U3-04S2C-SColor0.4Sony IMX297Global shutter750 × 540120
FFY-U3-04S2M-SMonochrome0.4Sony IMX297Global shutter750 × 540121
FFY-U3-16S2C-CColor1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2C-C-DLColor1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2M-CMonochrome1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2M-C-DLMonochrome1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2C-CSColor1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2C-CS-DLColor1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2M-CSMonochrome1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2M-CS-DLMonochrome1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2C-SColor1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2C-S-DLColor1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2M-SMonochrome1.6Sony IMX296Global shutter1440 × 108060
FFY-U3-16S2M-S-DLMonochrome1.6Sony IMX296Global shutter1440 × 108060

Version: 02-23-2024

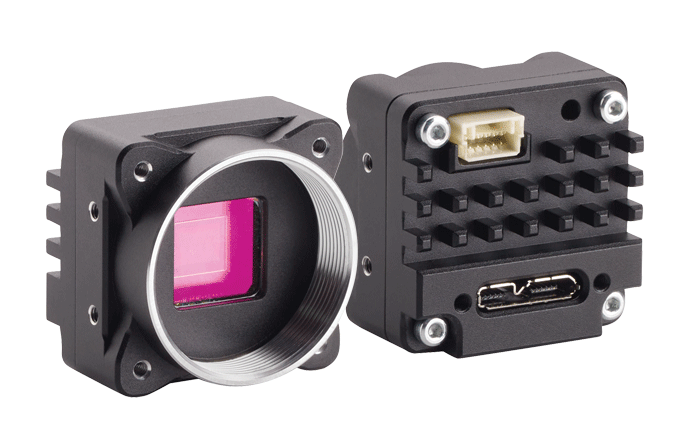

Dragonfly S Series

Dragonfly® S is the first practical option of its kind for industries ranging from life science instrumentation to factory automation. The modular, compact and lightweight design accelerates the early stages of imaging application development for large-scale manufacturing, volume-based applications and multi-camera systems. Combined with sensor options from Sony, onsemi and Teledyne e2v, Dragonfly® S is ideal for embedded or wearable device applications such as biometrics kiosk solutions, ophthalmoscopy, 3D scanning, automated optical inspection and more.

Flexible camera configurations

Platinum level models to fully enclosed models with lightweight aluminum housing. Side/rear USB3 ports with locking mechanism.

Compact and lightweight

Compact, lightweight design for handheld or embedded devices. Class B EMC safety compliance for enclosure models.

Reliable image transmission

Onboard image buffering ensures that every captured image is reliably transferred to the host CPU.

Most important features

  • Modular design
    • Accelerates the initial phase of image processing application development
  • Compact and lightweight
    • Ideal for embedded or wearable applications such as biometrics kiosk solutions, ophthalmoscopy, 3D scanning, automated optical inspection and more
  • Multiple configurations
    • From board level to a fully enclosed module for maximum flexibility and durability

Models

  • DR-U3-50Y2M-C1-CS, Mono
  • DR-U3-50Y2C-C1-CS, Color
  • DR-U3-50Y2M-C3-CS, Mono
  • DR-U3-50Y2C-C3-CS, Color
  • DR-U3-50Y2M-B1, Mono
  • DR-U3-50Y2C-B1, Color
  • DR-U3-50Y2M-B1-S, Mono
  • DR-U3-50Y2C-B1-S, Color

More information will be available soon. Meanwhile, if you are interested, take a look at the manufacturer's website for the specifications or contact us!


Here you can easily ask a question or inquiry about our products:

Product inquiry

Request for:


Last update: 2024-23-02
