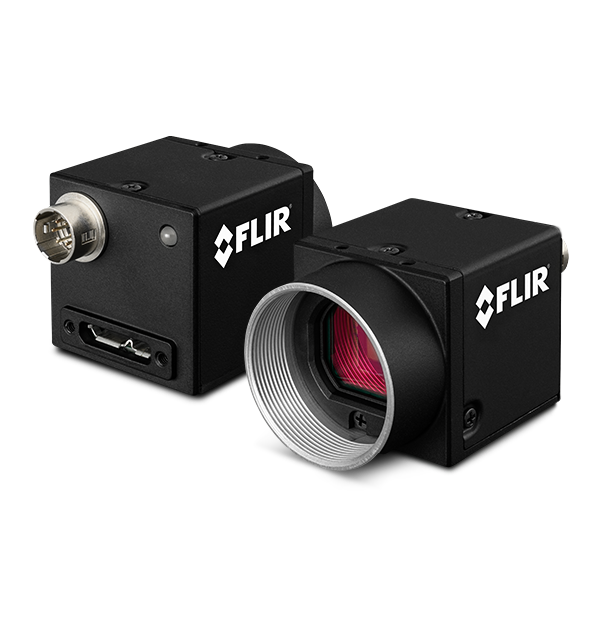

DescriptionUSB Camera by Teledyne FLIR
Articlenumber (Eureca):02.17.0030
Origin: Canada
Manufacturer: FLIR
Resolution1920 × 1200
Frame Rate41 fps
Megapixel2.3 MP
SensorSony IMX249
Sensor typeCMOS
ReadoutGlobal shutter
Sensor format1/1.2 ″
Pixel size5.86 µm
Lens mountC-Mount
ADC10-bit, 12-bit
InterfaceUSB 3.1 Gen 1
Power supply5–24 V via GPIO or 5 V via USB3
Dimension [mm]29 × 29 × 30
Weight36 g
Required AccessoriesLens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)
ComplianceCE, FCC, KCC, RoHS. ECCN: EAR099
Machine Vision StandardUSB3 Vision v1.0
Warranty3 years
Operating Humidity20–80 %
Operating Temperature0–45 °C
Storage Humidity20–95 %
Storage Temperature−30–60 °C
Image ProcessingGamma, lookup table, hue, saturation, and sharpness
Flash Memory1 MB non-volatile
Image Buffer16 MB
Trigger ModesStandard, bulb, overlapped, multi-shot
User Sets2 user configuration sets for custom camera settings
Exposure Range0.019 ms–3.9 s
Gain Range0–29.9 dB
Partial Image ModesPixel binning, decimation, ROI
Absolute Sensitivity Threshold (y)18.61 (Mode 0) / 9.36 (Mode 7)
Quantum Efficiency81 (Mode 0) / 82 (Mode 7) (525 nm) %
Saturation Capacity33489 (Mode 0) / 33676 (Mode 7) e
Temporal Dark Noise14.25 (Mode 0) / 6.97 (Mode 7) e
Dynamic range67.12 (Mode 0) / 73.08 (Mode 7) dB
Auxiliary Output3.3 V, 120 mA max
I/O (opto-isolated)1 input, 1 output
System PortUSB 3 Port
Operating SystemWindows or Linux (32–bit or 64–bit)
CPU3.1 GHz

Blackfly C mount GigE

To the product series

The Blackfly® camera line combines Sony CCD, Aptina, e2v, and Sharp sensors with a host of unique features.

For this camera model Eureca offers many accessories as for example:

Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!

Documents for download:

EMVA Imaging Performance Specifications
Technical Reference
Getting started with USB cameras of the Blackfly series
Machine Vision Camera Register Reference
Dimensional Drawings

Other versions of the article and matching products:

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
