| Description | USB Camera by Teledyne FLIR |
| Articlenumber (Eureca): | 02.17.0266 |
| Origin: | Canada |
| Manufacturer: | FLIR |
| Resolution | 1936 × 1464 |
| Frame Rate | 130 fps |
| Megapixel | 2.8 MP |
| Chroma | Monochrome |
| Sensor | Sony IMX421 |
| Sensor type | CMOS |
| Readout | Global Shutter |
| Sensor format | 2/3 ″ |
| Pixel size | 4.5 µm |
| Lens mount | C-Mount |
| ADC | 12-bit |
| Interface | USB 3.1 Gen 1 |
| Power supply | 8–24 V via GPIO or 5 V via USB3 |
| Dimension [mm] | 29 × 29 × 30 |
| Weight | 36 g |
| Required Accessories | Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0016) |
| Compliance | CE, FCC, KCC, RoHS. ECCN: EAR099 |
| Machine Vision Standard | USB3 Vision v1.0 |
| Warranty | 3 years |
| Operating Humidity | 20–80 % |
| Operating Temperature | 0–50 °C |
| Storage Humidity | 30–95 % |
| Storage Temperature | −30–60 °C |
| Image Processing | Gamma, lookup table, and sharpness |
| Flash Memory | 6 MB non-volatile |
| Image Buffer | 240 MB |
| User Sets | 2 user configuration sets for custom camera settings |
| Exposure Range | 10 µs–30 s |
| Gain Range | 0–47 dB |
| Partial Image Modes | Pixel binning, decimation, ROI |
| Absolute Sensitivity Threshold (y) | 4.16 (HCG) / 8.44 (LCG) |
| Quantum Efficiency | 76 (HCG) / 77 (LCG) (530 nm) % |
| Saturation Capacity | 10940 (HCG) / 25219 (LCG) e− |
| Temporal Dark Noise | 2.65 (HCG) / 6.03 (LCG) e− |
| Dynamic range | 70.81 (HCG) / 71.73 (LCG) dB |
| Auxiliary Output | 3.3 V, 120 mA max |
| I/O (non-isolated) | 1 bi-directional, 1 input |
| I/O (opto-isolated) | 1 input, 1 output |
| HDD | 200 MB |
| System Port | USB 3 Port |
| Operating System | Windows or Linux (32–bit or 64–bit) |
| CPU | 3.1 GHz or equivalent |

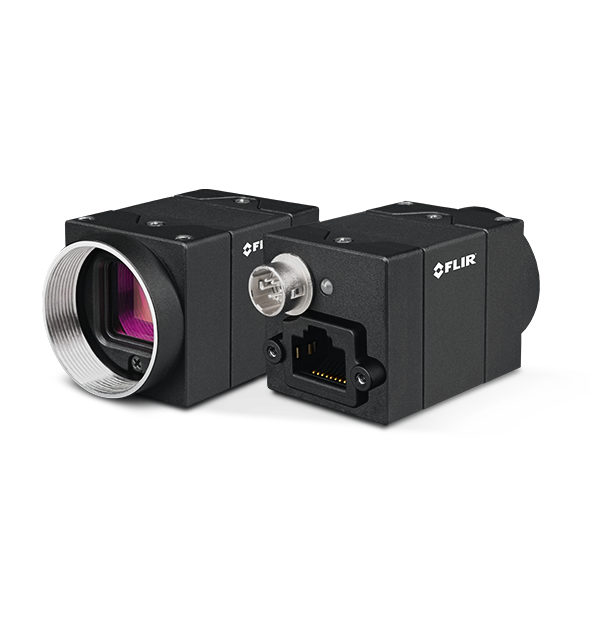

Blackfly S C mount GigE
The Blackfly S models utilize the most advanced sensors in an ice cube form factor. Its powerful features give you everything you need to easily create the exact images you need, speeding up your application development:
On-camera features such as IEEE1588 clock synchronization and full compatibility with popular third-party software supporting GigE Vision give system designers the tools to rapidly develop innovative solutions. Lossless compression (LLC) GigE models are also available with higher maximum frame rates and lower bandwidth requirements, maximizing output without sacrificing image quality.
For this camera model Eureca offers many accessories as for example:
Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!
Documents for download:
Datasheet
Technical Reference
EMVA Imaging Performance Specifications
Getting started with USB cameras of the Blackfly series
BFS Installation Guide
Technical Drawings
Machine Vision Camera Register Reference
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
