| Description | Camera by Teledyne FLIR |
| Articlenumber (Eureca): | 02.17.0038 |
| Origin: | Canada |
| Manufacturer: | FLIR |
| Resolution | 1920 × 1200 |
| Frame Rate | 163 fps |
| Megapixel | 2.3 MP |
| Chroma | Monochrome |
| Sensor | Sony IMX174 |
| Sensor type | CMOS |
| Readout | Global shutter |
| Sensor format | 1/1.2 ″ |
| Pixel size | 5.86 µm |
| Lens mount | C-Mount |
| ADC | 10-bit, 12-bit |
| Interface | USB 3.1 Gen 1 |
| Power supply | 5 V via USB3 or 8–24 V via GPIO (external power is recommended for this model) |
| Dimension [mm] | 44 × 29 × 58 |
| Weight | 90 g |
| Required Accessories | Lens, Cable, Host Adapter (USB 3.1 Gen 1) |
| Compliance | CE, FCC, KCC, RoHS. ECCN: EAR099 |
| Machine Vision Standard | USB3 Vision v1.0 |
| Warranty | 3 years |
| Operating Humidity | 20–80 % |
| Operating Temperature | 0–50 °C |
| Storage Humidity | 20–95 % |
| Storage Temperature | −30–60 °C |
| Image Processing | Gamma, lookup table, hue, saturation, and sharpness |
| Flash Memory | 2 MB non-volatile |
| Image Buffer | 128 MB |
| Trigger Modes | Standard, bulb, overlapped, multi-shot |
| User Sets | 2 user configuration sets for custom camera settings |
| Exposure Range | 0.005 ms–31.9 s |
| Gain Range | 0–29 dB |
| Partial Image Modes | Pixel binning, ROI |
| Absolute Sensitivity Threshold (y) | 10.72 |
| Saturation Capacity | 33022 e− |
| Temporal Dark Noise | 7.02 e− |
| Dynamic range | 67.71 dB |
| Auxiliary Output | 3.3 V, 150 mA max |
| I/O (non-isolated) | 2 bi-directional |
| I/O (opto-isolated) | 1 input, 1 output |
| HDD | 200 MB |
| System Port | USB 3 Port |
| Operating System | Windows or Linux (32–bit or 64–bit) |
| CPU | 3.1 GHz or equivalent |

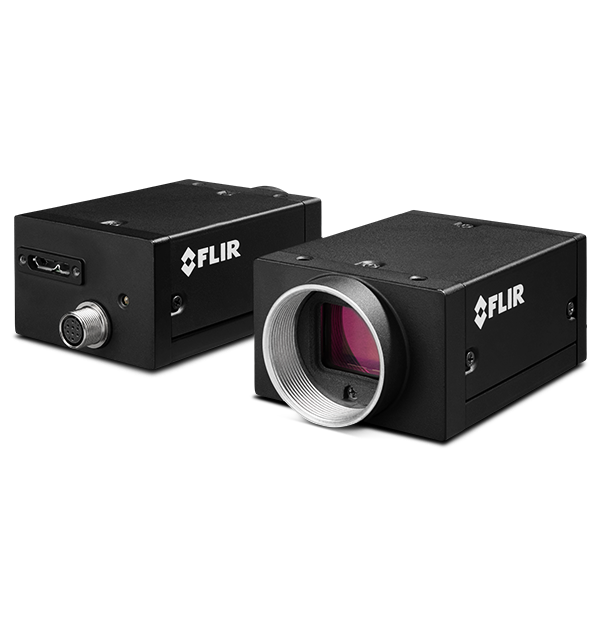

Grashopper3 USB
For this camera model Eureca offers many accessories as for example:
Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!
Documents for download:
Datasheet of the series
EMVA Imaging Performance Specifications
Technical reference
Getting started with USB cameras of the Grasshopper3 series
Technical Drawings
Machine Vision Camera Register Reference
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
