DescriptionUSB Camera by Teledyne FLIR
Articlenumber (Eureca):02.17.0358
Origin: Canada
Manufacturer: FLIR
Resolution750 × 540
Frame Rate120 fps
Megapixel0.4 MP
SensorSony IMX297
Sensor typeCMOS
ReadoutGlobal shutter
Sensor format1/2.9 ″
Pixel size6.9 µm
Lens mountCS-Mount
InterfaceUSB 3.1 Gen 1
Power supply5 V via USB3.1
Dimension [mm]27 × 27 × 14.5
Weight20 g
ComplianceCE, FCC, KCC, RoHS, REACH. ECCN: EAR099
Machine Vision StandardUSB3 Vision v1.0
Operating Humidity20–80 %
Operating Temperature0–85 (case) °C
Storage Humidity20–95 %
Storage Temperature−30–60 °C
Image ProcessingGamma, lookup table, denoise, and sharpness
Flash Memory24 MB non-volatile
Image Buffer32 MB
User Sets2 user configuration sets for custom camera settings
Exposure Range29 µs–30 s
Gain Range0–48 dB
Partial Image ModesROI
Absolute Sensitivity Threshold (y)8.18
Quantum Efficiency Blue47.31 (470 nm) %
Quantum Efficiency Green57.17 (525 nm) %
Quantum Efficiency Red44.78 (630 nm) %
Saturation Capacity21014 e
Temporal Dark Noise7.68 e
Dynamic range68.20 dB
Auxiliary Output3.3 V, 120 mA max
I/O (non-isolated)4 bi-directional
System PortUSB 3 Port
Operating SystemWindows or Linux (32–bit or 64–bit)
CPU3.1 GHz

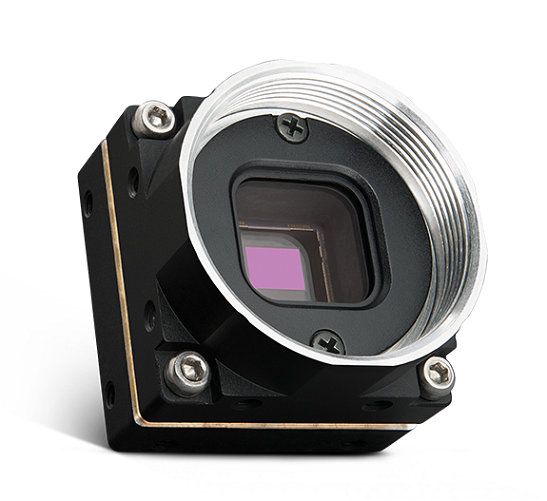

Firefly S CS mount USB3

To the product series

The FLIR Firefly® S offers the essential imaging capabilities you need into an ultra-compact body. Its small size, low power consumption and light weight make it ideal for embedding in portable devices. The Firefly S combines powerful camera functions with the latest CMOS sensors and therefore offers very good Price-performance ratio.

For this camera model Eureca offers many accessories as for example:

Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!

Documents for download:

Technical Reference
EMVA Imaging Performance Specifications
FFY Installation Guide
Getting Started
Technical Drawings
Machine Vision Camera Register Reference

Other versions of the article and matching products:

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 02.21.2022
