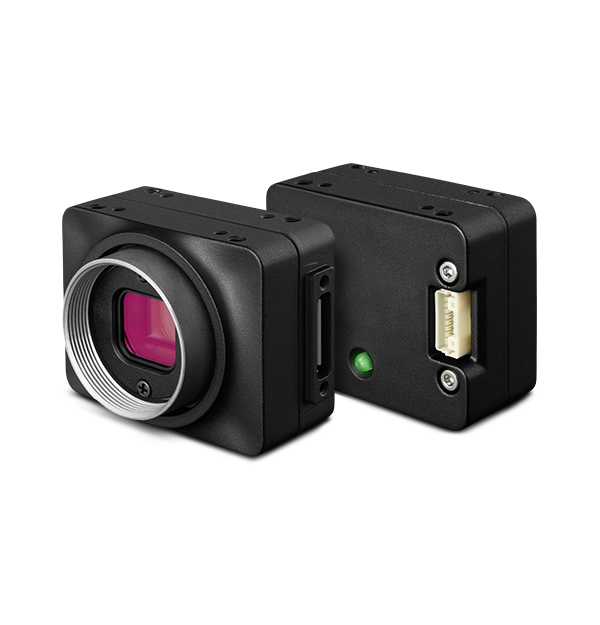

CM3-U3-50S5M-CS

DescriptionCamera by FLIR (PointGrey)
Articlenumber (Eureca):02.17.0079
Origin: USA
Manufacturer: FLIR
Resolution2488 × 2048
Frame Rate35 fps
Megapixel5.0 MP
ChromaMonochrome
SensorSony IMX264
Sensor typeCMOS
ReadoutGlobal shutter
Sensor format2/3 "
Pixel size3.45 µm
Lens mountCS-Mount (5 mm C-Mount adapter not included)
ADC12-bit
InterfaceUSB 3.1 Gen 1
Power supply5–24 V via GPIO or 5 V via USB3
Dimension [mm]44 × 35 × 19.5 (case enclosed) mm
Weight54.9 g
Required AccessoriesLens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)
ComplianceCE, FCC, KCC, RoHS. ECCN: EAR099
Machine Vision StandardUSB3 Vision v1.0
Warranty3
Operating Humidity20–80
Operating Temperature0–45
Storage Humidity20–95
Storage Temperature−30–60
Image ProcessingGamma, lookup table, hue, saturation, and sharpness
Flash Memory1 MB non-volatile
Image Buffer16 MB
Trigger ModesStandard, bulb, overlapped, multi-shot
User Sets2 memory channels for custom camera settings
Exposure Range0.013 ms–31.995 s
Gain Range0–48 dB
Partial Image ModesPixel binning, decimation, ROI
Absolute Sensitivity Threshold (y)4.03
Saturation Capacity9869 e
Temporal Dark Noise2.29 e
Dynamic range70.97 dB
Auxiliary Output3.3 V, 150 mA max
I/O (non-isolated)2 bi-directional
I/O (opto-isolated)1 in, 1 out
HDD200 MB
MountUSB 3 Port
Operating SystemWindows or Linux (32–bit or 64–bit)
CPU3.1 GHz or equivalent

To the product series

For this camera model Eureca offers many accessories as for example:

Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!






Documents for download:

Datasheet
Register reference
Technical reference



Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 06.03.2020
