| Description | USB Camera by Teledyne FLIR |
| Articlenumber (Eureca): | 02.17.0015 |
| Origin: | Canada |
| Manufacturer: | FLIR |
| Resolution | 2048 × 1536 |
| Frame Rate | 118 fps |
| Megapixel | 3.2 MP |
| Chroma | Color |
| Sensor | Sony IMX252 |
| Sensor type | CMOS |
| Readout | Global shutter |
| Sensor format | 1/1.8 ″ |
| Pixel size | 3.45 µm |
| Lens mount | C-Mount |
| ADC | 10 bit, 12-bit |
| Interface | USB 3.1 Gen 1 |
| Power supply | 8–24 V via GPIO or 5 V via USB3 |
| Dimension [mm] | 29 × 29 × 30 |
| Weight | 36 g |
| Required Accessories | Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003) |
| Compliance | CE, FCC, KCC, RoHS. ECCN: EAR099 |
| Machine Vision Standard | USB3 Vision v1.0 |
| Warranty | 3 years |
| Operating Humidity | 20–80 % |
| Operating Temperature | 0–50 °C |
| Storage Humidity | 30–95 % |
| Storage Temperature | −30–60 °C |
| Image Processing | Color correction matri×, gamma, lookup table, saturation, and sharpness |
| Flash Memory | 6 MB non-volatile |
| Image Buffer | 240 MB |
| User Sets | 2 user configuration sets for custom camera settings |
| Exposure Range | 5 µs–30 s |
| Gain Range | 0–47 dB |
| Partial Image Modes | Pixel binning, decimation, ROI |
| Absolute Sensitivity Threshold (y) | 4.72 |
| Quantum Efficiency Blue | 49.52 (460 nm) % |
| Quantum Efficiency Green | 59.66 (530 nm) % |
| Quantum Efficiency Red | 47.02 (625 nm) % |
| Saturation Capacity | 10725 e− |
| Temporal Dark Noise | 2.31 e− |
| Dynamic range | 71.62 dB |
| Auxiliary Output | 3.3 V, 120 mA max |
| I/O (non-isolated) | 1 bi-directional, 1 input |
| I/O (opto-isolated) | 1 input, 1 output |
| HDD | 200 MB |
| System Port | USB 3 Port |
| Operating System | Windows or Linux (32–bit or 64–bit) |
| CPU | 3.1 GHz or equivalent |

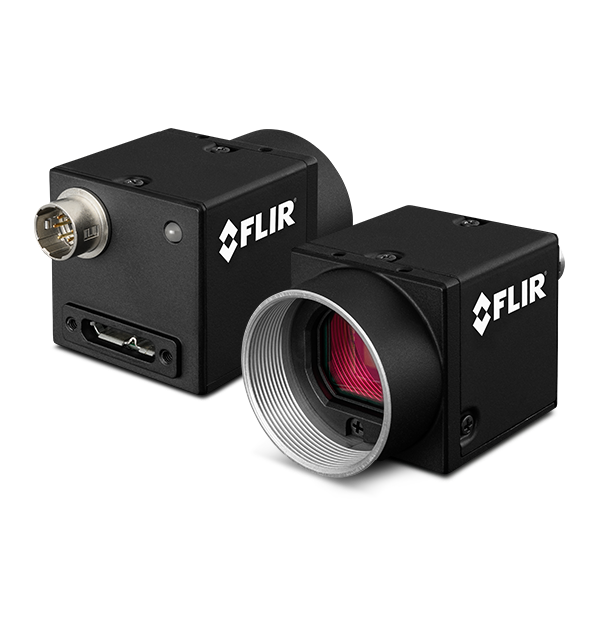

Blackfly S C mount USB3
The Blackfly® S utilizes the industry's most advanced sensors in an ice cube form factor. It's packed with powerful features that make it easy to create the exact images you need and speed up your application development. This includes both automatic and precise manual control of image acquisition and in-camera pre-processing.
For this camera model Eureca offers many accessories as for example:
Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!
Documents for download:
Datasheet
Technical Reference
EMVA Imaging Performance Specifications
Getting started with USB cameras of the Blackfly series
BFS Installation Guide
Technical Drawings
Machine Vision Camera Register Reference
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
