BFS-U3-13Y3C-C

DescriptionUSB Camera
Articlenumber (Eureca):02.17.0013
Origin: USA
Manufacturer: FLIR
Resolution1280 × 1024
Frame Rate170 fps
Megapixel1.3 MP
ChromaColour
SensorOn Semi PHYTON 1300
Sensor typeCMOS
ReadoutGlobal shutter
Sensor format1/2 "
Pixel size4.8 µm
Lens mountC-Mount
ADC10-bit
InterfaceUSB 3.1 Gen 1
Power supply8–24 V via GPIO or 5 V via USB3
Dimension [mm]29 × 29 × 30 mm
Weight36 g
Required AccessoriesLens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)
ComplianceCE, FCC, KCC, RoHS. ECCN: EAR099
Machine Vision StandardUSB3 Vision v1.0
Warranty3
Operating Humidity20–80
Operating Temperature0–50
Storage Humidity30–95
Storage Temperature−30–60
Image ProcessingColor correction matri×, gamma, lookup table, saturation, and sharpness
Flash Memory6 MB non-volatile
Image Buffer240 MB
User Sets2 user configuration sets for custom camera settings
Exposure Range6 µs–30 s
Gain Range0–18 dB
Partial Image ModesPixel binning, decimation, ROI
Absolute Sensitivity Threshold (y)25.97
Quantum Efficiency Blue36.9 (460 nm) %
Quantum Efficiency Green38.3 (530 nm) %
Quantum Efficiency Red36.34 (625 nm) %
Saturation Capacity5808 e
Temporal Dark Noise9.45 e
Dynamic range55.33 dB
Auxiliary Output3.3 V, 120 mA max
I/O (non-isolated)1 bi-directional, 1 in
I/O (opto-isolated)1 in, 1 out
HDD200 MB
MountUSB 3 Port
Operating SystemWindows or Linux (32–bit or 64–bit)
CPU3.1 GHz or equivalent

To the product series

For this camera model Eureca offers many accessories as for example:

Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!






Documents for download:

Datasheet
Technical reference
Installation guide for cameras of the Blackfly series
Getting started with USB cameras of the Blackfly series

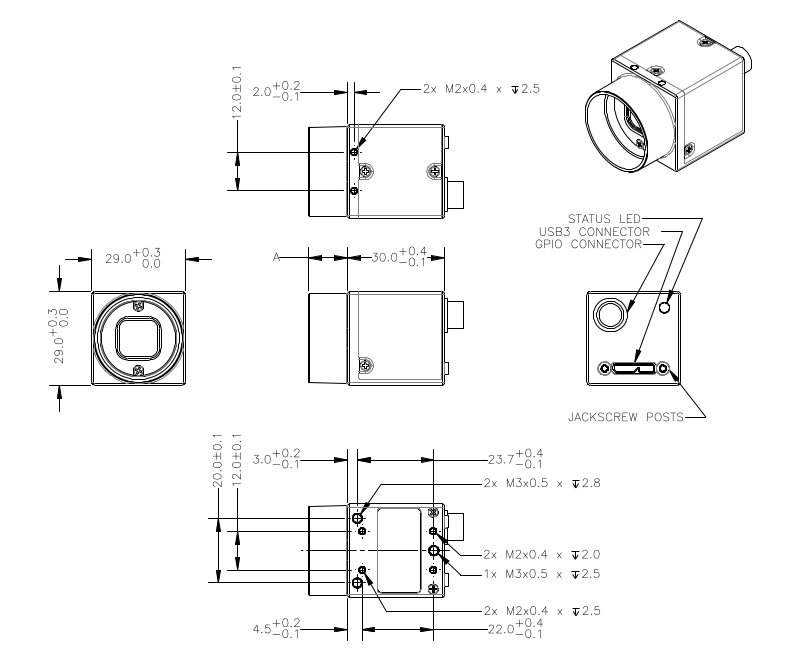

Dimensions of the camera



Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 06.03.2020
