OPT Ring Lights

Ring lights from the Chinese manufacturer OPT Machine Vision are available in different versions.

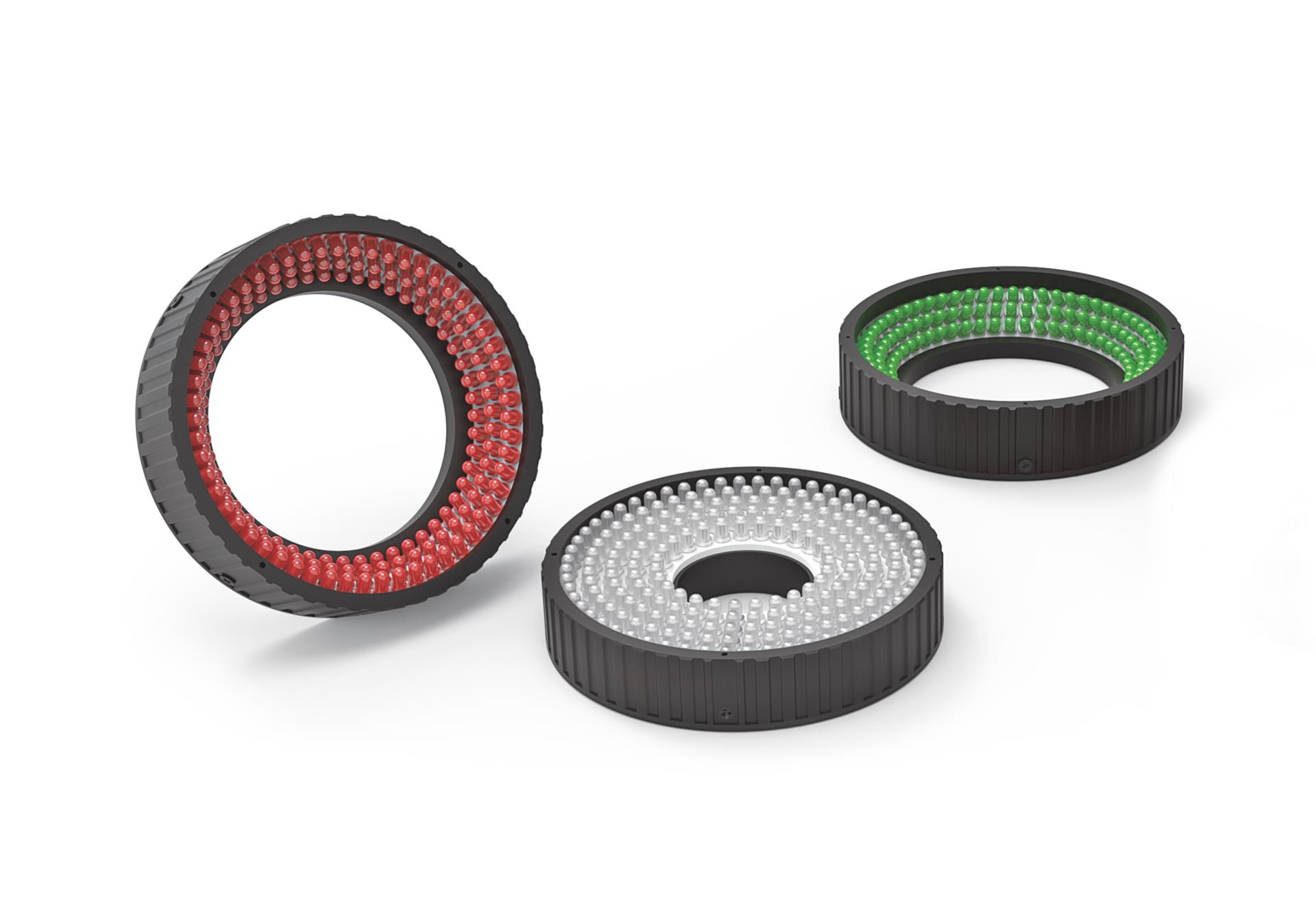

Ring Lights OPT-RI Series

Product Features

  • Providing extreme bright, uniform and diffuse illumination with different emitting angles
  • Profile design with expanded heating dissipation area for improving heading design

Group photo series

Application Cases

  • PCB and plastic containers inspection
  • Electronic components inspection; OCR for integrated circuits
  • Microscope illumination; surface inspection

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBAngle [°]Controller
OPT-RI280024V / 0.2W24V / 0.5W0OPT-DPA1024E, OPT-DPA2024E
OPT-RI350024V / 0.7W24V / 1.4W0OPT-DPA1024E, OPT-DPA2024E
OPT-RI500024V / 0.7W24V / 1.9W0OPT-DPA1024E, OPT-DPA2024E
OPT-RI700024V / 1.4W24V / 3.2W0OPT-DPA1024E, OPT-DPA2024E
OPT-RI900024V / 3.5W24V / 6.2W0OPT-DPA1024E, OPT-DPA2024E
OPT-RI1200024V / 3.4W24V / 8W0OPT-DPA1024E, OPT-DPA2024E
OPT-RI1500024V / 7W24V / 18W0OPT-DPA1024E, OPT-DPA2024E
OPT-RI501524V / 1.4W24V / 3W15OPT-DPA1024E, OPT-DPA2024E
OPT-RI691524V / 2.7W24V / 3.8W15OPT-DPA1024E, OPT-DPA2024E
OPT-RI921524V / 2.1W24V / 4.7W15OPT-DPA1024E, OPT-DPA2024E
OPT-RI1001524V / 4.4W24V / 7.6W15OPT-DPA1024E, OPT-DPA2024E
OPT-RI322024V / 0.7W24V / 0.8W20OPT-DPA1024E, OPT-DPA2024E
OPT-RI282524V / 0.2W24V / 0.5W25OPT-DPA1024E, OPT-DPA2024E
OPT-RI422524V / 0.4W24V / 1.2W25OPT-DPA1024E, OPT-DPA2024E
OPT-RI503024V / 0.6W24V / 1.7W30OPT-DPA1024E, OPT-DPA2024E
OPT-RI703024V / 1.3W24V / 3.1W30OPT-DPA1024E, OPT-DPA2024E
OPT-RI903024V / 2.3W24V / 5.3W30OPT-DPA1024E, OPT-DPA2024E
OPT-RI1203024V / 3.8W24V / 11W30OPT-DPA1024E, OPT-DPA2024E
OPT-RI1503024V / 4.3W24V / 10W30OPT-DPA1024E, OPT-DPA2024E
OPT-RI1803024V / 10W24V / 18.5W30OPT-DPA1024E, OPT-DPA2024E
OPT-RI504524V / 0.9W24V / 2.3W45OPT-DPA1024E, OPT-DPA2024E
OPT-RI704524V / 1.5W24V / 4.2W45OPT-DPA1024E, OPT-DPA2024E
OPT-RI904524V / 1.9W24V / 4.8W45OPT-DPA1024E, OPT-DPA2024E
OPT-RI1204524V / 3.5W24V / 8W45OPT-DPA1024E, OPT-DPA2024E
OPT-RI1504524V / 4.6W24V / 11.3W45OPT-DPA1024E, OPT-DPA2024E
OPT-RI706024V / 1.6W24V / 3.8W60OPT-DPA1024E, OPT-DPA2024E
OPT-RI906024V / 1.9W24V / 4.8W60OPT-DPA1024E, OPT-DPA2024E
OPT-RI1206024V / 4W24V / 10.4W60OPT-DPA1024E, OPT-DPA2024E
OPT-RI1506024V / 4.4W24V / 11W60OPT-DPA1024E, OPT-DPA2024E
OPT-RI1806024V / 5.5W24V / 13W60OPT-DPA1024E, OPT-DPA2024E
OPT-RI2727024V / 3.6W24V / 6.8W70OPT-DPA1024E, OPT-DPA2024E
OPT-RI508024V / 1.2W24V / 1.6W80OPT-DPA1024E, OPT-DPA2024E
OPT-RI1008024V / 1.7W24V / 3.9W80OPT-DPA1024E, OPT-DPA2024E
OPT-RI1208024V / 5.3W24V / 8.1W80OPT-DPA1024E, OPT-DPA2024E
OPT-RI2728024V / 6W24V / 11W80OPT-DPA1024E, OPT-DPA2024E
OPT-RI509024V / 0.5W24V / 0.8W90OPT-DPA1024E, OPT-DPA2024E
OPT-RI709024V / 0.4W24V / 1.3W90OPT-DPA1024E, OPT-DPA2024E
OPT-RI909024V / 0.8W24V / 1.3W90OPT-DPA1024E, OPT-DPA2024E
OPT-RI1209024V / 1.8W24V / 2W90OPT-DPA1024E, OPT-DPA2024E
OPT-RI1509024V / 2W24V / 2.9W90OPT-DPA1024E, OPT-DPA2024E
OPT-RI1809024V / 1.4W24V / 3.1W 90OPT-DPA1024E, OPT-DPA2024E

Version: 09-29-2020

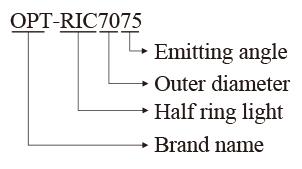

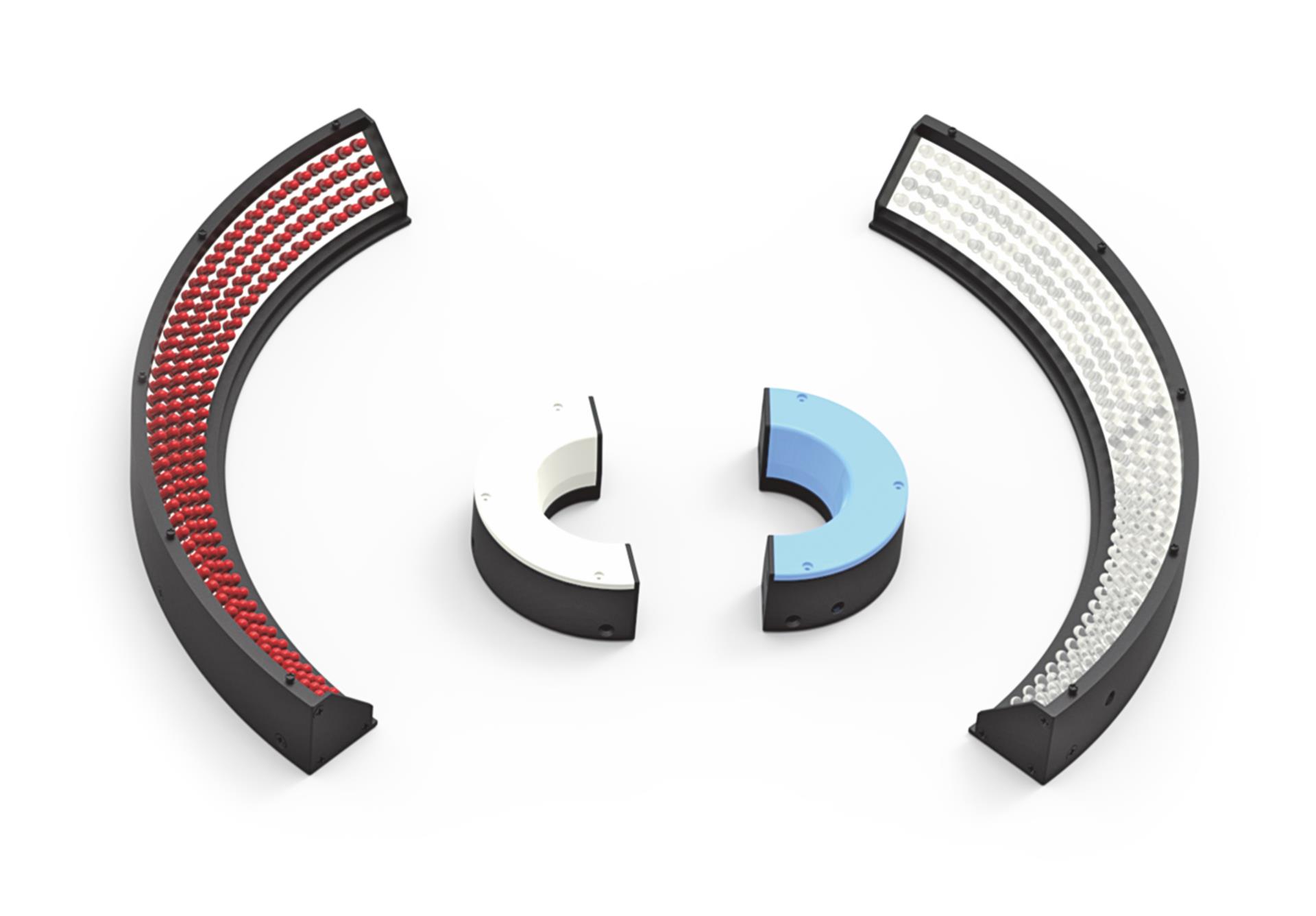

Half Ring Lights OPT-RIC Series

Product Features

  • Suitable for oval objects inspection
  • Increased intensity and uniformity with compact LED arrays
  • Can be used individually or together to provide ultra-low angle illumination

Group photo series

Application Cases

  • Gauging for curved objects
  • Inspection for reflective surfaces

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-RIC707524V / 0.9W24V / 1.3WOPT-DPA1024E, OPT-DPA2024E
OPT-RIC904524V / 0.4W24V / 2.1WOPT-DPA1024E, OPT-DPA2024E
OPT-RIC1209024V / 1.9W24V / 2.4WOPT-DPA1024E, OPT-DPA2024E
OPT-RIC2409024V / 3.6W24V / 4.2WOPT-DPA1024E, OPT-DPA2024E
OPT-RIC3004524V / 3.8W24V / 7.1WOPT-DPA1024E, OPT-DPA2024E

Version: 09-29-2020

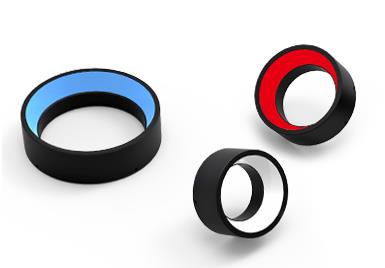

Diffuse Dark Field Ring Lights OPT-RIF Series

Product Features

  • Suitable for large round and small irregular objects
  • Higher uniformity compared with OPT-RI series ring lights
  • Providing uniform and shadowless illumination
  • Suitable for multiple applications at different working distances

Group photo series

Application Cases

  • Surface defects detection
  • Recognition of characters,logos, barcodes and fingerprints

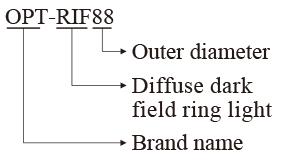

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-RIF7824V / 1.7W24V / 3.6WOPT-DPA1024E, OPT-DPA2024E
OPT-RIF8824V / 2.6W24V / 4.1WOPT-DPA1024E, OPT-DPA2024E
OPT-RIF13024V / 3.3W24V / 6.4WOPT-DPA1024E, OPT-DPA2024E
OPT-RIF16024V / 5.8W24V / 7.9WOPT-DPA1024E, OPT-DPA2024E

Version: 09-29-2020

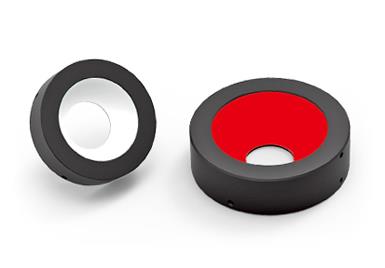

Diffuse Ring Lights OPT-RIE Series

Product Features

  • Higher uniformity than OPT-RI series ring lights
  • Providing uniform illumination for rough surfaces, eliminate flare, and highlight the 3D information
  • Equipped with special diffuser to reduce reflection and allow uniform illumination

Group photo series

Application Cases

  • Positioning and gauging for metal parts
  • Surface defects detection

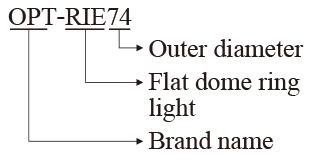

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-RIE5024V / 0.9W24V / 0.9WOPT-DPA1024E, OPT-DPA2024E
OPT-RIE7424V / 1.8W24V / 3.4WOPT-DPA1024E, OPT-DPA2024E
OPT-RIE10024V / 3.5W24V / 4.9WOPT-DPA1024E, OPT-DPA2024E
OPT-RIE15024V / 5W24V / 8.8WOPT-DPA1024E, OPT-DPA2024E

Version: 09-29-2020

Diffuse Ring Lights OPT-RIW Series

Product Features

  • Providing uniform illumination for multi-slope objects and eliminate the differences that caused by the different reflection angles.
  • Equipped with special diffuser to ensure diffuse and uniform illumination

Group photo series

Application Cases

  • Inspection of electronic parts
  • Parts alignment
  • Recognition of characters and patterns on surfaces
  • Geometric measurement

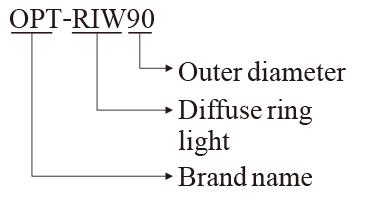

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-RIW7024V / 0.6W24V / 1.1WOPT-DPA1024E, OPT-DPA2024E
OPT-RIW9024V / 0.8W24V / 2.4WOPT-DPA1024E, OPT-DPA2024E
OPT-RIW12024V / 1.3W24V / 2.6WOPT-DPA1024E, OPT-DPA2024E

Version: 09-29-2020

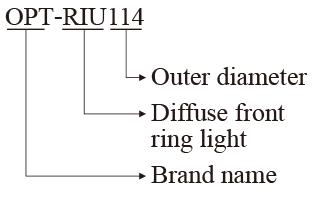

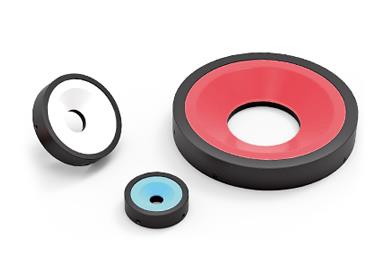

Diffuse Front Ring Lights OPT-RIU Series

Product Features

  • Removing reflections formed by complex small objects effectively
  • Special diffuser for uniform and shadowless illumination

Group photo series

Application Cases

  • Inspection of characters and patterns on reflective surfaces
  • Inspection of electronic parts and glass products
  • Inspection of stampling parts
  • Inspection of injection molding parts

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-RIU8024V / 0.8W24V / 1.5WOPT-DPA1024E, OPT-DPA2024E
OPT-RIU11424V / 1.6W24V / 2.8WOPT-DPA1024E, OPT-DPA2024E
OPT-RIU15024V / 1.2W24V / 3.6WOPT-DPA1024E, OPT-DPA2024E

Version: 09-29-2020

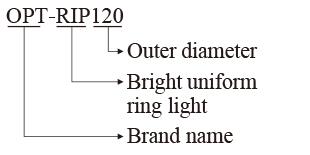

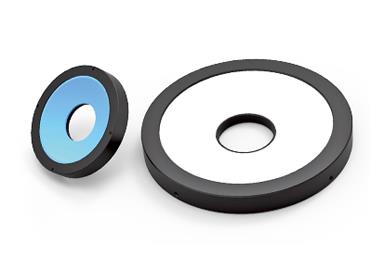

Bright Uniform Ring Lights OPT-RIP Series

Product Features

  • Providing high-intensity and shadowless illumination with the high-power SMD LEDs and high-uniformity diffuser

Group photo series

Application Cases

  • Surface inspection of electronic components
  • Dirt detection on cylindrical inner surfaces

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-RIP12024V / 9.9W24V / 8.8WOPT-DPA1024E, OPT-DPA2024E
OPT-RIP18024V / 26.0W24V / 18.8WOPT-DPA2024E
OPT-RIP24524V / 28.8WOPT-DPA2024E

Version: 09-29-2020

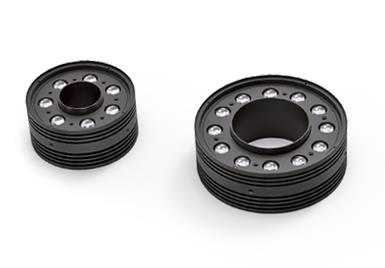

High Intensity Ring Lights OPT-RIG Series

Product Features

  • High density LED arrays and special lens design, brightness is more than 2 times higher than OPT-RI series ring lights.
  • Suitable for special illumination requirements

Group photo series

Application Cases

  • Longer distance illumination (compared with OPT-RI series)
  • Illumination for high spped production line

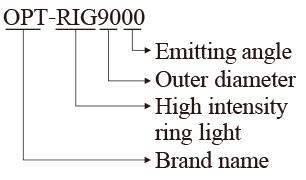

Selection guide

The lights are each available in three colour versions: -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput WGBController
OPT-RIG900024V / 7WOPT-AP1024F, OPT-DPA2024E
OPT-RIG1200024V / 14.4WOPT-AP1024F, OPT-DPA2024E

Version: 09-29-2020
