OPT-RIP180

DescriptionBright Uniform Ring Lights OPT-RIP by OPT
Articlenumber (Eureca):09.03.0261
Origin: China
Manufacturer: OPT
Output R24V / 26.0W
Output WGB24V / 18.8W
Recommended ControllerOPT-DPA2024E

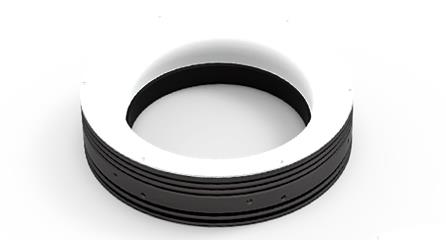

Example photo white light

To the product series

Product Features

  • Providing high-intensity and shadowless illumination with the high-power SMD LEDs and high-uniformity diffuser

Application Cases

  • Surface inspection of electronic components
  • Dirt detection on cylindrical inner surfaces



Please choose out of four available colour versions: -R, -W, -G, -B.



Documents for download:

2D Drawing of the Lighting
Series Catalogue with full details



More pictures of the product:

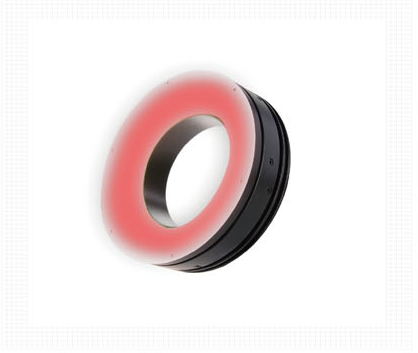

Example photo red light

Example photo red light

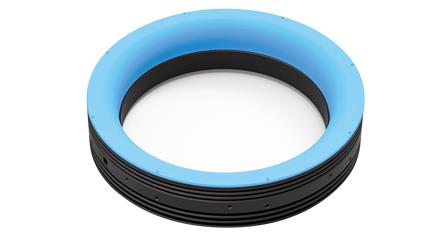

Example photo blue light

Example photo blue light

Example photo green light

Example photo green light

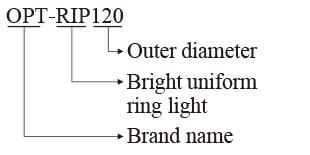

Selection Guide

Selection Guide

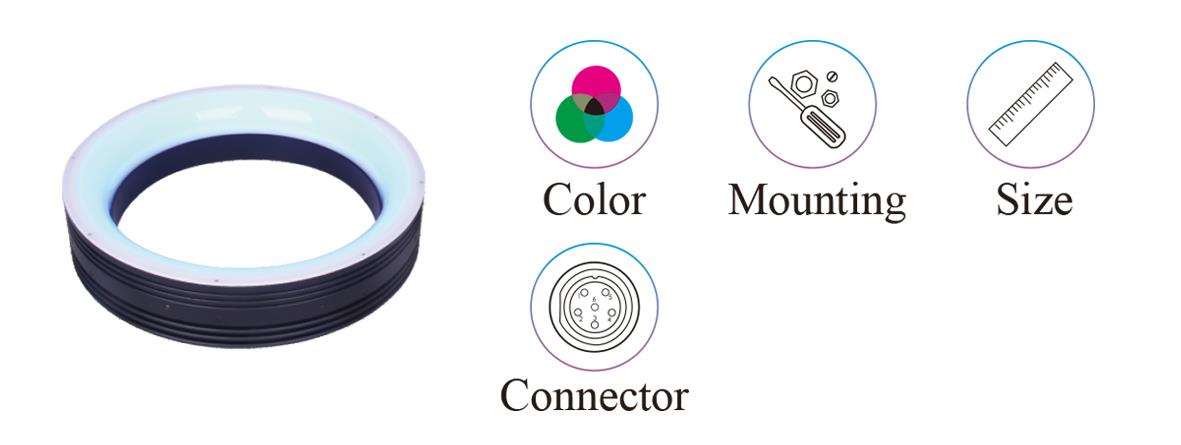

Customizable Items

Customizable Items

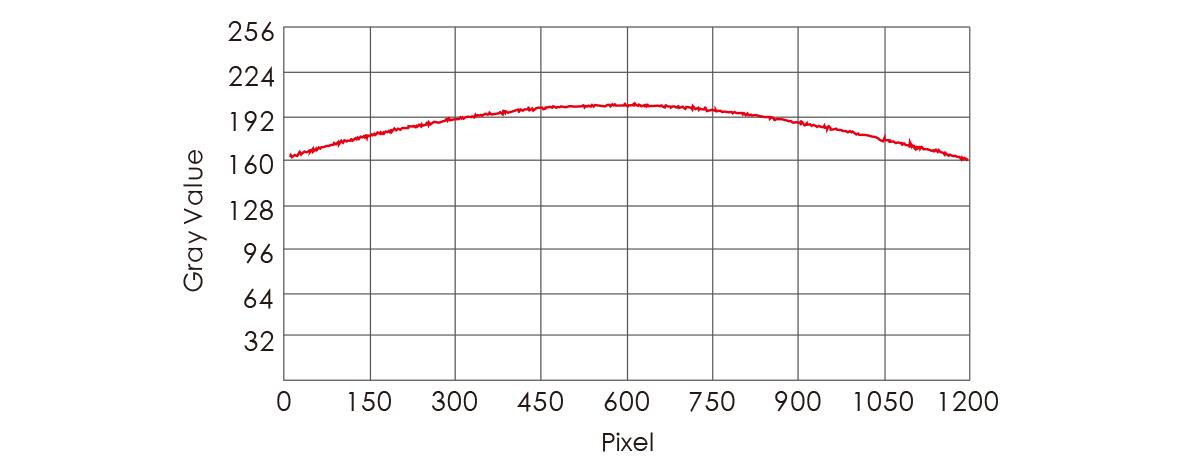

Uniformity chart

Uniformity chart

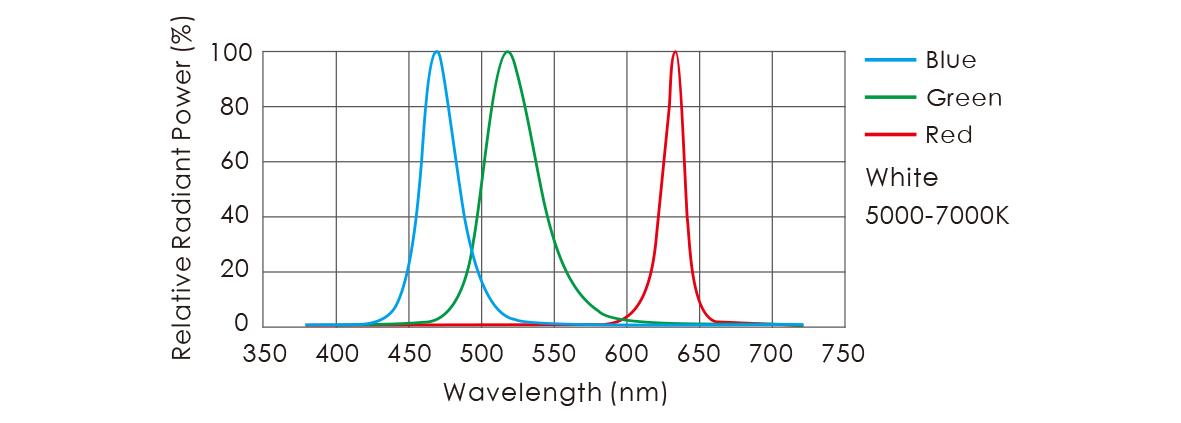

Spectrum Chart

Spectrum Chart

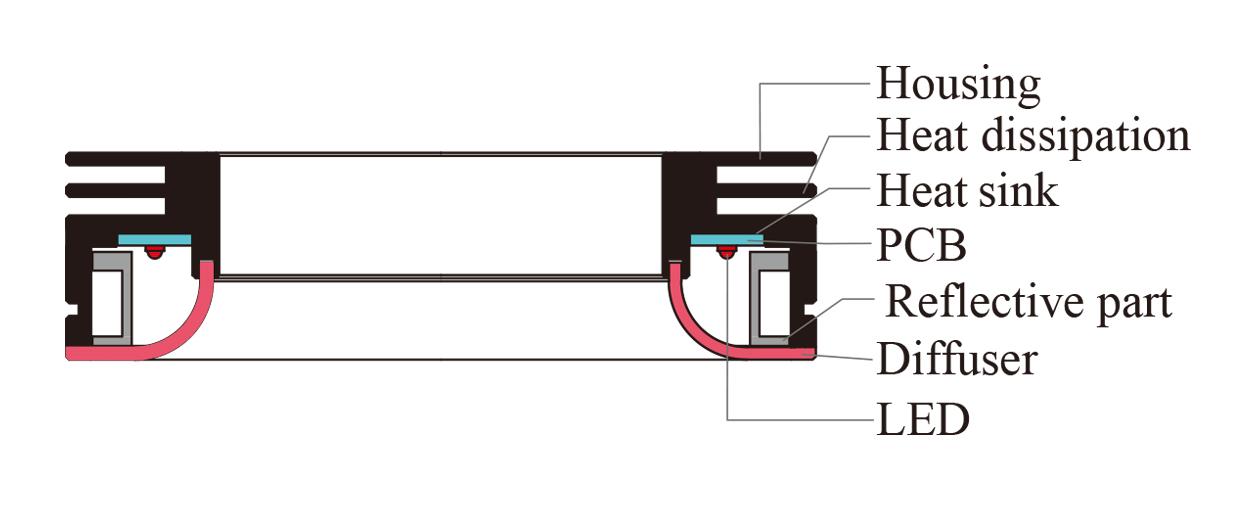

Section Structure Drawing

Section Structure Drawing

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 09.16.2020
