OPT Lights various

All lighting series from the Chinese manufacturer OPT Machine Vision that are not assigned to any other category are listed here.

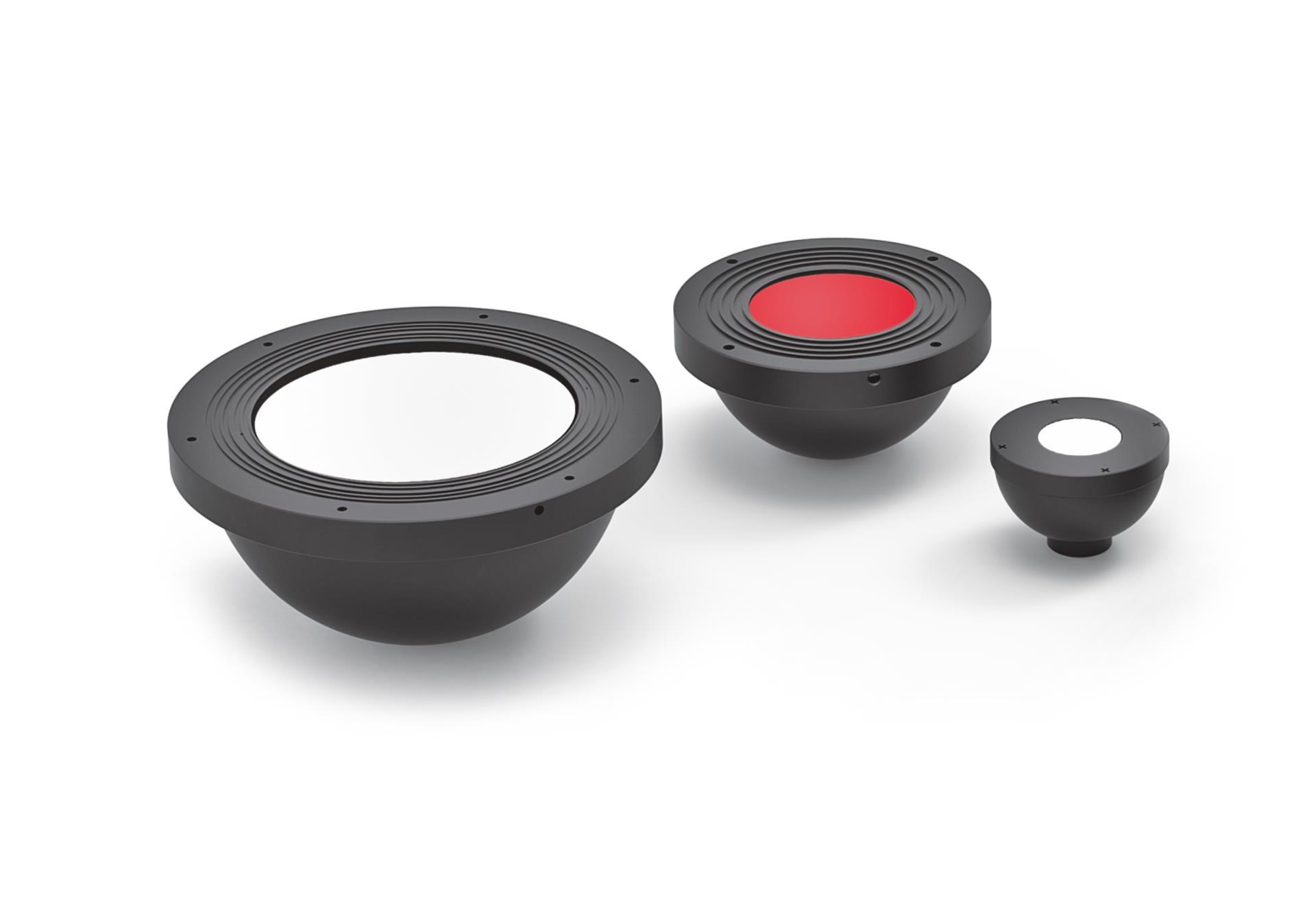

Dome Lights OPT-RID Series

Product Features

  • Using special diffuser to realize uniform illumination
  • Used to elliminate the interference caused by uneven surface

Group photo series

Application Cases

  • Inspection of curved and uneven surfaces
  • Inspection of highly reflective metal and glass surfaces

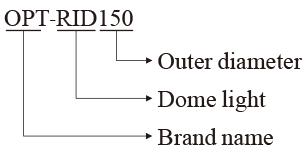

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-RID5224V / 3.1W24V / 3.6WOPT-DPA1024E, OPT-DPA2024E
OPT-RID7024V / 3.6W24V / 4.8WOPT-DPA1024E, OPT-DPA2024E
OPT-RID9524V / 3.9W24V / 5.5WOPT-DPA1024E, OPT-DPA2024E
OPT-RID10024V / 6.7W24V / 6.3WOPT-DPA1024E, OPT-DPA2024E
OPT-RID15024V / 6.4W24V / 10.6WOPT-DPA1024E, OPT-DPA2024E
OPT-RID18024V / 8.6W24V / 10.1WOPT-DPA1024E, OPT-DPA2024E
OPT-RID2400.5A / 12.0W1.2A / 28.8WOPT-DPA6024
OPT-RID3501.6A / 38.4W2.0A / 48W OPT-DPA6024

Version: 10-06-2020

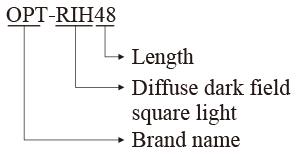

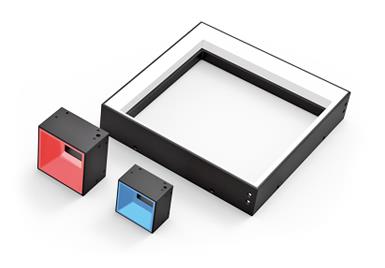

Diffuse Dark Field Square Lights OPT-RIH Series

Product Features

  • Providing uniform and shadowless illumination from four directions
  • For the use of irregular rectangular targets
  • Suitable for multiple applications at different working distances

Group photo series

Application Cases

  • Surface defects detection
  • Recognition of characters,logos, barcodes, and fingerprints

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-RIH3224V / 0.2W24V / 0.7WOPT-DPA1024E, OPT-DPA2024E
OPT-RIH4824V / 0.5W24V / 1.7WOPT-DPA1024E, OPT-DPA2024E
OPT-RIH11824V / 2.4W24V / 2.7WOPT-DPA1024E, OPT-DPA2024E
OPT-RIH15024V / 1.9W24V / 3.8WOPT-DPA1024E, OPT-DPA2024E
OPT-RIH958524V / 1.2W24V / 3.1WOPT-DPA1024E, OPT-DPA2024E
OPT-RIH1257024V / 1.7W24V / 5.0WOPT-DPA1024E, OPT-DPA2024E

Version: 10-06-2020

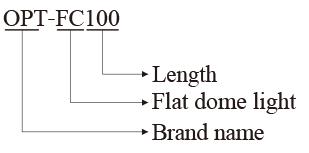

Flat Dome Lights OPT-FC Series

Product Features

  • Providing diffuse and uniform illumination
  • Lightweight, compact and easy to use
  • Coaxial planar light source with shadowless and coaxial light effects

Group photo series

Application Cases

  • Package inspection for food and beverage, tobacco and printing industries
  • Inspection and measurement for electronic parts
  • Pattern inspection and OCR on uneven and highly reflective surfaces

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-FC10024V / 0.7W24V / 2.2WOPT-DPA1024E, OPT-DPA2024E
OPT-FC14324V / 1.7W24V / 3.7WOPT-DPA1024E, OPT-DPA2024E
OPT-FC18024V / 3.2W 24V / 4.5WOPT-DPA1024E, OPT-DPA2024E
OPT-FC24024V / 6.6WOPT-DPA1024E, OPT-DPA2024E

Version: 10-06-2020

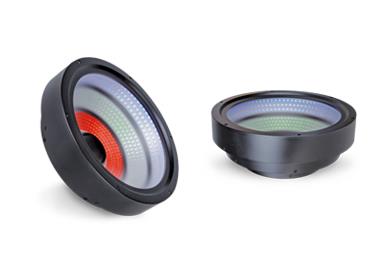

AOI Lights OPT-RIA Series

Product Features

  • Special diffuser designed to improve the uniformity
  • Highlight object 3D information by multi-colored (RGB) illumination from various angles

Group photo series

Application Cases

  • Soldering inspection of PCB
  • Inspection of round objects
  • Inspection of objects with varying heights

Selection guide

For further details refer to the series catalogue.

DesignationOutputChannelsController
OPT-RIA200-RGB24V / 31.4W3OPT-DPA1024E, OPT-DPA2024E
OPT-RIA211-RGB24V / 35.4W3OPT-DPA1024E, OPT-DPA2024E
OPT-RIA250-RGB24V / 50.2W3OPT-DPA1024E, OPT-DPA2024E
OPT-CO70-RIA211-RGBW24V / 47.6W4OPT-DPA1024E, OPT-DPA2024E

Version: 10-06-2020

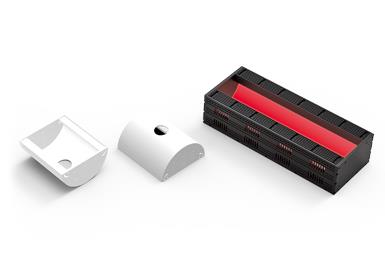

Vault Lights OPT-LIU Series

Product Features

  • Combined the features of both dome and bar lights
  • Linear or round view window on the top
  • Can be used with area and line scan cameras

Group photo series

Application Cases

  • Surface inspection of tobacco package
  • Housing defect detection of electronic parts
  • AOI for line scan applications
  • Large field-of-view surface inspection

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBChannelsController
OPT-LIU20524V / 19.2W24V / 28.8W2OPT-DPA1024E, OPT-DPA2024E
OPT-LIU2853.2A / 76.8W4.8A / 115.2W1OPT-DPA6024
OPT-LIU3622.4A / 57.6W4A / 96W 1OPT-DPA6024
OPT-LIU4233.2A / 76.8W7A / 168W2OPT-DPA6024
OPT-LIU5003.2A / 76.8W4.8A / 115.2W2OPT-DPA6024
OPT-LIU6003.2A / 76.8W5.6A / 134.4W 2OPT-DPA6024

Version: 10-06-2020

Multi-coloured Lights OPT-RGB Series

Product Features

  • Red, green and more colour.
  • Can be combined to inspect workpieces with various colours
  • RI and LI series multi-colored lights are equipped with special 45-degree cylinder lenses to provide more uniform and focused illumination.
  • The lights with different colors can be used individually or simultaneously.

Group photo series

Application Cases

  • Inspection of highly reflective surfaces
  • Chip and silicon wafer inspection
  • Mark positioning
  • Barcode reading
  • Laser marking character recognition and QR code reading

Selection guide

The lights are each available in three colour versions: -R, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput GOutput BController
OPT-RI6215-RGB24V / 0.6W24V / 1.1W24V / 1.1WOPT-DPA1024E, OPT-DPA2024E
OPT-RI8515-RGB24V / 1.5W24V / 2.5W24V / 2.7WOPT-DPA1024E, OPT-DPA2024E
OPT-FL5050-RGB24V / 1.2W24V / 1.9W24V / 2.3WOPT-DPA1024E, OPT-DPA2024E
OPT-FL9090-RGB24V / 4.5W24V / 6.7W24V / 7.4WOPT-DPA1024E, OPT-DPA2024E
OPT-FL130130-RGB24V / 6.1W24V / 12.0W24V / 14.6WOPT-DPA1024E, OPT-DPA2024E
OPT-LI8332-RGB24V / 0.6W24V / 0.9W24V / 1.1WOPT-DPA1024E, OPT-DPA2024E
OPT-LI15320-RGB24V / 0.6W24V / 1.1W24V / 1.1WOPT-DPA1024E, OPT-DPA2024E
OPT-LI22332-RGB24V / 1.7W24V / 3.1W24V / 3.3WOPT-DPA1024E, OPT-DPA2024E
OPT-CO50-RGB24V / 1.7W24V / 3.0W24V / 3.3WOPT-DPA1024E, OPT-DPA2024E
OPT-CO80-RGB24V / 5.1W24V / 6.6W24V / 7.8WOPT-DPA1024E, OPT-DPA2024E

Version: 10-06-2020

IR Lights OPT-XX-IR Series

Product Features

  • Customizable shapes and illumination angles
  • Near-infrared 850 nm and 940 nm illumination

Group photo series

Application Cases

  • Medical industry (Vascular nets recognition/eye tracking)
  • Packaging (Transparent plastic materials)
  • Clothing and textile
  • Electronics/semiconductor
  • Pharmaceutical industry
  • LCD/OLED

For further details refer to the series catalogue.

DesignationOutputWavelength [nm]Controller
OPT-CO30-IR24V / 1.4W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-CO40-IR24V / 1.2W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-CO50-IR24V / 3.1W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-CO60-IR24V / 3.1W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-CO70-IR24V / 5.0W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-CO80-IR24V / 7.4W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-CO100-IR24V / 10.6W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-LI6022-IR24V / 0.9W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-LI8532-IR24V / 2.6W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-LI9022-IR24V / 0.9W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-LI11222-IR24V / 0.9W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-LI15020-IR24V / 2.1W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-LI25030-IR24V / 8.9W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-LI38037-IR24V / 6.8W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-RI5030-IR24V / 1.0W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-RI7000-IR24V / 2.1W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-RI7045-IR24V / 2.0W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-RI9030-IR24V / 5.3W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-RI12000-IR24V / 8.8W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-RI12045-IR24V / 4.9W850 / 940OPT-DPA1024E, OPT-DPA2024E
OPT-RI12060-IR24V / 6.6W850 / 940OPT-DPA1024E, OPT-DPA2024E

Version: 10-06-2020

UV Lights OPT-XX-UV Series

Product Features

  • Equipped with advanced UV LEDs for stable performance
  • 365/385/405 nm illumination
  • Customizable shapes and illumination angles

Group photo series

Application Cases

  • Banknote/ticket inspection
  • Fluorescent material inspection
  • Recognition of fluorescent characters/barcodes and 2D codes reading
  • Minor glass defect detection
  • Photochemical effect (for sampling only)
  • Minor housing scratches and damage detection
  • UV glue inspection

For further details refer to the series catalogue.

DesignationOutputWavelength [nm]Controller
OPT-LI6022-UV24V / 1.4W385OPT-DPA1024E, OPT-DPA2024E
OPT-LI8532-UV24V / 4.1W385OPT-DPA1024E, OPT-DPA2024E
OPT-LI11222-UV24V / 3.2W385OPT-DPA1024E, OPT-DPA2024E
OPT-LI14030-UV24V / 7.4W385OPT-DPA1024E, OPT-DPA2024E
OPT-LI16030-UV24V / 9.3W385OPT-DPA1024E, OPT-DPA2024E
OPT-LI48031-UV24V / 20.2W385OPT-DPA1024E, OPT-DPA2024E
OPT-RI5030-UV24V / 2.6W385OPT-DPA1024E, OPT-DPA2024E
OPT-RI7000-UV24V / 4.3W385OPT-DPA1024E, OPT-DPA2024E
OPT-RI7060-UV24V / 5.0W385OPT-DPA1024E, OPT-DPA2024E
OPT-RI9000-UV24V / 7.2W385OPT-DPA1024E, OPT-DPA2024E
OPT-RI9030-UV24V / 5.5W385OPT-DPA1024E, OPT-DPA2024E
OPT-RI9045-UV24V / 6.4W385OPT-DPA1024E, OPT-DPA2024E
OPT-RI12000-UV24V / 7.2W385OPT-DPA1024E, OPT-DPA2024E
OPT-RI12030-UV24V / 5.5W385OPT-DPA1024E, OPT-DPA2024E
OPT-RI12045-UV24V / 6.4W385OPT-DPA1024E, OPT-DPA2024E
OPT-LI6424-UV24V / 1.4W365OPT-DPA1024E, OPT-DPA2024E
OPT-LI11624-UV24V / 2.9W365OPT-DPA1024E, OPT-DPA2024E
OPT-LI21230-UV24V / 6.5W365OPT-DPA1024E, OPT-DPA2024E
OPT-RI6030-UV24V / 2.4W365OPT-DPA1024E, OPT-DPA2024E
OPT-RI7530-UV24V / 4.3W365OPT-DPA1024E, OPT-DPA2024E

Version: 10-06-2020

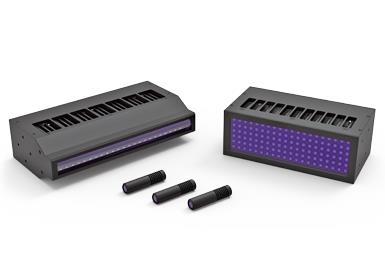

UV Glue Curing Lights

OPT Machine Vision offers UV glue curing lights in three series with different properties for different fields of application.

Group photo series

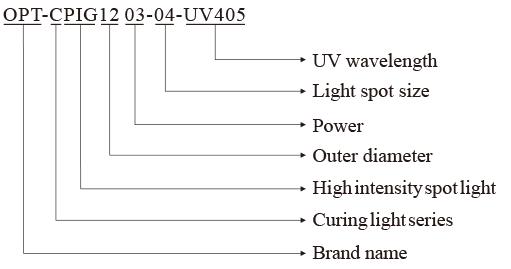

UV Glue Curing Lights OPT-CPIG-UV Series

Product Features

  • 4 mm/6 mm/8 mm/10 mm/15 mm diameter light spots available
  • Special lens used to obtain focused and high power illumination
  • Equipped with the flexible and durable cable for multiple motion applications
  • Up to 4700 mW/cm² light intensity at 10 mm working distance (Tested with OPT-CPIG1203-04-UV405)

Selection guide

Application Cases

  • Bonding of camera lenses
  • Chip encapsulation; sensor production; hard disk head bonding
  • Medical injection head bonding
  • Bonding of small parts

The lights are each available in three wavelengths. For further details refer to the series catalogue.

DesignationOutputWavelength [nm]ChannelsController
OPT-CPIG1203-041.0A / 3.5W365 / 385 / 4051DPA2005E
OPT-CPIG1203-061.0A / 3.5W365 / 385 / 4051DPA2005E
OPT-CPIG1203-081.0A / 3.5W365 / 385 / 4051DPA2005E
OPT-CPIG1203-101.0A / 3.5W365 / 385 / 4051DPA2005E
OPT-CPIG1203-151.0A / 3.5W365 / 385 / 4051DPA2005E

Version: 10-06-2020

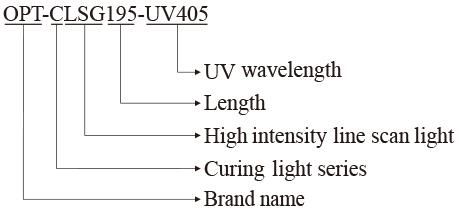

UV Glue Curing Lights OPT-CLSG-UV Series

Product Features

  • Special cylinder lens used to obtain focused and high power illumination
  • Stable heat release via cooling fan, which is available for the continuous mode
  • Up to 5500 mW/cm² light intensity at 20 mm working distance (Tested with OPT-CLSG195-UV405)

Selection guide

Application Cases

  • PCB chip bonding with UV glue
  • Touch screen sealing with glue; LCD panel encapsulation
  • Bonding of medical instruments
  • Curing of ink, varnish and paint
  • Coating curing of building materials

The lights are each available in three wavelengths. For further details refer to the series catalogue.

DesignationOutputWavelength [nm]ChannelsController
OPT-CLSG6024V / 24W365 / 385 / 4051OPT-DPA1024E, OPT-DPA2024E
OPT-CLSG1052.0A / 48W365 / 385 / 4051OPT-DPA6024
OPT-CLSG1503.0A / 72W365 / 385 / 4051OPT-DPA6024
OPT-CLSG1954.0A / 96W365 / 385 / 4051OPT-DPA6024
OPT-CLSG2405.0A / 120W365 / 385 / 4051OPT-DPA6024
OPT-CLSG2856.0A / 144W365 / 385 / 4052OPT-DPA6024
OPT-CLSG3307.0A / 168W365 / 385 / 4052OPT-DPA6024
OPT-CLSG3758.0A / 192W365 / 385 / 4052OPT-DPA6024
OPT-CLSG4209.0A / 216W365 / 385 / 4052OPT-DPA6024
OPT-CLSG46510.0A / 240W365 / 385 / 4052OPT-DPA6024

Version: 10-06-2020

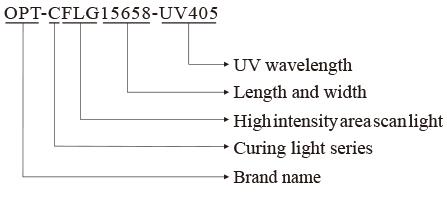

UV Glue Curing Lights OPT-CFLG-UV Series

Product Features

  • Equipped with compact high power LED arrays for uniform illumination
  • Up to 2200 mW/cm² light intensity at 10 mm working distance (Tested with OPT-CFLG15658-UV405)

Auswahlhilfe

Application Cases

  • Secondary curing of cell phones and optical communication components
  • Film printing
  • Curing of ink, varnish and paint
  • Coating curing of building materials

The lights are each available in three wavelengths. For further details refer to the series catalogue.

DesignationOutputWavelength [nm]ChannelsController
OPT-CFLG86585A / 120W365 / 385 / 4051OPT-DPA6024
OPT-CFLG1565810A / 240W365 / 385 / 4052OPT-DPA6024
OPT-CFLG2265815A / 360W365 / 385 / 4051OPT-DPA20024E
OPT-CFLG2965820A / 480W365 / 385 / 4051OPT-DPA20024E
OPT-CFLG15610020A / 480W365 / 385 / 4051OPT-DPA20024E

Version: 09-24-2020

Here you can easily ask a question or inquiry about our products:

Product inquiry

Request for:


Last update: 2020-06-10

EURECA Messtechnik GmbH
Deutz-Kalker Straße 35, D-50679 Köln

Phone: +49 (0)221 952629-0
Fax: +49 (0)221 952629-9

info(at)eureca.de
www.eureca.de
