OPT Bar Lights

Bar lights from the Chinese manufacturer OPT Machine Vision are available in different versions.

Bar Lights OPT-LI Series

Product Features

  • Suitable for special illumination requirements; can be combined flexibly
  • Adjustable mounting angle
  • Available for different colors and customized size

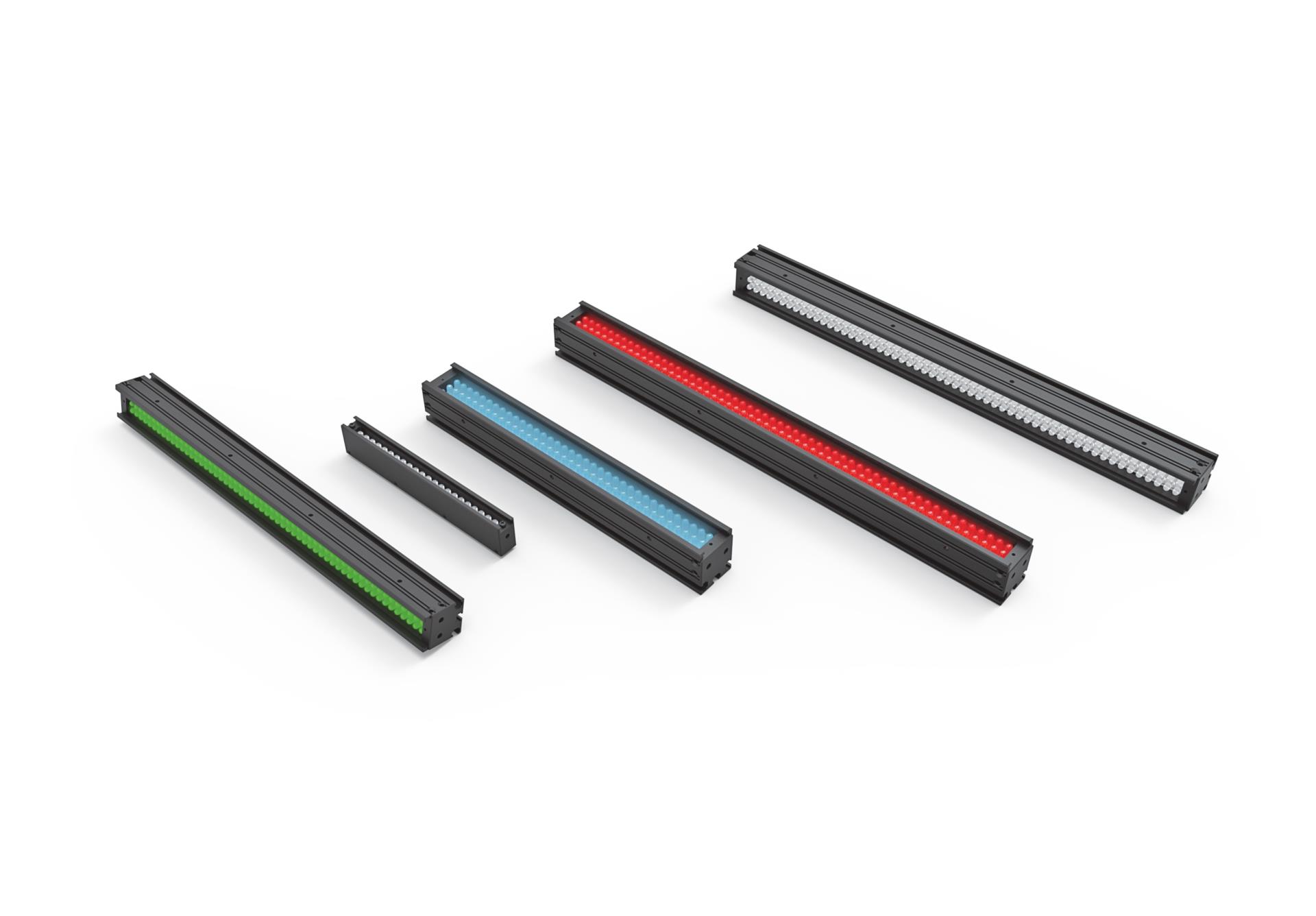

Group photo series

Application Cases

  • Metal surface inspection
  • Image scanning
  • Surface crack detection
  • LCD panel inspection

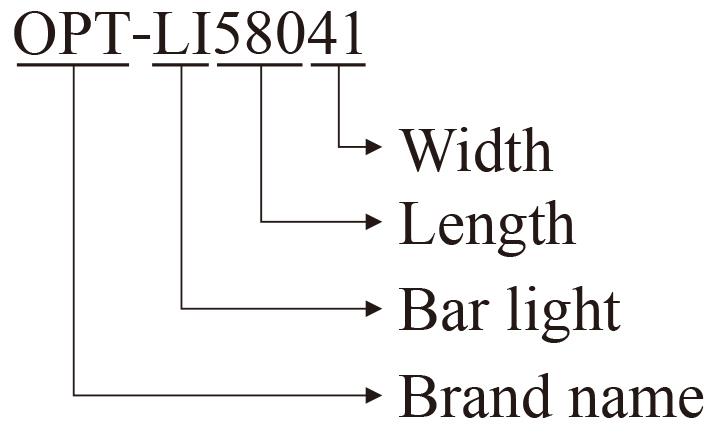

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-LI403324V / 0.5W24V / 1.6WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI521824V / 0.8W24V / 1.8WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI602224V / 0.7W24V / 1.8WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI853224V / 1.2W24V / 2.8WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI902224V / 0.6W24V / 2.8WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI1081024V / 0.4W24V / 0.8WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI1122224V / 1.4W24V / 3.8WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI1183024V / 2.8W24V / 4.8WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI1403024V / 3.6W24V / 5.5WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI1502024V / 1.2W24V / 2.8WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI1603024V / 2.2W24V / 6.5WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI1802224V / 1.4W24V / 6WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI1903024V / 4.1W24V / 7.9WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI2122224V / 2.6W24V / 4.6WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI2303424V / 7W24V / 8.5WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI2503024V / 6.6W24V / 10.8WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI2702224V / 4.2W24V / 6.4WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI3303724V / 4.6W24V / 12WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI3503024V / 8.6W24V / 13.6WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI3803724V / 5.9W24V / 13.2WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI4803124V / 12.5W24V / 12.7WOPT-DPA 1024E, OPT-DPA 2024E
OPT-LI5804124V / 9.1W24V / 26.4WOPT-DPA 2024E

Version: 09-30-2020

High Uniformity Bar Lights OPT-LIT Series

Product Features

  • High uniformity
  • Customized length up to 2000 mm
  • Easy for mounting. Can be installed with M3 threaded holes or insert M3 nut into the extrusion groove

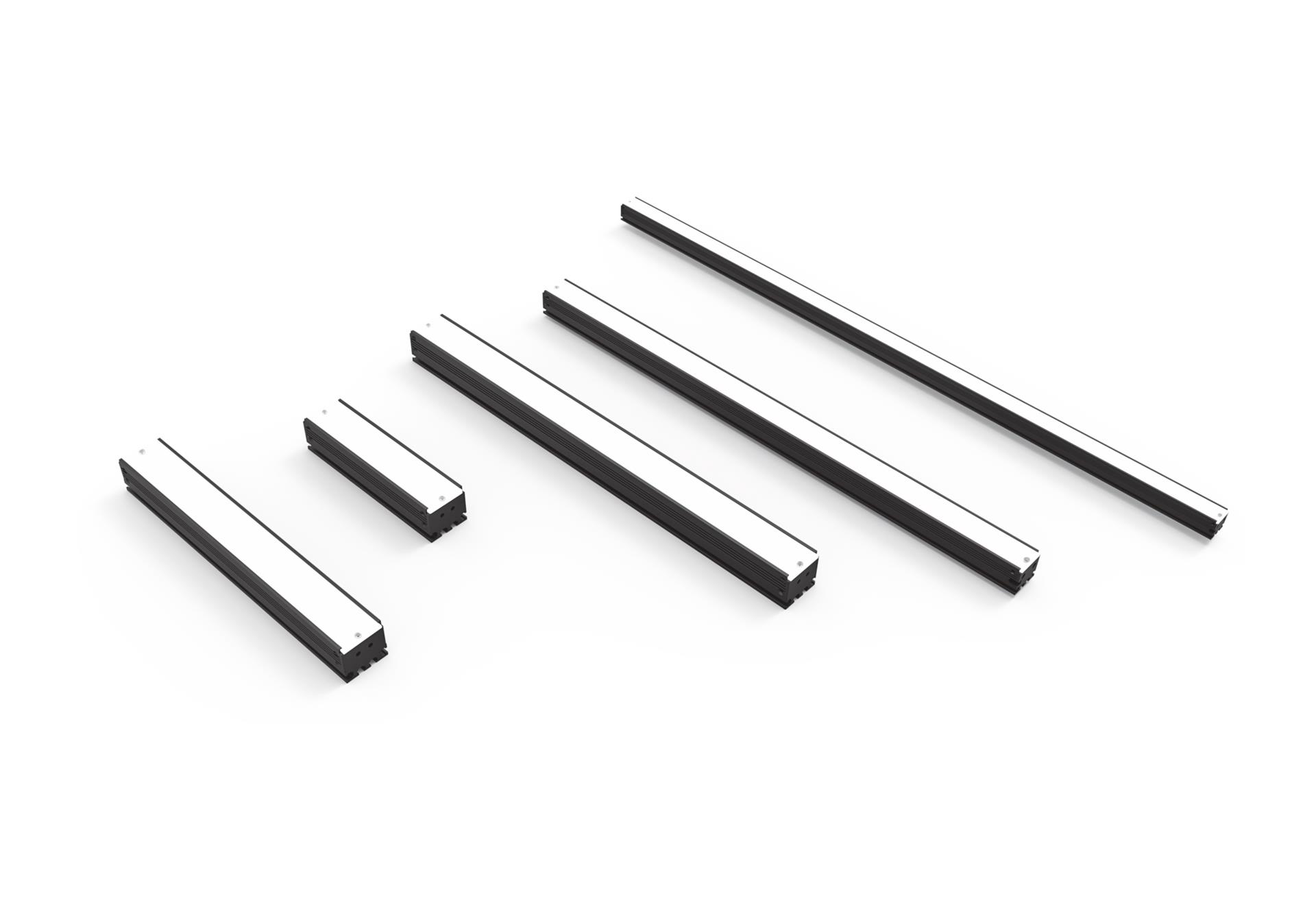

Group photo series

Application Cases

  • Electronic component inspection
  • Package inspection
  • Printing inspection; light source for light boxes

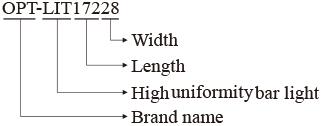

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-LIT602824V / 0.6W 24V / 1.2W OPT-DPA1024E, OPT-DPA2024E
OPT-LIT1182824V / 1.6W 24V / 4.1W OPT-DPA1024E, OPT-DPA2024E
OPT-LIT1722824V / 1.5W 24V / 4.5W OPT-DPA1024E, OPT-DPA2024E
OPT-LIT2122824V / 3.4W 24V / 7.6W OPT-DPA1024E, OPT-DPA2024E
OPT-LIT2512824V / 4.4W 24V / 8.0W OPT-DPA1024E, OPT-DPA2024E
OPT-LIT3232824V / 4.8W 24V / 9.1W OPT-DPA1024E, OPT-DPA2024E
OPT-LIT4152824V / 5.8W 24V / 10W OPT-DPA1024E, OPT-DPA2024E
OPT-LIT5002824V / 6.7W 24V / 11.2W OPT-DPA1024E, OPT-DPA2024E
OPT-LIT8802824V / 11.5W 24V / 14.5W OPT-DPA1024E, OPT-DPA2024E

Version: 09-30-2020

High Intensity Bar Lights OPT-LIG Series

Product Features

  • Three times the intensity than OPT-LI series
  • Customized length up to 2000 mm
  • Suitable for long working distance inspection by using focused lens and high power LEDs

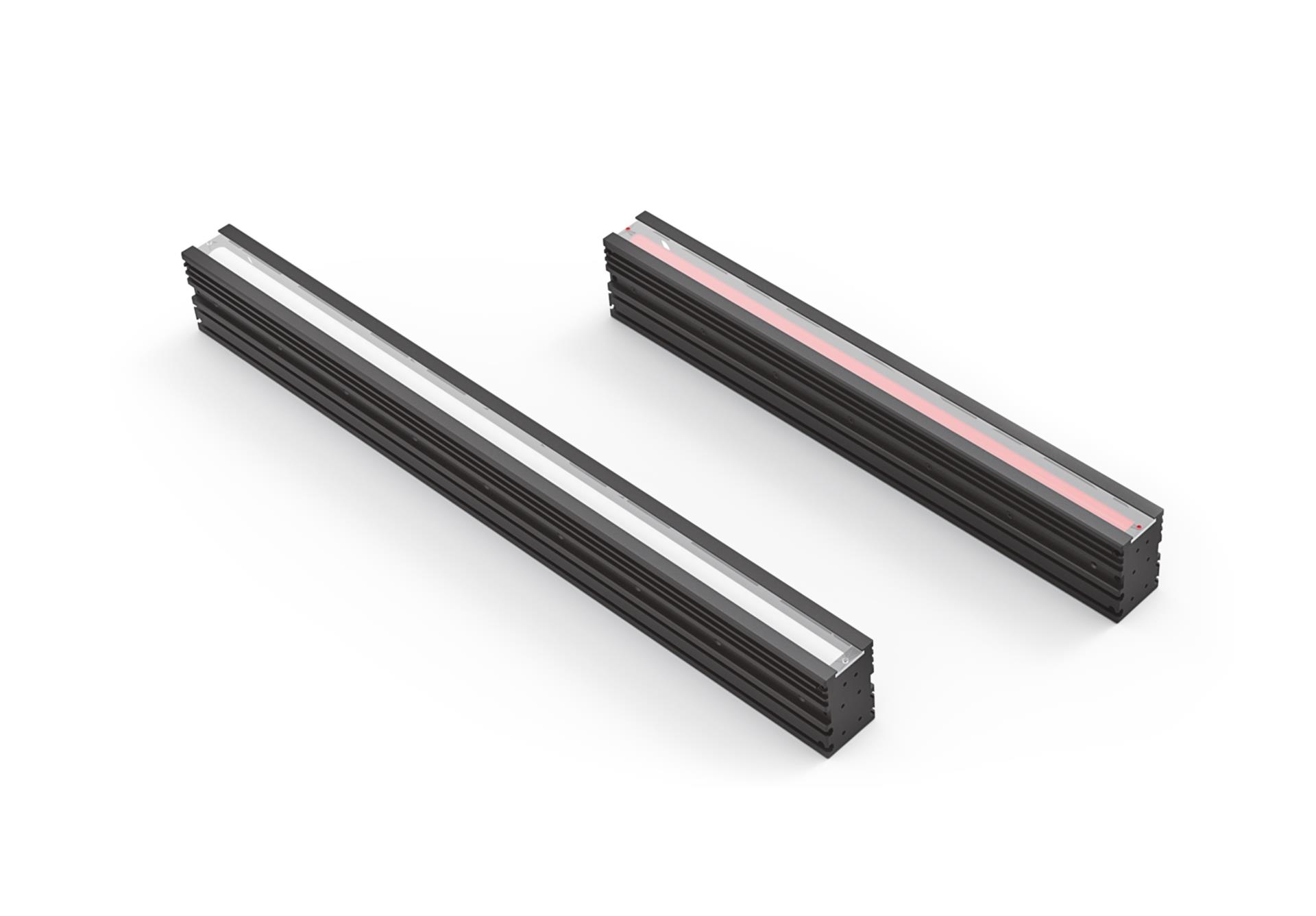

Group photo series

Application Cases

  • Longer distance illumination (compared with OPT-LI series)
  • Illumination for high speed line scan applications
  • Larger area illumination (compared with OPT-LI series)

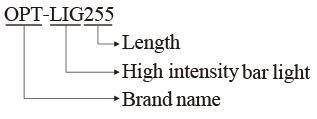

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBController
OPT-LIG13524V / 4.8W24V / 13.9WOPT-DPA1024E, OPT-DPA2024E
OPT-LIG25524V / 16.8W24V / 19.2WOPT-DPA1024E, OPT-DPA2024E
OPT-LIG3751.2A / 28.8W1.2A / 28.8WOPT-DPA6024
OPT-LIG4951.6A / 38.4W1.6A / 38.4WOPT-DPA6024

Version: 09-30-2020

Combined Bar Lights OPT-LIM Series

Product Features

  • Adjustable illumination angle (0–90 °)
  • Intensity of each bar light can be individually controlled
  • Suitable for various applications

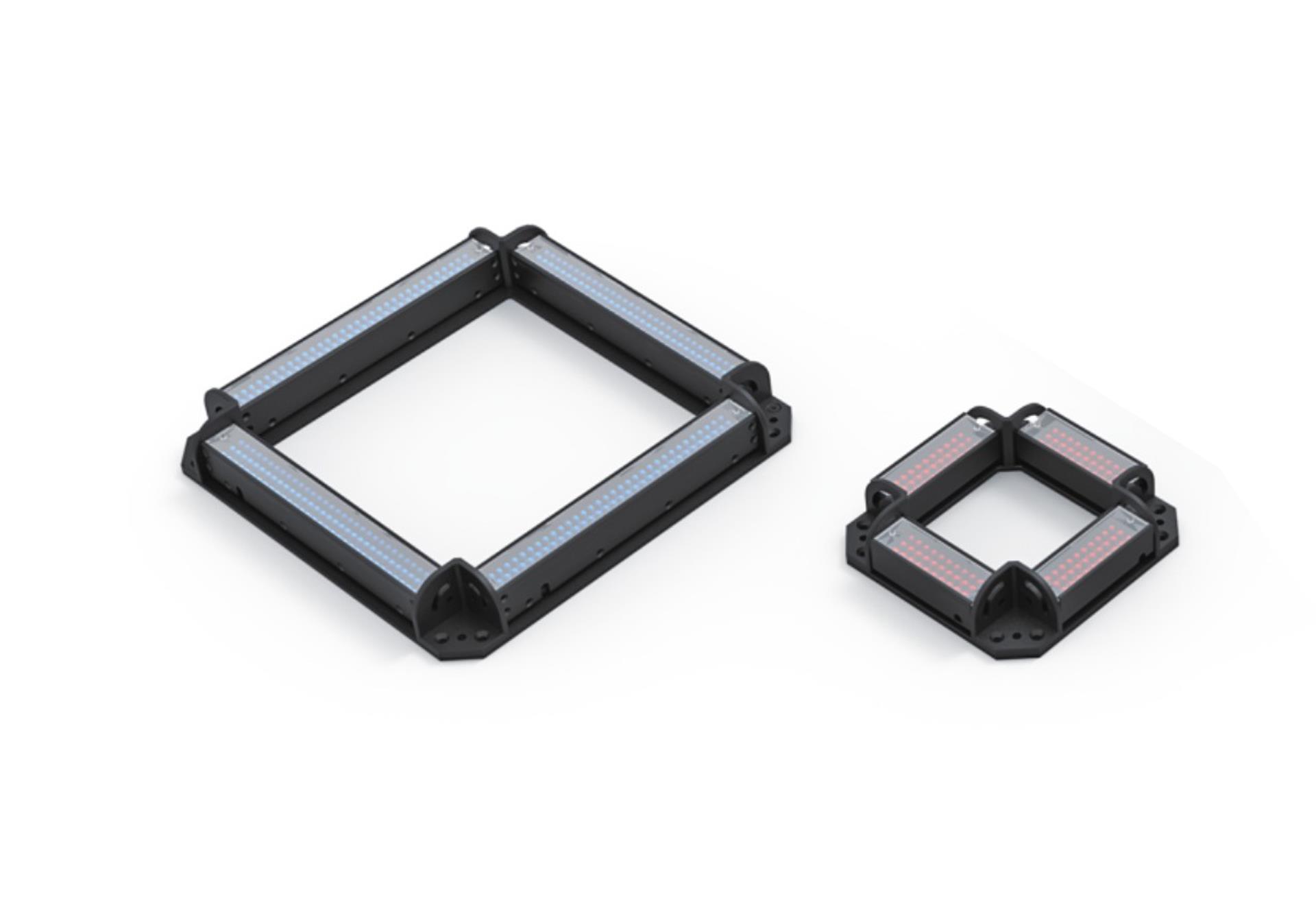

Group photo series

Application Cases

  • PCB inspection
  • Electronic component inspection
  • Soldering inspection
  • Mark positioning
  • Microscope illumination
  • Package barcode reading

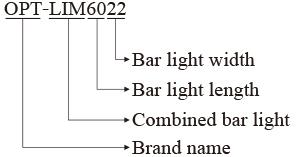

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WGBChannelsController
OPT-LIM602224V / 2.5W24V / 2.9W4OPT-DPA1024E, OPT-DPA2024E
OPT-LIM1122224V / 3.8W 24V / 8.9W4OPT-DPA1024E, OPT-DPA2024E
OPT-LIM1502024V / 4.8W 24V / 12.1W 4OPT-DPA1024E, OPT-DPA2024E
OPT-LIM2123024V / 13.4W24V / 31.2W 4OPT-DPA1024E, OPT-DPA2024E

Version: 09-30-2020
