OPT Coaxial Lights

Coaxial Lights from the Chinese manufacturer OPT Machine Vision are available in different versions.

Coaxial Lights OPT-CO Series

Excellent directional emitting light suitable for long work distance, enhancing the image feature
The high density LED arrays and special heat dissipation design ensure the illumination intensity and long lifespan.
Against highly reflected surface, highlight the surface uneveness

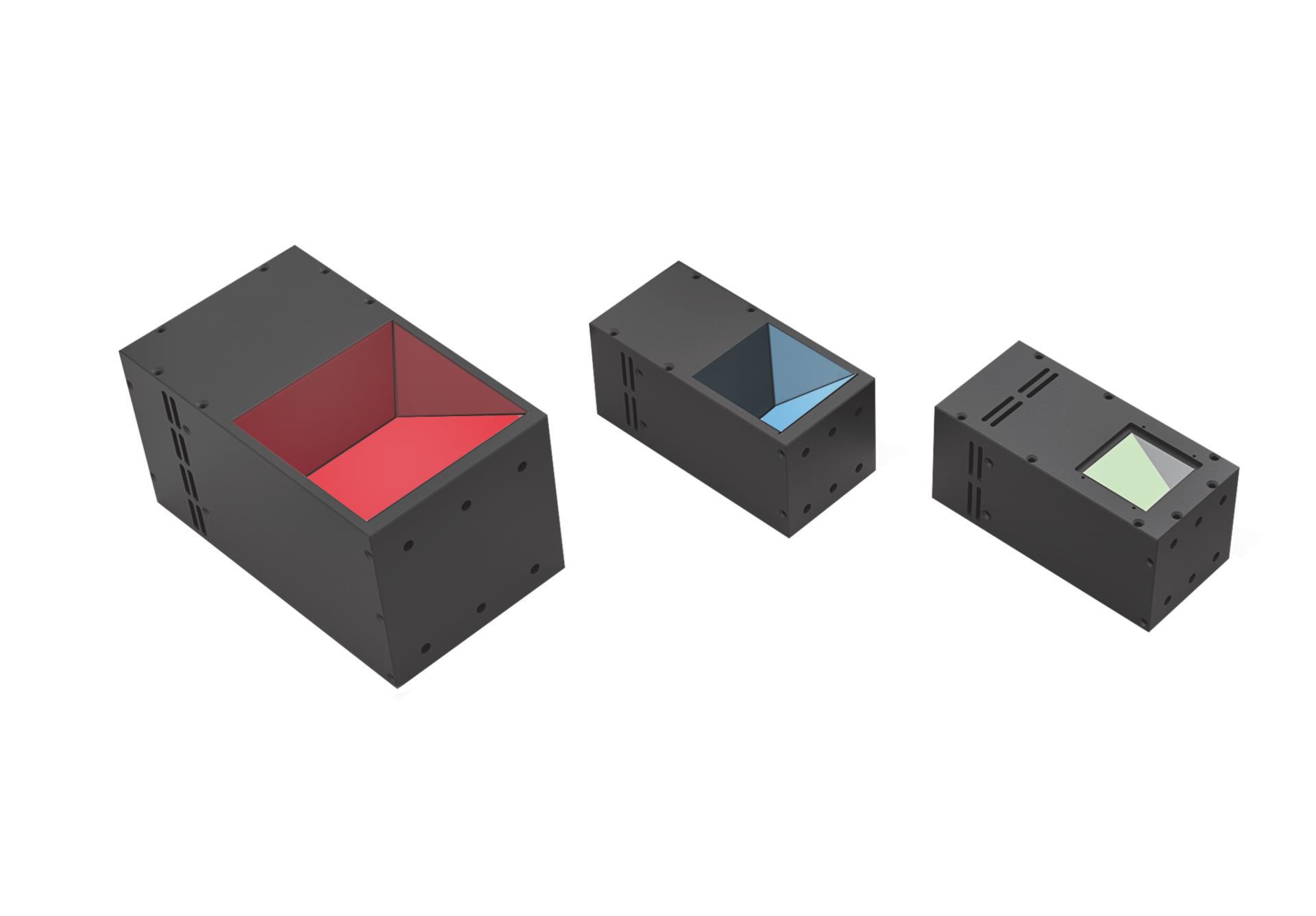

Group photo series

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

Designation	Output R	Output WGB	Controller
OPT-CO30	24V / 1.4W	24V / 1.8W	OPT-DPA1024E, OPT-DPA2024E
OPT-CO40	24V / 2.0W	24V / 3.0W	OPT-DPA1024E, OPT-DPA2024E
OPT-CO50	24V / 3.4W	24V / 5.4W	OPT-DPA1024E, OPT-DPA2024E
OPT-CO60	24V / 4.7W	24V / 7.6W	OPT-DPA1024E, OPT-DPA2024E
OPT-CO70	24V / 7.2W	24V / 10.5W	OPT-DPA1024E, OPT-DPA2024E
OPT-CO80	24V / 8W	24V / 12W	OPT-DPA1024E, OPT-DPA2024E
OPT-CO100	24V / 16.8W	24V / 17.5W	OPT-DPA1024E, OPT-DPA2024E
OPT-CO150	24V / 31W	24V / 36W	OPT-DPA2024E
OPT-CO200	24V / 52.8W	24V / 60W	OPT-DPA6024

Version: 10-06-2020

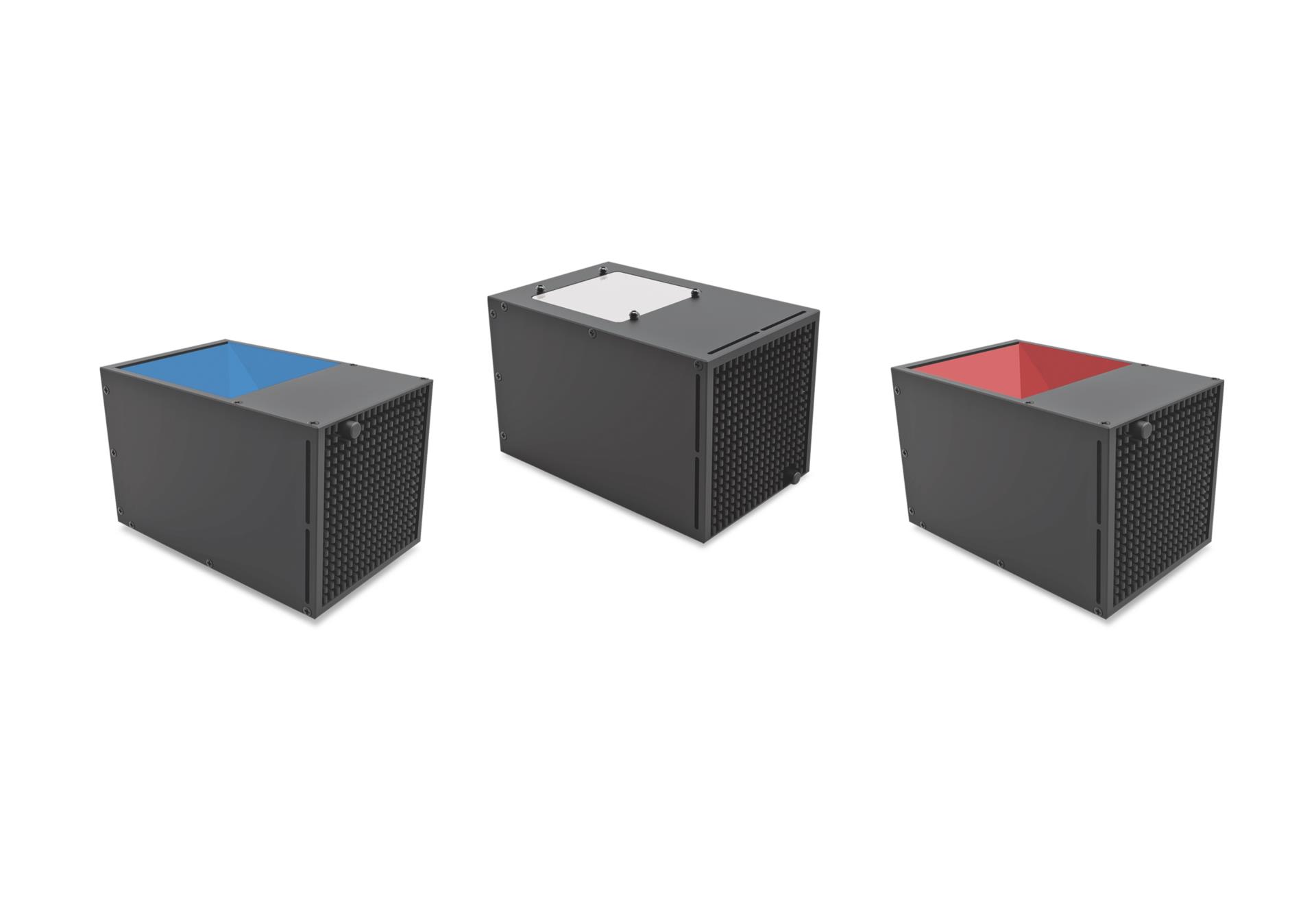

Group photo series

Selection guide

The lights are each available in four colour versions: -R, -W, -G, -B. For further details refer to the series catalogue.

Designation	Output R	Output WGB	Controller
OPT-COG50	1A / 24W	0.63A / 15.1W	OPT-DPA1024E, OPT-DPA2024E
OPT-COG80	2A / 48W	2A / 48W	OPT-DPA6024

Version: 10-06-2020
