OPT Line Scan Lighting

Line Scan Lighting from the Chinese manufacturer OPT Machine Vision are available in different versions.

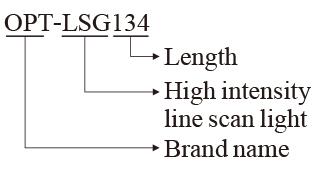

High Intensity Line Scan Lights OPT-LSG Series

Product Features

  • Illuminance up to 1400 K lux
  • Low divergence angle, suitable for long working distance applications
  • Diffuser film optional, suitable for highly reflected workpiece illumination, or used as backlight

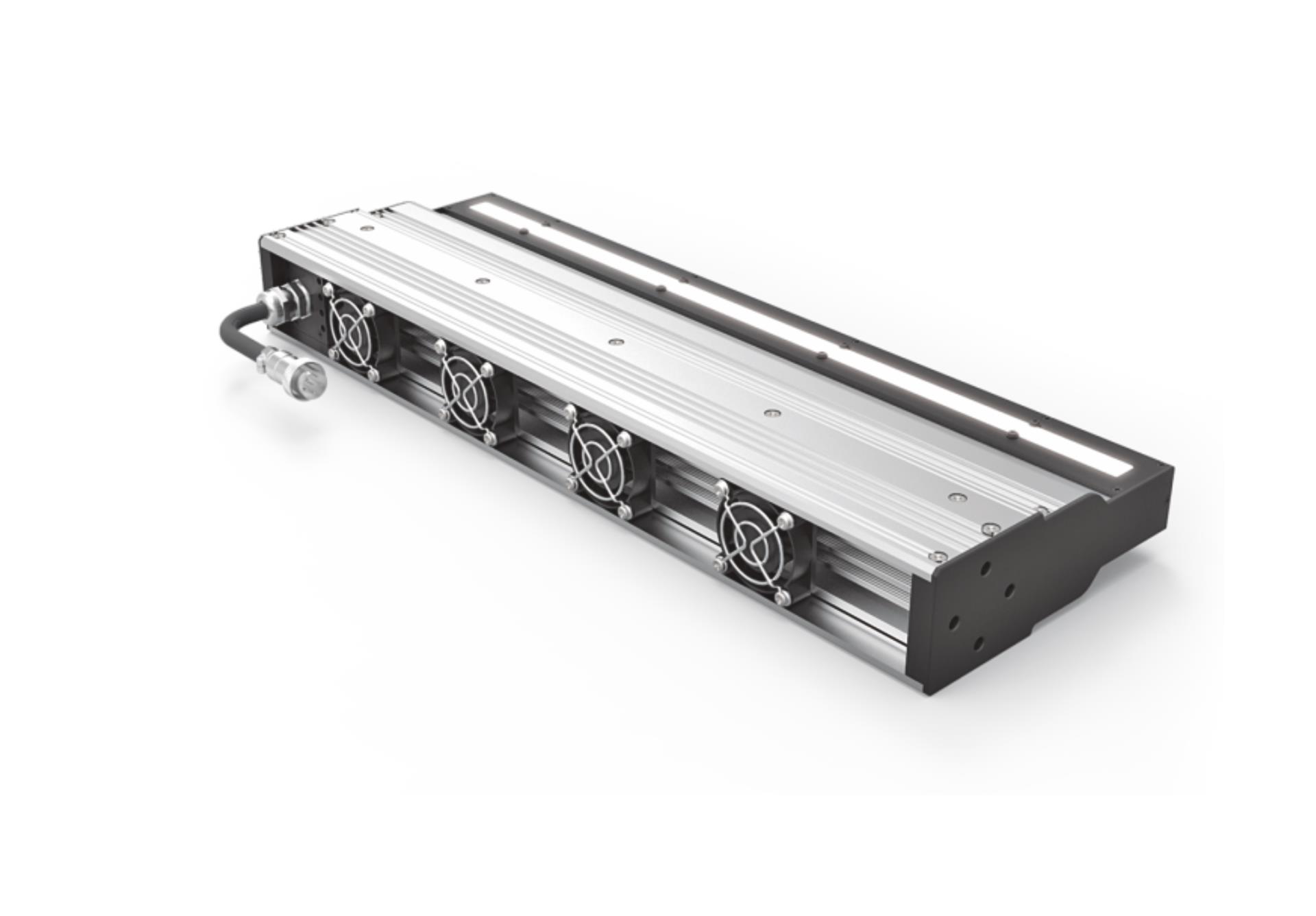

Group photo series

Application Cases

  • Mobile phone screen surface inspection
  • Aluminum foil surface inspection
  • Steel surface inspection

Selection guide

The lights are available in the following colour versions, depending on the model: -R, -W, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WBChannelsControllerLength
A [mm]		Emitt. Surface
B [mm]
OPT-LSG1341.4A / 33.6W1OPT-DPA6024134112
OPT-LSG2462.8A / 67.2W1OPT-DPA6024246224
OPT-LSG3584.2A / 100.8W1OPT-DPA6024358336
OPT-LSG4705A / 120W1OPT-DPA6024470448
OPT-LSG5827A / 168W2OPT-DPA6024582560
OPT-LSG6948.4A / 201.6W2OPT-DPA6024694672
OPT-LSG8069.6A / 230.4W2OPT-DPA6024806784
OPT-LSG91811.2A / 268.8W3OPT-DPA6024 (2 ×)918896
OPT-LSG125413.2A / 316.8W3OPT-DPA6024 (2 ×)12541232
OPT-LSG1100.4A/ 9.6W1OPT-DPA602411088
OPT-LSG1980.8A / 19.2W1OPT-DPA6024198176
OPT-LSG2861.2A / 28.8W1OPT-DPA6024286264
OPT-LSG3741.6A / 38.4W1OPT-DPA6024374352
OPT-LSG5502.4A / 57.6W1OPT-DPA6024550528

Version: 10-06-2020

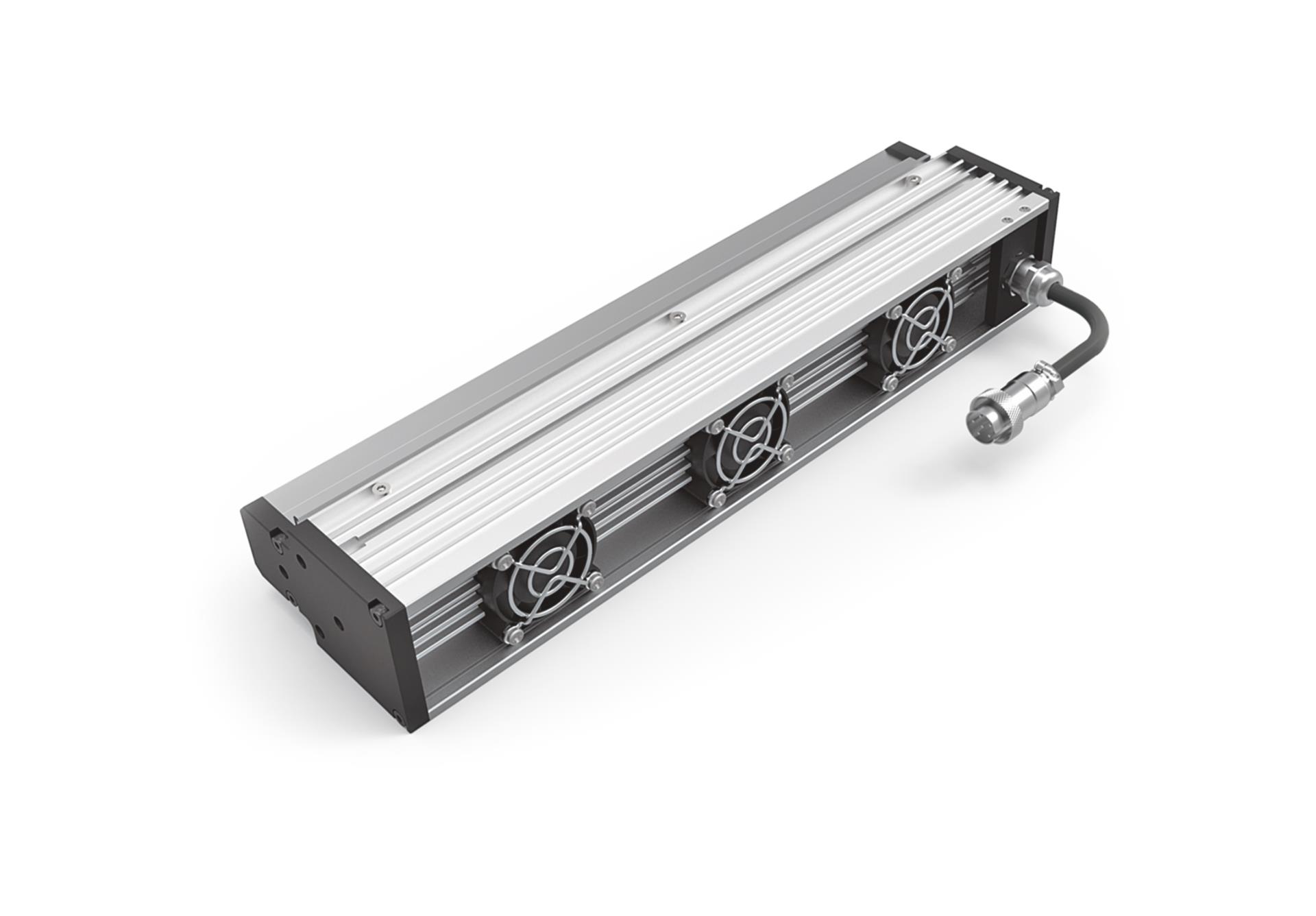

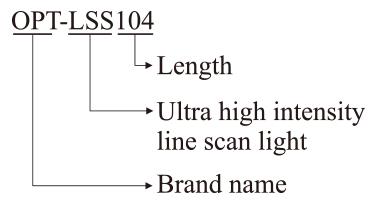

Ultra High Intensity Line Scan Lights OPT-LSS Series

Product Features

  • Illuminance up to 1900 K lux
  • Low divergence angle, suitable for long working distance applications
  • Diffuser film optional, suitable for highly reflected workpiece illumination, or used as backlight

Group photo series

Application Cases

  • Ultra high-speed line scan inspection
  • Long distance line scan inspection
  • High-speed printing inspection

Selection guide

The lights are available in the following colour versions, depending on the model: -R, -W, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WBChannelsControllerLength
A [mm]		Emitt. Surface
B [mm]
OPT-LSS1041.4A / 33.6W1OPT-DPA602410484
OPT-LSS1462.1A / 50.4W1OPT-DPA6024146126
OPT-LSS1882.1A / 50.4W2.8A / 67.2W1OPT-DPA6024188168
OPT-LSS2303.5A / 84.0W1OPT-DPA6024230210
OPT-LSS2724.2A / 100.8W1OPT-DPA6024272252
OPT-LSS3144.9A / 117.6W1OPT-DPA6024314294
OPT-LSS3562.8A / 67.2W5.6A / 134.4W2 (WB) | 1 (R)OPT-DPA6024356336
OPT-LSS3986.3A / 151.2W2OPT-DPA6024398378
OPT-LSS4407.0A / 168.0W2OPT-DPA6024440420
OPT-LSS4827.7A / 184.8W2OPT-DPA6024482462
OPT-LSS5244.9A / 117.6W8.4A / 201.6W2OPT-DPA6024524504
OPT-LSS1321.4A / 33.6W1OPT-DPA6024132112
OPT-LSS2442.8A / 67.2W1OPT-DPA6024244224
OPT-LSS3002.8A / 67.2W1OPT-DPA6024300280
OPT-LSS4124.9A / 117.6W1OPT-DPA6024412392
OPT-LSS4684.9A / 117.6W2OPT-DPA6024468448

Version: 10-06-2020

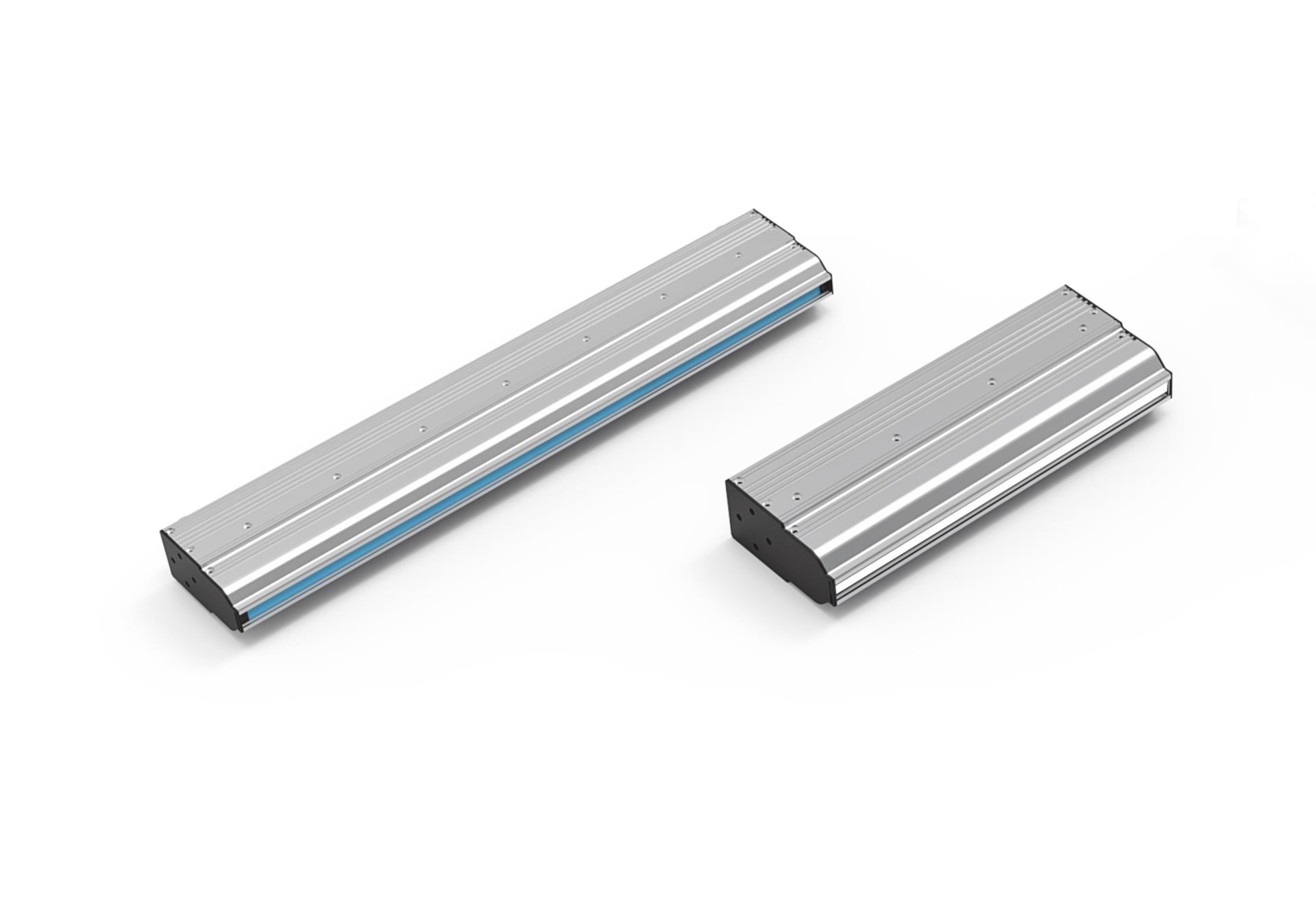

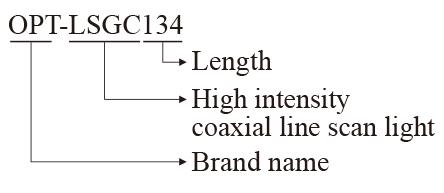

High Intensity Coaxial Line Scan Lights OPT-LSGC Series

Product Features

  • Optimized optical structure for high intensity inspection
  • Compatible with the inspection of both highly reflective and matt surfaces
  • Highly directional illumination

Group photo series

Application Cases

  • High-speed line scan inspection
  • Reflective surface inspection
  • Printing inspection

Selection guide

The lights are available in the following colour versions, depending on the model: -R, -W, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WBChannelsControllerLength
A [mm]		Emitt. Surface
B [mm]
OPT-LSGC1341.4A / 33.6W1OPT-DPA6024134104
OPT-LSGC1902.1 / 50.4W1OPT-DPA6024190170
OPT-LSGC2462.8A / 67.2W1OPT-DPA6024246226
OPT-LSGC3584.2A / 100.8W1OPT-DPA6024358338
OPT-LSGC4144.9A / 117.6W1OPT-DPA6024414394
OPT-LSGC4705.6A / 134.4W1OPT-DPA6024470450
OPT-LSGC5266.3A / 216.0W2OPT-DPA6024526506
OPT-LSGC1100.4A / 9.6W1OPT-DPA602411090
OPT-LSGC1980.8A / 19.2W1OPT-DPA6024198178
OPT-LSGC2861.2A / 28.8W1OPT-DPA6024286266
OPT-LSGC3741.6A / 38.4W1OPT-DPA6024374354
OPT-LSGC4622.0A / 48.0W1OPT-DPA6024462442
OPT-LSGC5502.4A / 57.6W1OPT-DPA6024550530

Version: 10-06-2020

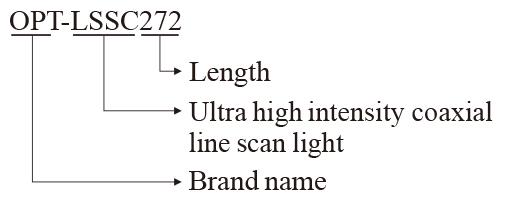

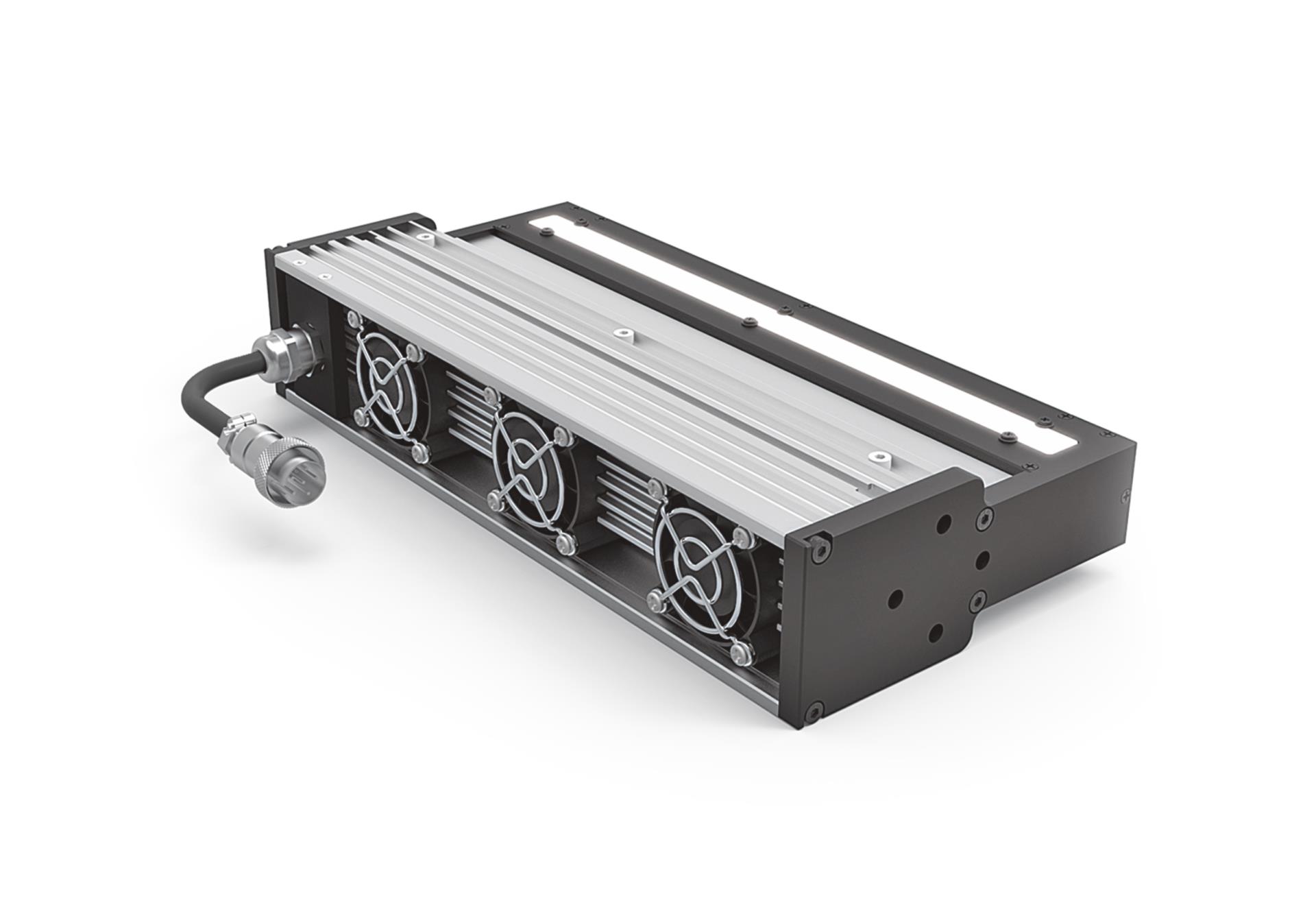

Ultra High Intensity Coaxial Line Scan Lights OPT-LSSC Series

Product Features

  • Higher intensity compared to OPT-LSSC
  • Compatible with the inspection of both reflective and matt surfaces
  • Highly directional illumination

Group photo series

Application Cases

  • Illumination for line scan cameras
  • Film and glass surface inspection; foreign objects detection
  • High-speed printing inspection

Selection guide

The lights are available in the following colour versions, depending on the model: -R, -W, -B. For further details refer to the series catalogue.

DesignationOutput ROutput WBChannelsControllerLength
A [mm]		Emitt. Surface
B [mm]
OPT-LSSC1041.4A / 33.6W1OPT-DPA602410484
OPT-LSSC1462.1A / 50.4W1OPT-DPA6024146126
OPT-LSSC1882.1A / 50.4W2.8A / 67.2W1OPT-DPA6024188168
OPT-LSSC2303.5A / 84W1OPT-DPA6024230210
OPT-LSSC2724.2A / 100.8W1OPT-DPA6024272252
OPT-LSSC3144.9A / 117.6W1OPT-DPA6024314294
OPT-LSSC3564.2A / 100.8W5.6A / 134.4W2 (WB) | 1 (R)OPT-DPA6024356336
OPT-LSSC3986.3A / 151.2W2OPT-DPA6024398379
OPT-LSSC4407A / 168W2OPT-DPA6024440420
OPT-LSSC4827.7A / 184.8W2OPT-DPA6024482462
OPT-LSSC5246.3A / 151.2W8.4A / 201.6W2OPT-DPA6024524504
OPT-LSSC1321.4A / 33.6W1OPT-DPA6024132102
OPT-LSSC2442.8A / 67.2W1OPT-DPA6024244224
OPT-LSSC3003.5A / 84W1OPT-DPA6024300280
OPT-LSSC4124.9A / 117.6W1OPT-DPA6024412392
OPT-LSSC4685.6A / 134.4W2OPT-DPA6024468448

Version: 10-06-2020

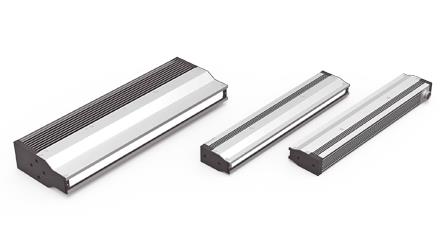

Natural Heat Dissipation Line Scan Lights OPT-LSNS Series

Product features

  • Higher intensity compared to OPT-LSGC
  • Compatible with the inspection of reflective and matte surfaces
  • Highly directional lighting

Group photo series

Application Cases

  • Line scan camera lighting
  • Inspection of film and glass surfaces; Foreign object detection
  • High speed print inspection

Please choose from the available color versions (see table).

DesignationHousing
Length [mm]		Emitting
Length [mm]		OutputControllerRemark
OPT-LSNS104NEW1048624V / 9.6WOPT-DPA2024E-G, -B, -W
OPT-LSNS146NEW14612824V / 12WOPT-DPA2024E-G, -B, -W
OPT-LSNS188NEW18817024V / 16.8WOPT-DPA2024E-G, -B, -W
OPT-LSNS230NEW23021224V / 21.6WOPT-DPA2024E-G, -B, -W
OPT-LSNS272NEW27225424V / 24WOPT-DPA2024E-G, -B, -W
OPT-LSNS314NEW31429624V / 31.2WOPT-DPA2024E-G, -B, -W
OPT-LSNS356NEW35633824V / 33.6WOPT-DPA2024E-G, -B, -W
OPT-LSNS398NEW39838024V / 38.4WOPT-DPA2024E-G, -B, -W
OPT-LSNS440NEW44042224V / 43.2WOPT-DPA2024E-G, -B, -W
OPT-LSNS482NEW4824642A / 48WOPT-DPA6024-G, -B, -W
OPT-LSNS524NEW5245062.2A / 52.8WOPT-DPA6024-G, -B, -W
OPT-LSNS566NEW5665482.3A / 55.2WOPT-DPA6024-G, -B, -W
OPT-LSNS608NEW6085902.5A / 60WOPT-DPA6024-G, -B, -W
OPT-LSNS650NEW6506322.7A / 64.8WOPT-DPA6024-G, -B, -W
OPT-LSNS692NEW6926742.9A / 69.6WOPT-DPA6024-G, -B, -W
OPT-LSNS1028NEW10289643.6A / 86.4WOPT-DPA6024-G, -B, -W
OPT-LSNS1112NEW111210483.9A / 93.6WOPT-DPA6024-G, -B, -W
OPT-LSNS1196NEW119611324.2A / 100.8WOPT-DPA6024-G, -B, -W
OPT-LSNS1280NEW128012164.5A / 108WOPT-DPA6024-G, -B, -W
OPT-LSNS1364NEW136413004.8A / 115.2WOPT-DPA6024-G, -B, -W
OPT-LSNS1448NEW144813845.1A / 122.4WOPT-DPA6024-G, -B, -W
OPT-LSNS1532NEW153214685.4A / 129.6WOPT-DPA6024-G, -B, -W
OPT-LSNS1616NEW161615525.7A / 136.8WOPT-DPA6024-G, -B, -W
OPT-LSNS1700NEW170016366A / 144WOPT-DPA6024-G, -B, -W
OPT-LSNS1784NEW178417206.3A / 151.2WOPT-DPA6024-G, -B, -W
OPT-LSNS1868NEW186818046.6A / 158.4WOPT-DPA6024-G, -B, -W
OPT-LSNS1952NEW195218886.9A / 165.6WOPT-DPA6024-G, -B, -W
OPT-LSNS2036NEW203619727.2A / 172.8WOPT-DPA6024-G, -B, -W
OPT-LSNS2120NEW212020567.5A / 180WOPT-DPA6024-G, -B, -W
OPT-LSNS2204NEW220421407.8A / 187.2WOPT-DPA6024-G, -B, -W
OPT-LSNS2288NEW228822248.1A / 194.4WOPT-DPA6024-G, -B, -W
OPT-LSNS2372NEW237223088.4A / 201.6WOPT-DPA6024-G, -B, -W
OPT-LSNS2456NEW245623928.7A / 208.8WOPT-DPA6024-G, -B, -W
OPT-LSNS2540NEW254024769A / 216WOPT-DPA6024-G, -B, -W
OPT-LSNS2624NEW262425609.3A / 223.2WOPT-DPA6024-G, -B, -W
OPT-LSNS2708NEW270826449.6A / 230.4WOPT-DPA6024-G, -B, -W
OPT-LSNS2792NEW279227289.9A / 237.6WOPT-DPA6024-G, -B, -W
OPT-LSNS2876NEW2876281210.2A / 244.8WOPT-DPA6024-G, -B, -W
OPT-LSNS2960NEW2960289610.5A / 252WOPT-DPA6024-G, -B, -W
OPT-LSNS3044NEW3044298010.8A / 259.2WOPT-DPA6024-G, -B, -W
OPT-LSNS3128NEW3128306411.1A / 266.4WOPT-DPA6024-G, -B, -W
OPT-LSNS3212NEW3212314811.4A / 273.6WOPT-DPA6024-G, -B, -W
OPT-LSNS3296NEW3296323211.7A / 280.8WOPT-DPA6024-G, -B, -W
OPT-LSNS3380NEW3380331612A / 288WOPT-DPA6024-G, -B, -W
OPT-LSNS3464NEW3464340012.3A / 295.2WOPT-DPA6024-G, -B, -W
OPT-LSNS3548NEW3548348412.6A / 302.4WOPT-DPA6024-G, -B, -W
OPT-LSNS3632NEW3632356812.9A / 309.6WOPT-DPA6024-G, -B, -W
OPT-LSNS3716NEW3716365213.2A / 316.8WOPT-DPA6024-G, -B, -W
OPT-LSNS3800NEW3800373613.5A / 324WOPT-DPA6024-G, -B, -W
OPT-LSNS3884NEW3884382013.8A / 331.2WOPT-DPA6024-G, -B, -W
OPT-LSNS3968NEW3968390414.1A / 338.4WOPT-DPA6024-G, -B, -W
OPT-LSNS4052NEW4052398814.4A / 345.6WOPT-DPA6024-G, -B, -W
OPT-LSNS4136NEW4136407214.7A / 352.8WOPT-DPA6024-G, -B, -W
OPT-LSNS4220NEW4220415615A / 360WOPT-DPA6024-G, -B, -W
OPT-LSNS4304NEW4304424015.3A / 367.2WOPT-DPA6024-G, -B, -W
OPT-LSNS4388NEW4388432415.6A / 374.4WOPT-DPA6024-G, -B, -W
OPT-LSNS4472NEW4472440815.9A / 381.6WOPT-DPA6024-G, -B, -W
OPT-LSNS4556NEW4556449216.2A / 388.8WOPT-DPA6024-G, -B, -W
OPT-LSNS4640NEW4640457816.5A / 396WOPT-DPA6024-G, -B, -W
OPT-LSNS4724NEW4724466016.8A / 403.2WOPT-DPA6024-G, -B, -W
OPT-LSNS4808NEW4808474417.1A / 410.4WOPT-DPA6024-G, -B, -W
OPT-LSNS4892NEW4892482817.4A / 417.6WOPT-DPA6024-G, -B, -W
OPT-LSNS4976NEW4976491217.7A / 424.8WOPT-DPA6024-G, -B, -W
OPT-LSNS5060NEW5060499618A / 432WOPT-DPA6024-G, -B, -W
OPT-LSNS5144NEW5144508018.3A / 439.2WOPT-DPA6024-G, -B, -W
OPT-LSNS5228NEW5228516418.6A / 446.4WOPT-DPA6024-G, -B, -W
OPT-LSNS5312NEW5312524818.9A / 453.6WOPT-DPA6024-G, -B, -W
OPT-LSNS5396NEW5396533219.2A / 460.8WOPT-DPA6024-G, -B, -W
OPT-LSNS5480NEW5480541619.5A / 468WOPT-DPA6024-G, -B, -W
OPT-LSNS5564NEW5564550019.8A / 475.2WOPT-DPA6024-G, -B, -W
OPT-LSNS5648NEW5648558420.1A / 482.4WOPT-DPA6024-G, -B, -W
OPT-LSNS5732NEW5732566820.4A / 489.6WOPT-DPA6024-G, -B, -W
OPT-LSNS5816NEW5816575220.7A / 496.8WOPT-DPA6024-G, -B, -W
OPT-LSNS5900NEW5900583621A / 504WOPT-DPA6024-G, -B, -W
OPT-LSNS5984NEW5984592021.3A / 511.2WOPT-DPA6024-G, -B, -W
OPT-LSNS128NEW12811024V / 9.6WOPT-DPA2024E-R
OPT-LSNS182NEW18216424V / 12WOPT-DPA2024E-R
OPT-LSNS236NEW23621824V / 16.8WOPT-DPA2024E-R
OPT-LSNS290NEW29027224V / 21.6WOPT-DPA2024E-R
OPT-LSNS344NEW34432624V / 24WOPT-DPA2024E-R
OPT-LSNS398NEW39838024V / 31.2WOPT-DPA2024E-R
OPT-LSNS452NEW45243424V / 33.6WOPT-DPA2024E-R
OPT-LSNS506NEW50648824V / 38.4WOPT-DPA2024E-R
OPT-LSNS560NEW56054224V / 43.2WOPT-DPA2024E-R
OPT-LSNS614NEW6145962A / 48WOPT-DPA6024-R
OPT-LSNS668NEW6686502.2A / 52.8WOPT-DPA6024-R
OPT-LSNS722NEW7227042.3A / 55.2WOPT-DPA6024-R

Version: 09-08-2021
