M116 Series: C116 CIS-Module 300–600 DPI

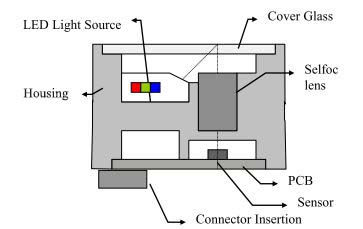

The 300–600 dpi modules are available in sizes from 216 mm to 24 mm. The M116 module series is based on the dual-resolution C116 silicon with a resolution of 300/600 dpi. Available in aluminium or plastic with 1 to 3 video outputs, the devices can be configured to meet your specific needs.


  • High speed up to 8 MHz pixel rate
  • Sensitivity 50–400 V / Lux*sek
  • 600 dpi resolution
  • 300 dpi / 600 dpi selectable
  • 41.65 µm pixel pitch from center to center
  • On-chip OP amp
  • Very low fixed pattern noise
  • Single 5 V or 3.3 V power supply
  • 5 V or 3.3 V input signal interface
length [mm]
LEDTyp. clock
rate [MHz]
Readout time per
line per colour [µs]
M116-A3C3NEW!312R, G, B5.0250 / 500
M116-A4C3216R, G, B5.0175 / 350
M116-A6C1108R,G,B5.0260 / 520
M116-A6W3NEW!108W5.090 / 180
M116-24W1NEW!24W5.060 / 120
M116-A8CIU1NEW!60R,G,B, IR, UV6.0130 / 260

Version: 09-09-2022

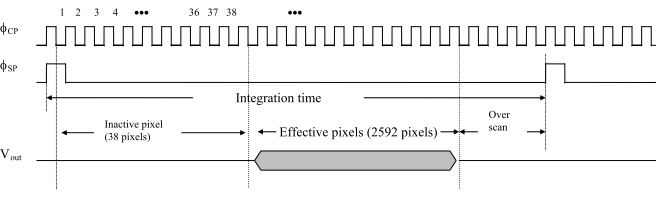

The following timing diagram indicates a device with a single video output. The device can be fully scanned in 2,630 clock cycles (38 inactive clock cycles plus 2,592 clock cycles) for the video signal.

Timing Diagram 1 video output

In the example, some amount of overscan can be seen. Since this device uses a global shutter, the overscan period will expose the sensor elements for the next readout cycle.

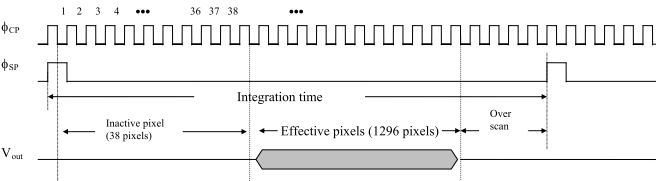

The second diagram is the same device except that the user has selected 300 dpi resolution mode. In this case, it will require 38 + 1296 clock cycles to read the sensor fully.

Timing Diagram 300 dpi mode

Datasheets of the sensors are available on request. Please contact us! In addition to the modules listed above, all possible variations (in larger quantities) can be ordered and produced. Please contact us for an individual offer!
