Interlock Series

Extremely robust lenses for industrial environments
Robust full metal housing for maximum protection against dust and water as well as special screws for focus and iris adjustment
Precise manual focus for optimum picture clarity even at very small working distance

Mount Types

Interlock, F Mount
Interlock, M42 Mount
Interlock Compact, M42 Mount
Interlock Compact, E Mount

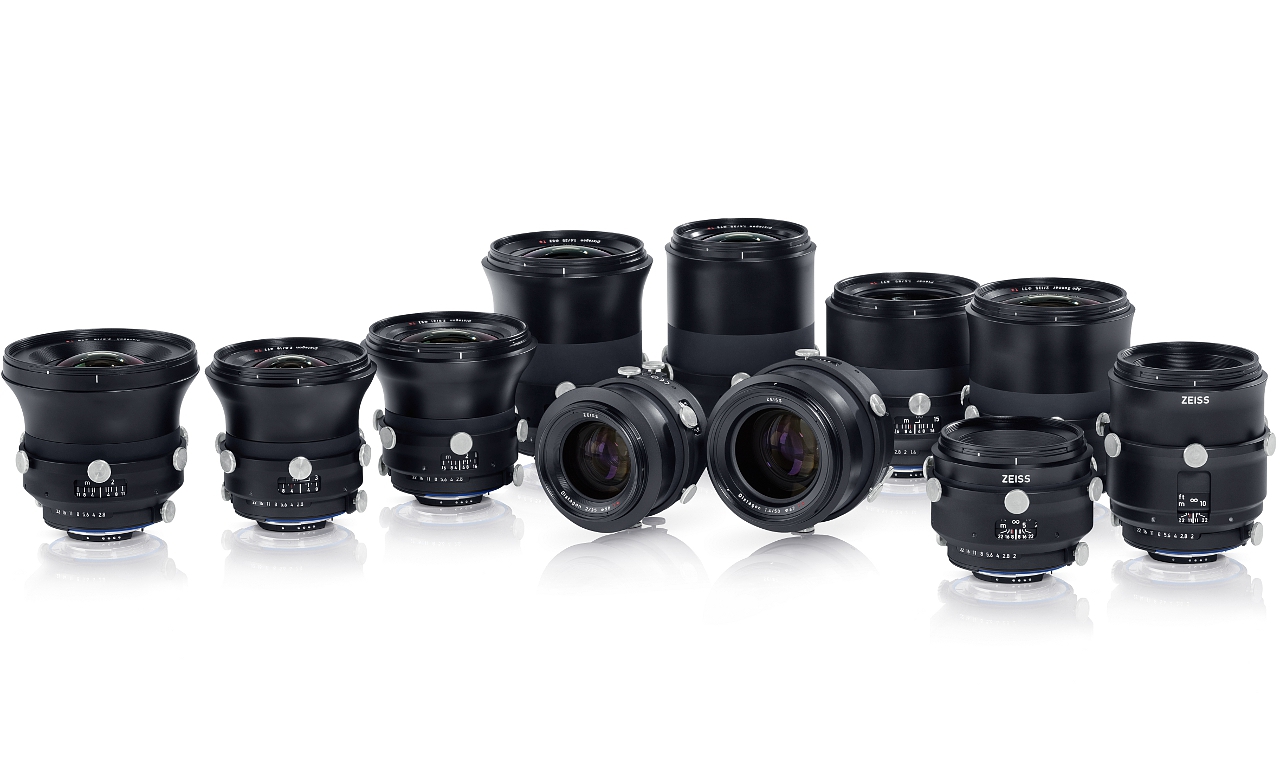

Interlock Lenses

Professional lenses with optimized locking screws.

All ZEISS Interlock® lenses offer exceptional image quality with high contrast for technical and industrial applications. They feature improved focus and aperture fixation and a rugged all-metal body. The lenses impress with their high imaging quality and precise manual focus. They are available with standard F-mount and standard M42 × 1 mount (45.5 mm flange focal length) for even more stability.

In the F-mount version, the aperture can be continuously adjusted using the de-click function, which enables precise exposure setting. The Interlock® family includes line sensors up to 43 mm (4 k – 8 k) or full format area sensors with 24 × 36 mm² (up to 42 Mpixel).

The ZEISS interlock lenses offer focal lengths from 15 mm to 135  mm and, together with the improved fixation, complete the lenses of the ZEISS Classic family.

Interlock, F Mount

Designation	Focal length [mm]	Angular Field diag. / hor. / vert. [°] (35 mm Format)	Free working distance [mm]	Aperture range	Filter threat
Interlock 2.8/15 ZF.2	15	110 / 100 / 76	90–∞	2.8–22	M95 × 1.0
Interlock 2.8/18 ZF.2	18	99.9 / 89.4 / 66.5	120–∞	2.8–22	M77 × 0.75
Interlock 2.8/21 ZF.2	21	90 / 81 / 59	90–∞	2.8–22	M82 × 0.75
Interlock 1.4/25 ZF.2	25	81.2 / 70.8 / 50.4	93–∞	1.4–16	M82 × 0.75
Interlock 1.4/35 ZF.2	35	64.2 / 55 / 38	140–∞	1.4–16	M72 × 0.75
Interlock 2/35 ZF.2	35	62 / 53 / 37	180–∞	2–22	M58 × 0.75
Interlock 1.4/50 ZF.2	50	46 / 39 / 26	340–∞	1.4–16	M67 × 0.75
Interlock 2/50 ZF.2	50	45 / 38 / 26	100–∞	2–22	M67 × 0.75
Interlock 1.4/85 ZF.2	85	29 / 24 / 16	650–∞	1.4–16	M77 × 0.75
Interlock 2/100 ZF.2	100	25 / 21 / 14	250–∞	2–22	M67 × 0.75
Interlock 2/135 ZF.2	135	18.7 / 15.6 / 10.5	620–∞	2–22	M77 × 0.75

Version: 07-01-2022

Interlock, M42 Mount

Designation	Focal length [mm]	Angular Field diag. / hor. / vert. [°] (35 mm Format)	Free working distance [mm]	Aperture range	Filter threat
Interlock 2.8/15-M42	15	110 / 100 / 76	90–∞	2.8–22	M95 × 1.0
Interlock 2.8/18-M42	18	99.9 / 89.4 / 66.5	120–∞	2.8–22	M77 × 0.75
Interlock 2.8/21-M42	21	90 / 81 / 59	90–∞	2.8–22	M82 × 0.75
Interlock 1.4/25-M42	25	81.2 / 70.8 / 50.4	93–∞	1.4–16	M82 × 0.75
Interlock 1.4/35-M42	35	64.2 / 55 / 38	140–∞	1.4–16	M72 × 0.75
Interlock 2/35-M42	35	62 / 53 / 37	180–∞	2–22	M58 × 0.75
Interlock 1.4/50-M42	50	46 / 39 / 26	340–∞	1.4–16	M67 × 0.75
Interlock 2/50-M42	50	45 / 38 / 26	100–∞	2–22	M67 × 0.75
Interlock 1.4/85-M42	85	29 / 24 / 16	650–∞	1.4–16	M77 × 0.75
Interlock 2/100-M42	100	25 / 21 / 14	250–∞	2–22	M67 × 0.75
Interlock 2/135-M42	135	18.7 / 15.6 / 10.5	620–∞	2–22	M77 × 0.75

Version: 07-01-2022

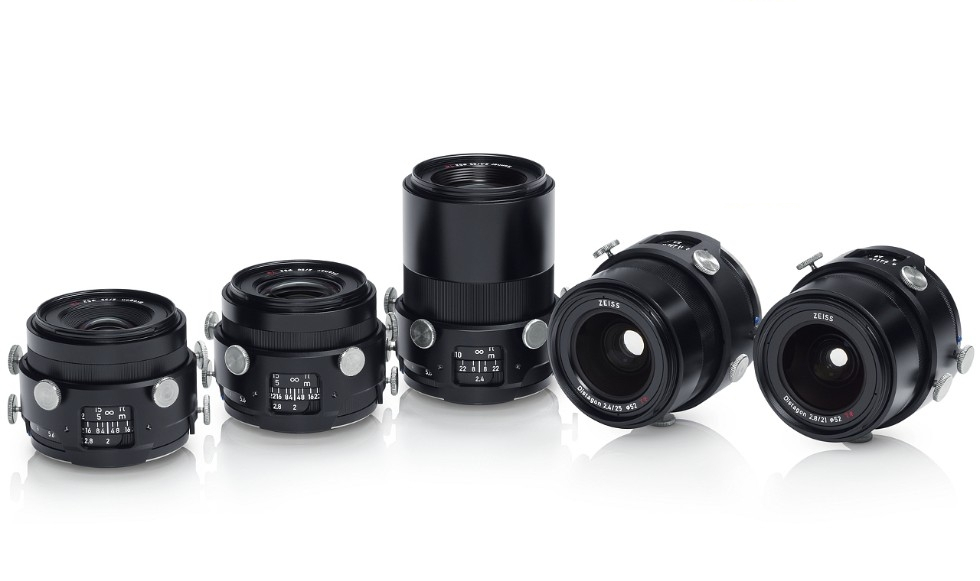

Interlock Compact Lenses

Compact lenses for large image circles.

The family of Interlock® compact lenses from ZEISS impresses with its high and consistent image quality and precise manual focus. Due to the low weight paired with compactness and their robust full metal housing, the lenses are suitable for rough industrial use. The lens family features a short M42 × 1 mount (18 mm FFD) and user-friendly mounting screws that allow for precise iris and focus fixation.

They fit line scan cameras with 43 mm sensors (4 k – 8 k) and area scan cameras with full format sensors of 36×24 mm² (up to 42 Mpixel). The most striking difference between the Interlock® compact lenses and conventional F-mount types is the M42 × 1 connection with a very short flange focal distance (FFD) of just 18.0 mm.

These lenses are key components in complex production processes (machine vision) as well as in optical metrology, medical applications, traffic surveillance, quality assurance, sports and many other applications.

The models are also available with E-Mount.

Interlock Compact, M42 Mount

Designation	Focal length [mm]	Angular Field diag. / hor. / vert. [°] (24 × 36 mm² Format)	Free working distance [mm]	Aperture range	Filter threat
Interlock Compact 2.8/21-M42	21	91 / 81 / 59	160–∞	2.8–22	M52 × 0.75
Interlock Compact 2.4/25-M42	25	81 / 71 / 51	163–∞	2.4–22	M52 × 0.75
Interlock Compact 2/35-M42	35	63 / 54 / 38	230–∞	2.0–22	M52 × 0.75
Interlock Compact 2/50-M42	50	46 / 39 / 26	370–∞	2.0–22	M52 × 0.75
Interlock Compact 2.4/85-M42	85	28.6 / 24.1 / 16.2	685–∞	2.4–22	M52 × 0.75

Version: 07-06-2022

Interlock Compact, E Mount

Designation	Focal length [mm]	Angular Field diag. / hor. / vert. [°] (24 × 36 mm² Format)	Free working distance [mm]	Aperture range	Filter threat
Interlock Compact 2.8/21 E	21	91 / 81 / 59	160–∞	2.8–22	M52 × 0.75
Interlock Compact 2.4/25 E	25	81 / 71 / 51	163–∞	2.4–22	M52 × 0.75
Interlock Compact 2/35 E	35	63 / 54 / 38	230–∞	2.0–22	M52 × 0.75
Interlock Compact 2/50 E	50	46 / 39 / 26	370–∞	2.0–22	M52 × 0.75
Interlock Compact 2.4/85 E	85	28.6 / 24.1 / 16.2	685–∞	2.4–22	M52 × 0.75
