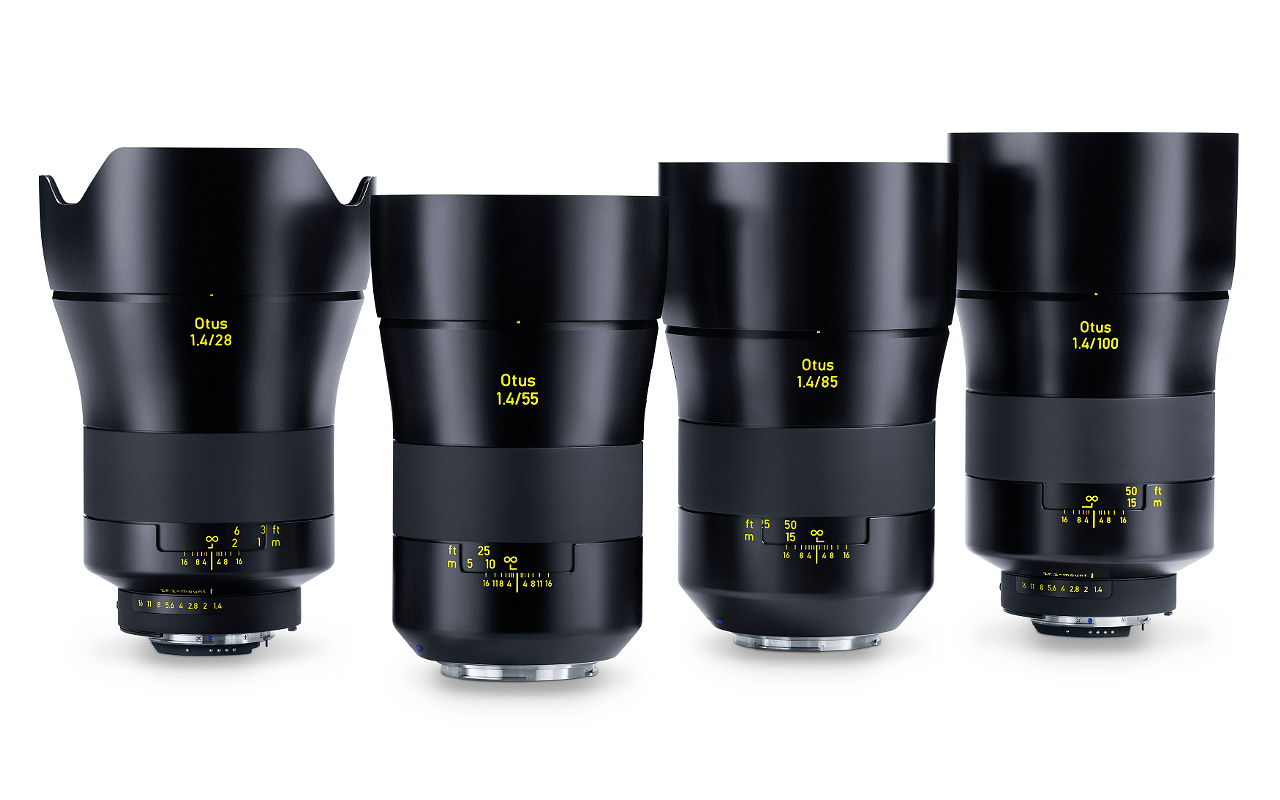

The Otus lenses from ZEISS enable fast imaging in low light with practically no aberrations. The lenses work at f/1.4 without any loss of performance and you hardly see any color fringes even when using 3.5 µm pixels. Build quality and an extremely smooth rotation angle offer the very best in usability.
All ZEISS Otus lenses cover line sensors up to 43 mm (12 k) or full-frame area sensors with 24 × 36 mm² (71 or more Mpixel) and are available with a standard F-mount. With focal lengths from 28 mm to 100 mm, the Otus lenses are a key component in complex production processes (Machine Vision) as well as in optical metrology, medical applications, traffic surveillance, quality assurance, sports and many other applications. Here they prove their outstanding image performance and reliability.
Designation | Focal length [mm] | Angular Field diag. / hor. / vert. [°] (24 × 36 mm² Format) | Free working distance [m] | Aperture range | Filter threat |
---|---|---|---|---|---|
Otus T* 1.4/28 ZF.2 | 28 | 75 / 65 / 46 | 0.15–∞ | 1.4–16 | M95 × 1.0 |
Otus T* 1.4/55 ZF.2 | 55 | 43.7 / 36.7 / 24.9 | 0.33–∞ | 1.4–16 | M77 × 0.75 |
Otus T* 1.4/85 ZF.2 | 85 | 28.24 / 23.71 / 15.97 | 0.65–∞ | 1.4–16 | M86 × 1.0 |
Otus T* 1.4/100 ZF.2 | 100 | 24.1 / 20.2 / 13.6 | 0.83–∞ | 1.4–16 | M86 × 1.0 |
Designation | Focal length [mm] | Angular Field diag. / hor. / vert. [°] (24 × 36 mm² Format) | Free working distance [m] | Aperture range | Filter threat |
---|---|---|---|---|---|
Otus T* 1.4/28 ZE | 28 | 75 / 65 / 46 | 0.15–∞ | 1.4–16 | M95 × 1.0 |
Otus T* 1.4/55 ZE | 55 | 43.7 / 36.7 / 24.9 | 0.33–∞ | 1.4–16 | M77 × 0.75 |
Otus T* 1.4/85 ZE | 85 | 28.24 / 23.71 / 15.97 | 0.65–∞ | 1.4–16 | M86 × 1.0 |
Otus T* 1.4/100 ZE | 100 | 24.1 / 20.2 / 13.6 | 0.83–∞ | 1.4–16 | M86 × 1.0 |
