| Description | Industrial lens by Carl Zeiss |
| Articlenumber (Eureca): | 06.11.0076 |
| Origin: | Germany |
| Manufacturer: | Carl Zeiss |
| Designation | Interlock 2.8/15 ZF.2 |
| Manufacturer ID | 2189-190 |
| Focal length | 15 mm |
| Mount | F |
| Aperture range | 2.8–22 |
| Format | 43 mm |
| Format | 1.7 ″ |
| Lens elements / Groups | 15 / 12 |
| Min. free working distance (object to sensor) [mm] | 250–∞ mm |
| Min. free working distance (object to sensor) [ft] | 0.82–∞ ft |
| Min. free working distance [mm] | 90–∞ mm |
| Min. free working distance [ft] | 0.29–∞ ft |
| Angular Field diag. / hor. / vert. | 110 / 100 / 76 ° (35 mm Format) |
| Diameter of image field [mm] | 43 mm |
| Diameter of image field [inch] | 1.7 ″ |
| Flange focal distance [mm] | 46.5 mm |
| Flange focal distance [inch] | ~1.8 ″ |
| Coverage at close range [mm] | 340 × 221 mm × mm |
| Coverage at close range [inch] | 13.4 × 8.7 ″ |
| Image ratio at MOD | 1:9 |
| Filter thread | M95 × 1.0 |
| Weight | 927 g |

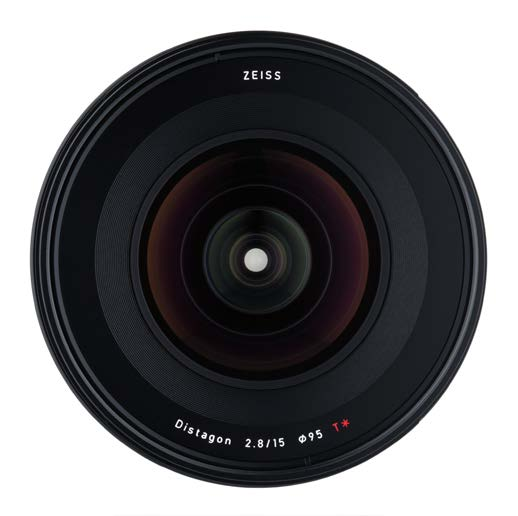

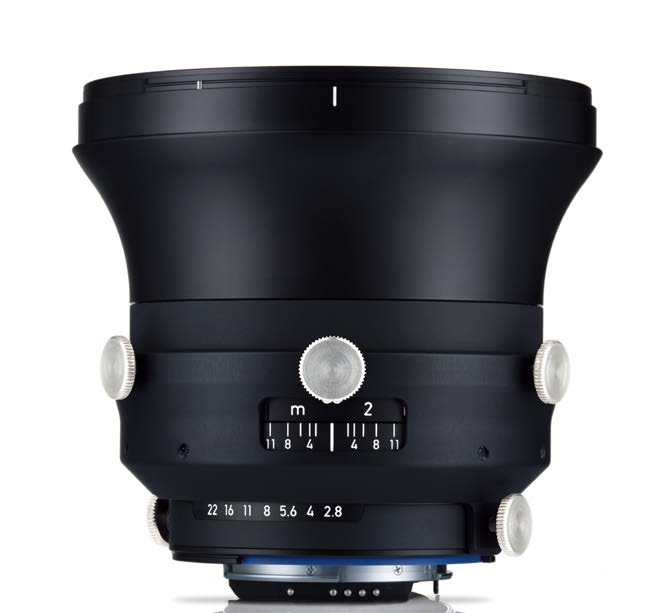

Lens
Documents for download:
More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 06.28.2022
