| Description | Industrial lens by Carl Zeiss |
| Articlenumber (Eureca): | 06.11.0135 |
| Origin: | Germany |
| Manufacturer: | Carl Zeiss |
| Designation | Interlock Compact 2/50 E |
| Manufacturer ID | 2239-128 |
| Focal length | 50 mm |
| Mount | E |
| Aperture range | 2.0–22 |
| Format | 43 mm |
| Format | 1.7 ″ |
| Lens elements / Groups | 6 / 4 |
| Min. free working distance (object to sensor) [mm] | 450–∞ mm |
| Min. free working distance (object to sensor) [ft] | 1.47–∞ ft |
| Min. free working distance [mm] | 370–∞ mm |
| Min. free working distance [ft] | 1.21–∞ ft |
| Angular Field diag. / hor. / vert. | 46 / 39 / 26 ° (24 × 36 mm² Format) |
| Diameter of image field [mm] | 43.0 mm |
| Diameter of image field [inch] | 1.7 ″ |
| Flange focal distance [mm] | 18.0 mm |
| Flange focal distance [inch] | 0.71 ″ |
| Coverage at close range [mm] | 248 × 165 mm × mm |
| Coverage at close range [inch] | 9.7 × 6.5 ″ |
| Image ratio at MOD | 1:6.9 |
| Filter thread | M52 × 0.75 |
| Weight | 374 g |

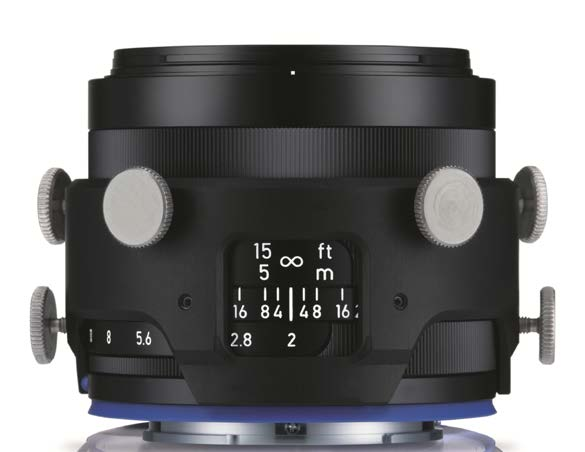

Lens
Documents for download:

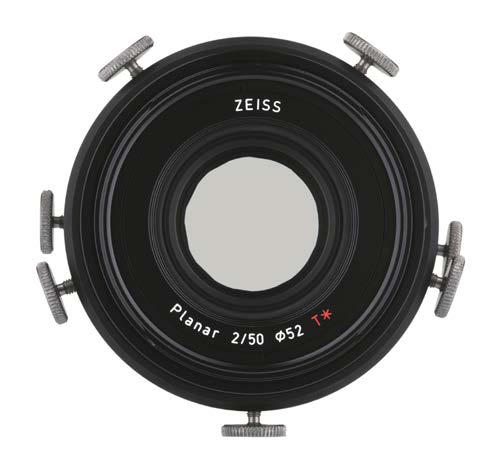

More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.06.2022
