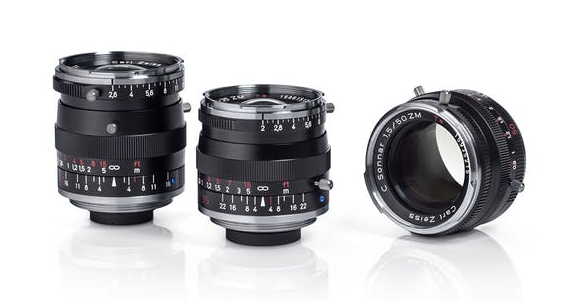

Classic Series

  • Classic product design and high imaging performance
  • Housing and focusing ring made entirely of metal
  • Ideal for photo and film applications thanks to mechanical stops at the close-up limit and at infinity

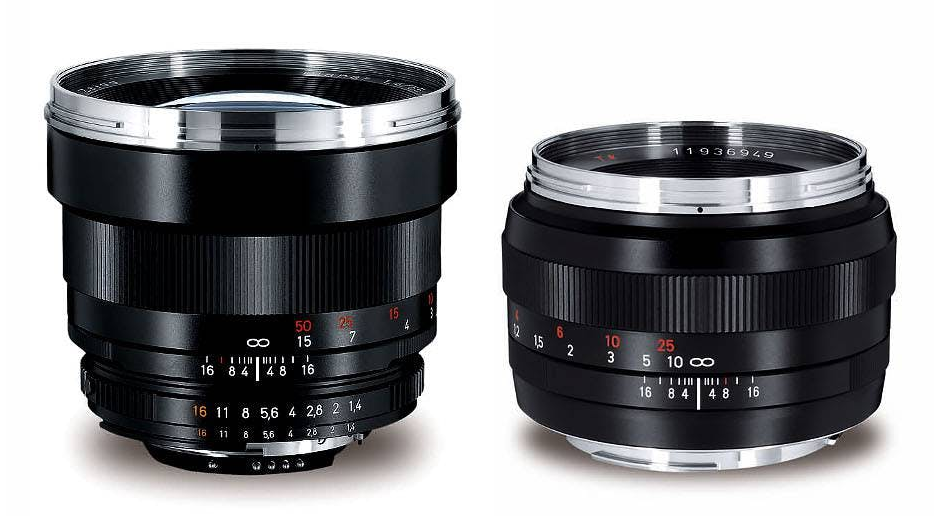

F Mount

DesignationFocal
length
[mm]
Angle of view (d/h/v)
(24x36 mm format)
[degree]
Free working
distance
[m]
Aperture
range
Planar T* 1.4/50 ZF.25045 / 38 / 260,35–∞1.4–16
Planar T* 1.4/85 ZF.28529 / 24 / 160,88–∞1.4–16

Version: 04-16-2020

EF Mount

DesignationFocal
length
[mm]
Angle of view (d/h/v)
(24x36 mm format)
[degree]
Free working
distance
[m]
Aperture
range
Planar T* 1.4/50 ZE5045 / 38 / 260,35–∞1.4–16
Planar T* 1.4/85 ZE8529 / 24 / 160,88–∞1.4–16

Version: 04-16-2020

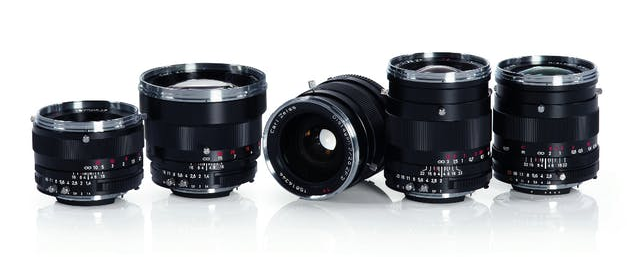

F Mount, Industrial Version

DesignationFocal
length
[mm]
View angle
dia./hor./ver.
(4/3″ Format)
[degree]
Free working
distance
[mm]
Aperture
range
Distagon T* 2.8/25 ZF.2-I2580 / 70 / 5060–∞2.8–22
Distagon T* 2/28 ZF.2-I2874 / 65 / 45120–∞2–22
Distagon T* 2/35 ZF-I3562 / 53 / 37180–∞2–22
Planar T* 1.4/50 ZF-I5045 / 38 / 26351–∞1.4–16
Planar T* 1.4/85 ZF.2-I8529 / 24 / 16883–∞1.4–16

Version: 04-16-2020

M42 Mount, Industrial Version

DesignationFocal
length
[mm]
View angle
dia./hor./ver.
(4/3″ Format)
[degree]
Free working
distance
[mm]
Aperture
range
Distagon T* 2.8/25 Z-M42-I2580 / 70 / 5060–∞2.8–22
Distagon T* 2/28 Z-M42-I2874 / 65 / 45120–∞2–22
Distagon T* 2/35 Z-M42-I3562 / 53 / 37180–∞2–22
Planar T* 1.4/50 Z-M42-I5045 / 38 / 26351–∞1.4–16
Planar T* 1.4/85 Z-M42-I8529 / 24 / 16883–∞1.4–16

Version: 04-16-2020
