Interlock 2/35-M42

DescriptionIndustrial lens by Carl Zeiss
Articlenumber (Eureca):06.11.0106
Origin: Germany
Manufacturer: Carl Zeiss
DesignationInterlock 2/35-M42
Manufacturer ID2213-452
Focal length35 mm

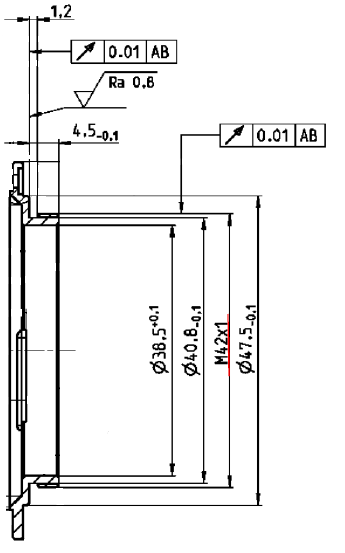

MountM42
Aperture range2–22
Format43 mm
Format1.7 ″
Lens elements / Groups9 / 7
Min. free working distance (object to sensor) [mm]300–∞ mm
Min. free working distance (object to sensor) [ft]0.98–∞ ft
Min. free working distance [mm]180–∞ mm
Min. free working distance [ft]0.59–∞ ft
Angular Field diag. / hor. / vert.62 / 53 / 37 ° (35 mm Format)
Diameter of image field [mm]43 mm
Diameter of image field [inch]1.7 ″
Flange focal distance [mm]45.5 mm
Flange focal distance [inch]~1.8 ″
Coverage at close range [mm]127 × 190 mm × mm
Coverage at close range [inch]5.0 × 7.5 ″
Image ratio at MOD1:5.3
Filter threadM58 × 0.75
Weight716 g

Lens

To the product series

  • Fast f/2 aperture
  • Precise manual focus
  • Robust full-metal construction
  • Continuous aperture adjustment or click stop
  • For industrial cameras up to sensor sizes of 24 × 36 mm² or 41 mm line sensors
  • High optical performance both at infinity and at 1:5.3 scale
  • Features special screws to fix focus and aperture settings even under harsh conditions





Documents for download:

Data sheet



Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 06.29.2022
