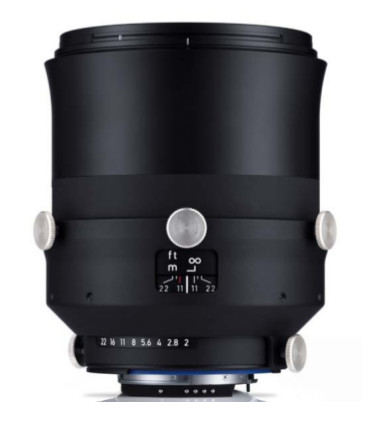

| Description | Industrial lens by Carl Zeiss |
| Articlenumber (Eureca): | 06.11.0090 |
| Origin: | Germany |
| Manufacturer: | Carl Zeiss |
| Designation | Interlock 2/135-M42 |
| Manufacturer ID | 2190-850 |
| Focal length | 135 mm |

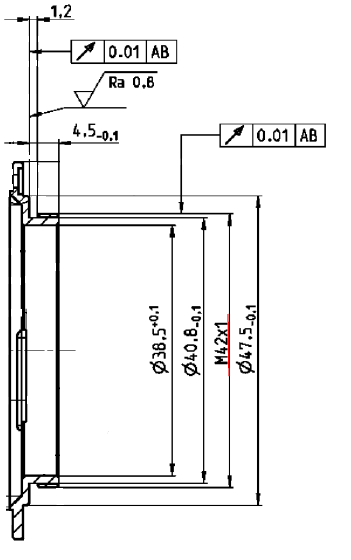

| Mount | M42 |
| Aperture range | 2–22 |
| Format | 43 mm |
| Format | 1.7 ″ |
| Lens elements / Groups | 11 / 8 |
| Min. free working distance (object to sensor) [mm] | 800–∞ mm |
| Min. free working distance (object to sensor) [ft] | 2.62–∞ ft |
| Min. free working distance [mm] | 620–∞ mm |
| Min. free working distance [ft] | 1.37–∞ ft |
| Angular Field diag. / hor. / vert. | 18.7 / 15.6 / 10.5 ° (35 mm Format) |
| Diameter of image field [mm] | 43 mm |
| Diameter of image field [inch] | 1.7 ″ |
| Flange focal distance [mm] | 45.5 mm |
| Flange focal distance [inch] | ~1.8 ″ |
| Coverage at close range [mm] | 145 × 96 mm × mm |
| Coverage at close range [inch] | 5.7 × 3.8 ″ |
| Image ratio at MOD | 1:4 |
| Filter thread | M77 × 0.75 |
| Weight | 1126 g |
Lens
Documents for download:
More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.01.2022
