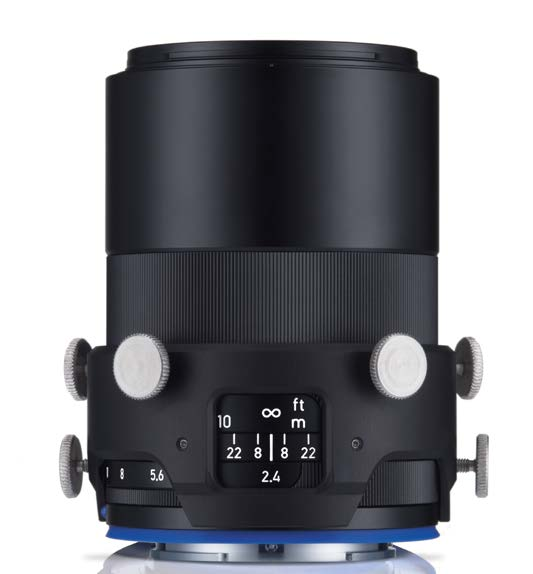

Interlock Compact 2.4/85 E

DescriptionIndustrial lens by Carl Zeiss
Articlenumber (Eureca):06.11.0136
Origin: Germany
Manufacturer: Carl Zeiss
DesignationInterlock Compact 2.4/85 E
Manufacturer ID2239-129
Focal length85 mm
MountE
Aperture range2.4–22
Format43 mm
Format1.7 ″
Lens elements / Groups7 / 7
Min. free working distance (object to sensor) [mm]800–∞ mm
Min. free working distance (object to sensor) [ft]2.62 ft
Min. free working distance [mm]685–∞ mm
Min. free working distance [ft]2.25–∞ ft
Angular Field diag. / hor. / vert.28.6 / 24.1 / 16.2 ° (24 × 36 mm² Format)
Diameter of image field [mm]43.0 mm
Diameter of image field [inch]1.7 ″
Flange focal distance [mm]18.0 mm
Flange focal distance [inch]0.71 ″
Coverage at close range [mm]258 × 172 mm × mm
Coverage at close range [inch]10.1 × 6.8 ″
Image ratio at MOD1:7.2
Filter threadM52 × 0.75
Weight648 g

Lens

To the product series

  • Very compact but suitable to large image format
  • For industrial cameras up to sensor sizes of 24 × 36 mm² or 41 mm line scan sensors
  • Precise manual focusing
  • Robust full-metal construction
  • Features special screws to fix focus and aperture settings even in rough situations
  • Due to light weight resistant against vibrations and shocks
  • High contrast over the entire image field





Documents for download:

Data sheet



Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.06.2022
