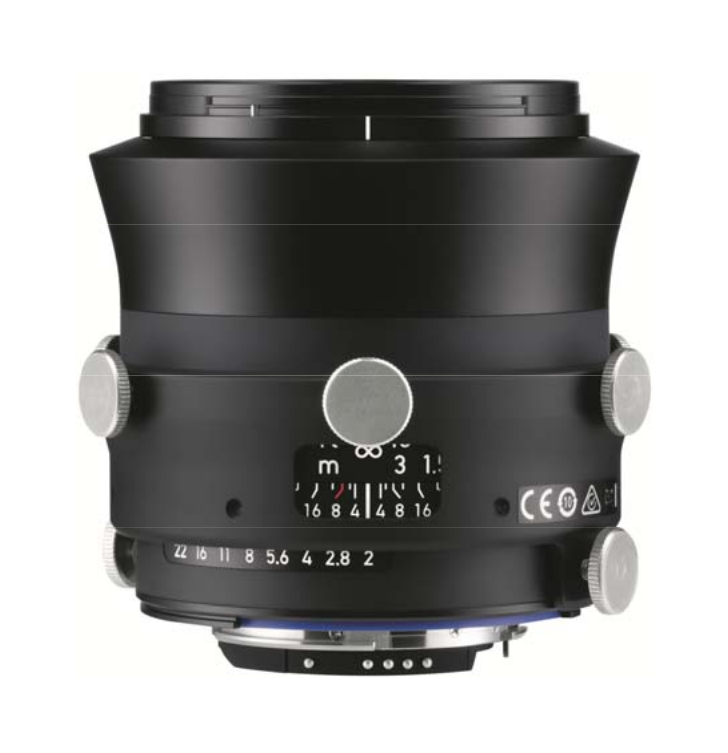

| Description | Industrial lens by Carl Zeiss |
| Articlenumber (Eureca): | 06.11.0101 |
| Origin: | Germany |
| Manufacturer: | Carl Zeiss |
| Designation | Interlock 2/35 ZF.2 |
| Manufacturer ID | 2213-451 |
| Focal length | 35 mm |
| Mount | F |
| Aperture range | 2–22 |
| Format | 43 mm |
| Format | 1.7 ″ |
| Lens elements / Groups | 9 / 7 |
| Min. free working distance (object to sensor) [mm] | 300–∞ mm |
| Min. free working distance (object to sensor) [ft] | 0.98–∞ ft |
| Min. free working distance [mm] | 180–∞ mm |
| Min. free working distance [ft] | 0.59–∞ ft |
| Angular Field diag. / hor. / vert. | 62 / 53 / 37 ° (35 mm Format) |
| Diameter of image field [mm] | 43 mm |
| Diameter of image field [inch] | 1.7 ″ |
| Flange focal distance [mm] | 46.5 mm |
| Flange focal distance [inch] | ~1.8 ″ |
| Coverage at close range [mm] | 127 × 190 mm × mm |
| Coverage at close range [inch] | 5.0 × 7.5 ″ |
| Image ratio at MOD | 1:5.3 |
| Filter thread | M58 × 0.75 |
| Weight | 716 g |
Lens
Documents for download:

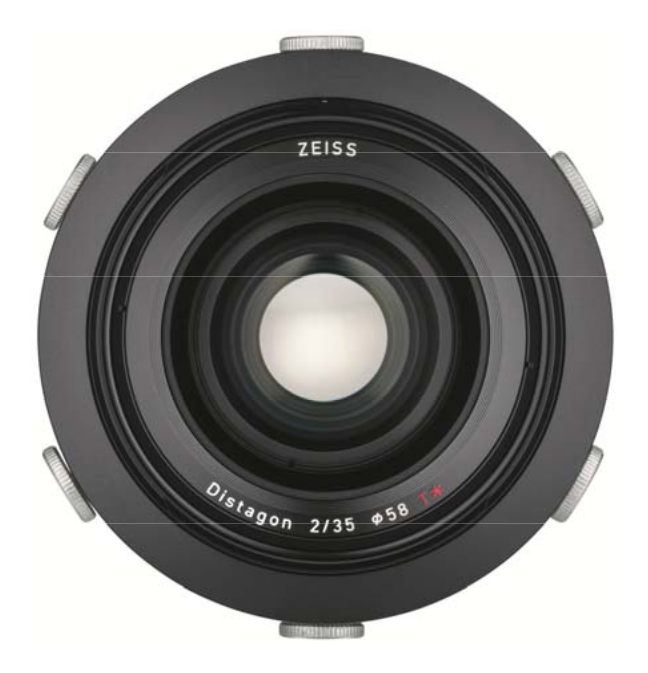

More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 06.29.2022
