| Description | Industrial lens by Carl Zeiss |
| Articlenumber (Eureca): | 06.11.0104 |
| Origin: | Germany |
| Manufacturer: | Carl Zeiss |
| Designation | Interlock 1.4/25-M42 |
| Manufacturer ID | 2219-421 |
| Focal length | 25 mm |

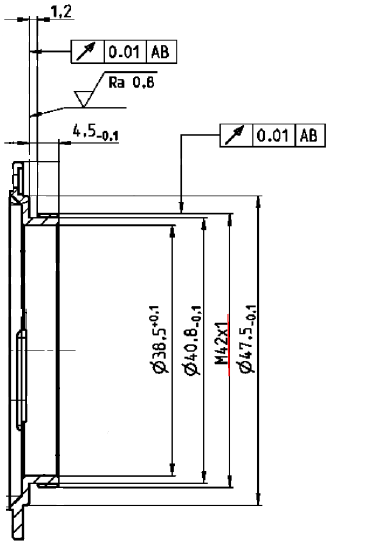

| Mount | M42 |
| Aperture range | 1.4–16 |
| Format | 43 mm |
| Format | 1.7 ″ |
| Lens elements / Groups | 15 / 13 |
| Min. free working distance (object to sensor) [mm] | 252–∞ mm |
| Min. free working distance (object to sensor) [ft] | 0.83–∞ ft |
| Min. free working distance [mm] | 93–∞ mm |
| Min. free working distance [ft] | 0.31–∞ ft |
| Angular Field diag. / hor. / vert. | 81.2 / 70.8 / 50.4 ° (35 mm Format) |
| Diameter of image field [mm] | 43 mm |
| Diameter of image field [inch] | 1.69 ″ |
| Flange focal distance [mm] | 45.5 mm |
| Flange focal distance [inch] | ~1.8 ″ |
| Coverage at close range [mm] | 166 × 110 mm × mm |
| Coverage at close range [inch] | 6.5 × 4.3 ″ |
| Image ratio at MOD | 1:4.6 |
| Filter thread | M82 × 0.75 |
| Weight | 1218 g |
Lens
Documents for download:
More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 06.28.2022
