| Description | SLR Lens by Carl Zeiss |
| Articlenumber (Eureca): | 06.11.0046 |
| Origin: | Germany |
| Manufacturer: | Carl Zeiss |

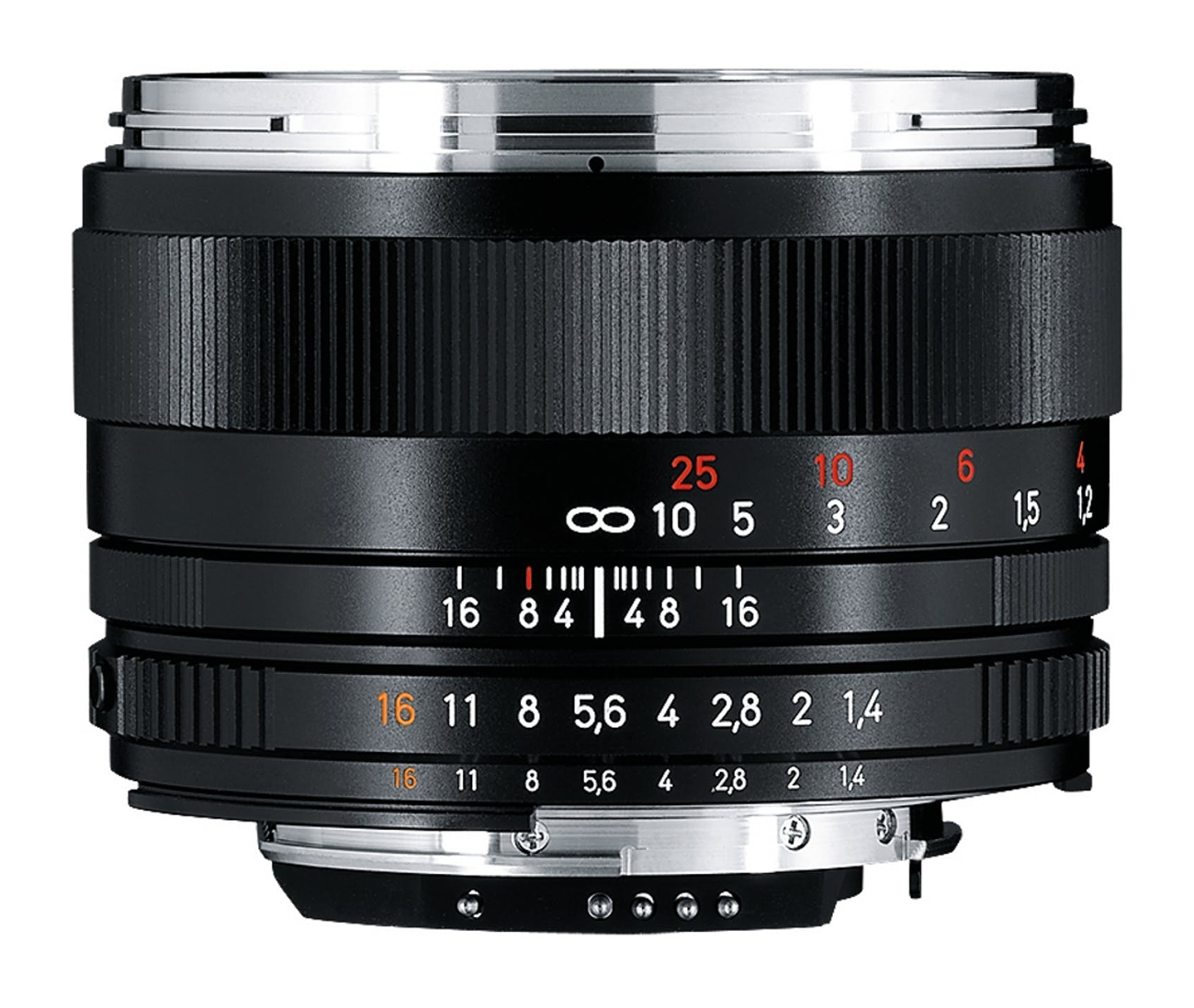

| Designation | Planar T* 1.4/50 ZF.2 |
| Manufacturer ID | 1767-826 |
| Focal length | 50 mm |
| Aperture range | 1.4–16 |
| Mount | F |

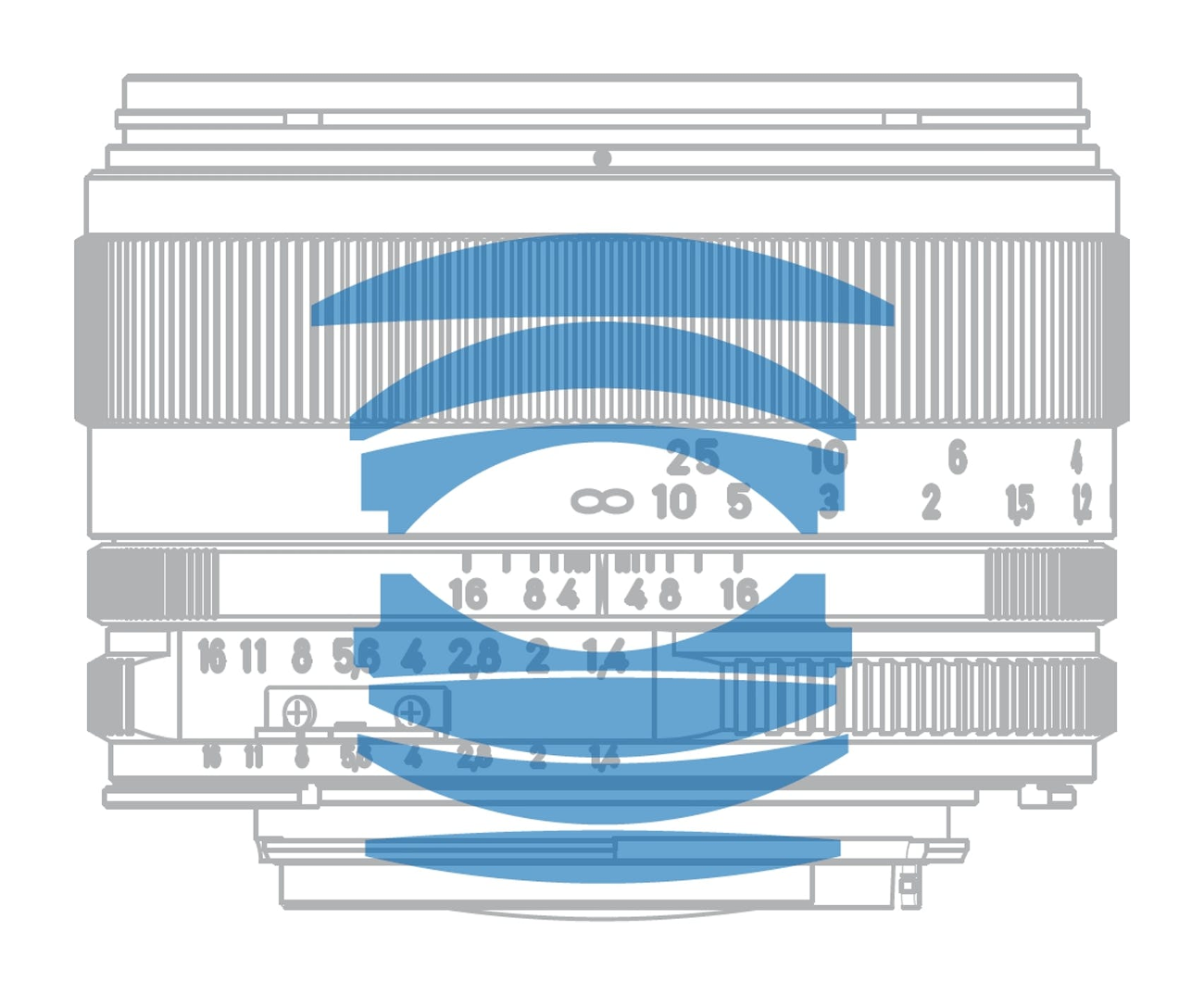

| Lens elements / Groups | 7 / 6 |
| Format compatibility | Full Frame |
| Focus range [m] | 0.45–∞ m |
| Focus range [inch] | 17.72–∞ ″ |
| Min. free working distance [m] | 0.35–∞ m |
| Min. free working distance [inch] | 13.78–∞ ″ |
| Angular Field diag. / hor. / vert. | 45 / 38 / 26 ° (24 × 36 mm² Format) |
| Diameter of image field [mm] | 43 mm |
| Diameter of image field [inch] | 1.69 ″ |
| Flange focal distance [mm] | 46.5 mm |
| Flange focal distance [inch] | 1.83 ″ |
| Coverage at close range [inch] | 6.30 × 9.45 ″ |
| Coverage at close range [mm] | 160 × 240 mm × mm |
| Image ratio at MOD | 1:6.7 |
| Filter thread | M58 × 0.75 |
| Entrance pupil position (in front of image plane) [mm] | 54.13 mm |
| Entrance pupil position (in front of image plane) [inch] | 2.13 ″ |
| Rotation angle of focusing ring (inf – MOD) | 223 ° |

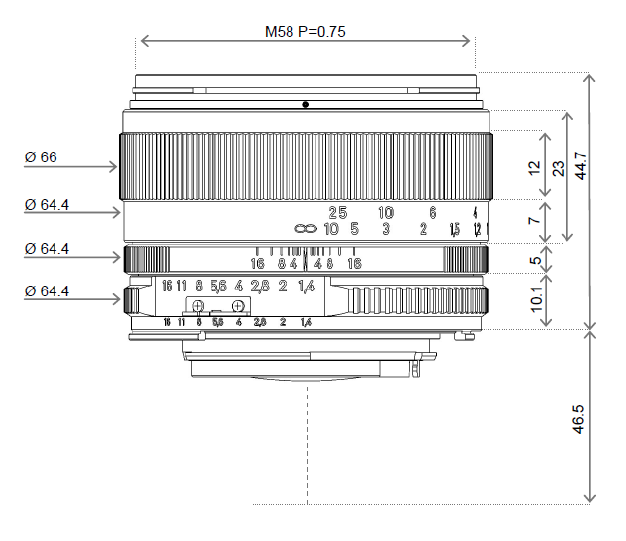

| Diameter max. [mm] | 66.0 mm |
| Diameter max. [inch] | 2.60 ″ |
| Diameter of focusing ring [mm] | 66.0 mm |
| Diameter of focusing ring [inch] | 2.60 ″ |
| Length (without lens cap) [mm] | 45 mm |
| Length (without lens cap) [inch] | 1.77 ″ |
| Length (with lens cap) [mm] | 69 mm |
| Length (with lens cap) [inch] | 2.72 ″ |
| Weight | 330 g |
Lens
Facial expressions and facial features convey a person's character. A sparkle in the eyes, fine wrinkles and color nuances can tell a whole life story. With its versatile standard focal length, the ZEISS Planar T* 1.4/50 knows exactly how to express character: natural, illuminated and rich in contrast.
The focal length of the ZEISS Planar T* 1.4/50 corresponds to that of the human eye. Outstanding features are its bright light and exceptional compactness. This lens produces pleasing portrait quality at its widest aperture and sharpens well beyond f/4 for any general purpose application.
Documents for download:
More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
