Description | Industrial lens by Carl Zeiss |
Articlenumber (Eureca): | 06.11.0083 |
Origin: | Germany |
Manufacturer: | Carl Zeiss |
Designation | Distagon T* 2/28 Z-M42-I |
Old Designation | Distagon T* 2/28 M42-I |
Manufacturer ID | 1999-446 |
Focal length | 28 mm |

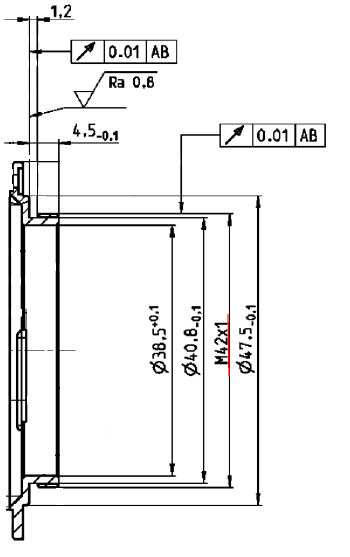

Mount | M42 |
Aperture range | 2–22 |
Lens elements / Groups | 10 / 8 |
Min. free working distance (object to sensor) [mm] | 240–∞ mm |
Min. free working distance (object to sensor) [ft] | 0.8–∞ ft |
Min. free working distance [mm] | 120–∞ mm |
Min. free working distance [ft] | 0.4–∞ ft |
Angular Field diag. / hor. / vert. | 74 / 65 / 45 ° (35 mm Format) |
Diameter of image field [mm] | 43 mm |
Diameter of image field [inch] | 1.7 ″ |
Flange focal distance [mm] | 46.5 mm |
Flange focal distance [inch] | 1.8 ″ |
Coverage at close range [mm] | 113 × 169 mm × mm |
Coverage at close range [inch] | 4.5 × 6.7 ″ |
Image ratio at MOD | 1:4.7 |
Filter thread | M58 × 0.75 |
Weight | 500 g |
Documents for download:
More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 09.11.2023
