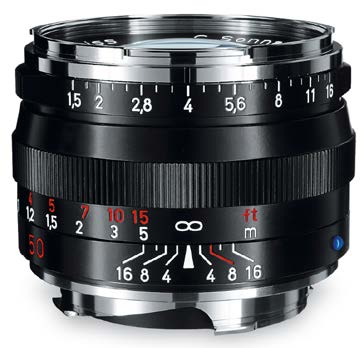

Description | Industrial lens by Carl Zeiss |
Articlenumber (Eureca): | 06.11.0118 |
Origin: | Germany |
Manufacturer: | Carl Zeiss |
Designation | C-Sonnar T*1.5/50mm Z-M42-I |
Old Designation | C-Sonnar T*1.5/50 M42-I |
Manufacturer ID | 2115-206 |
Focal length | 50 mm |
Mount | M42 |
Aperture range | 1.5–16 |
Lens elements / Groups | 6 / 4 |
Min. free working distance [mm] | 830–∞ mm |
Min. free working distance [ft] | 2.72–∞ ft |
Angular Field diag. / hor. / vert. | 45 / 38 / 26 ° (35 mm Format) |
Diameter of image field [mm] | 43 mm |
Diameter of image field [inch] | 1.7 ″ |
Flange focal distance [mm] | 26.8 mm |
Coverage at close range [mm] | 37 × 55 mm × mm |
Image ratio at MOD | 1:15 |
Filter thread | M46 × 0.75 |
Weight | 250 g |
