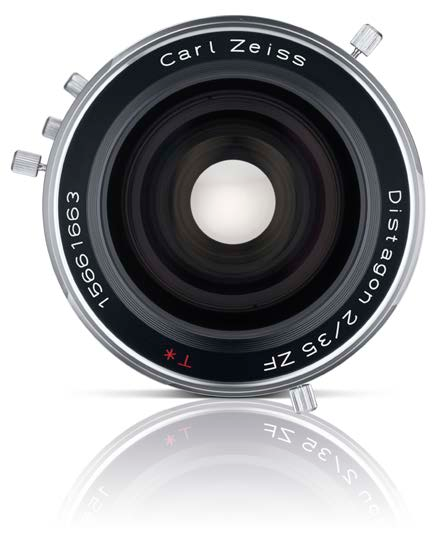

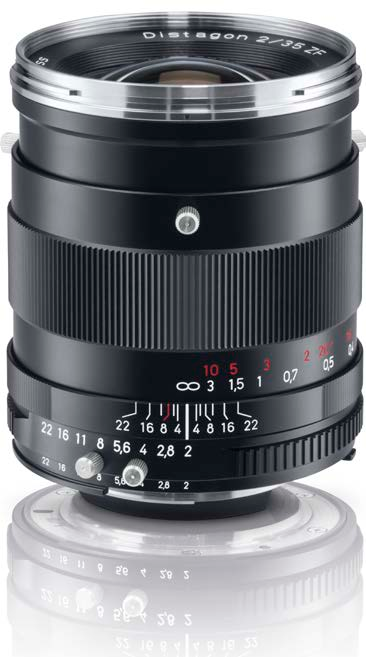

Distagon T* 2/35 Z-M42-I

DescriptionIndustrial lens by Carl Zeiss
Articlenumber (Eureca):06.11.0084
Origin: Germany
Manufacturer: Carl Zeiss
DesignationDistagon T* 2/35 Z-M42-I
Old DesignationDistagon T* 2/35 M42-I
Manufacturer ID1999-447
Focal length35 mm

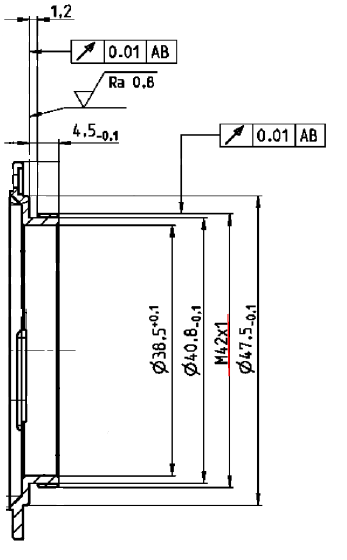

MountM42
Aperture range2–22
Lens elements / Groups9 / 7
Min. free working distance (object to sensor) [mm]300–∞ mm
Min. free working distance (object to sensor) [ft]0.98–∞ ft
Min. free working distance [mm]180–∞ mm
Min. free working distance [ft]0.59–∞ ft
Angular Field diag. / hor. / vert.62 / 53 / 37 ° (35 mm Format)
Diameter of image field [mm]43 mm
Diameter of image field [inch]1.7 ″
Flange focal distance [mm]46.5 mm
Flange focal distance [inch]1.8 ″
Coverage at close range [mm]128 × 191 mm × mm
Coverage at close range [inch]5.0 × 7.5 ″
Image ratio at MOD1:5.3

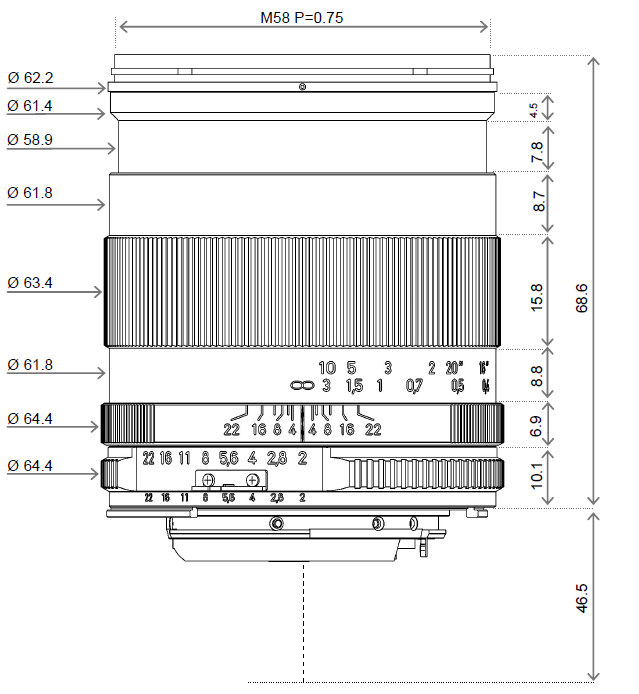

Filter threadM58 × 0.75
Weight530 g

Lens

To the product series

  • Fast f/2.0 aperture
  • Precise manual focus
  • Robust full-metal construction
  • Fixation for focus and aperture
  • Identical color reproduction of all models
  • For industrial cameras up to sensor sizes of 24 × 36 mm² or 43 mm line scan sensors





Documents for download:

Datasheet



Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 09.11.2023
