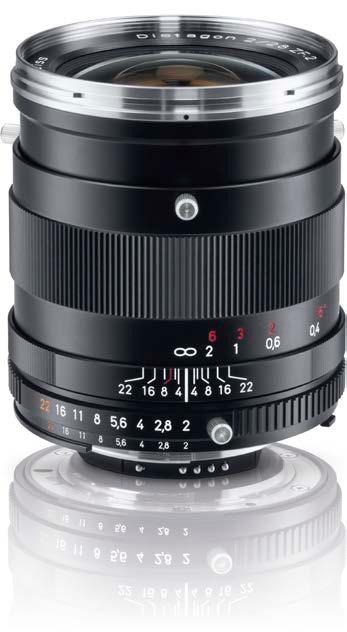

| Description | Industrial lens by Carl Zeiss |
| Articlenumber (Eureca): | 06.11.0072 |
| Origin: | Germany |
| Manufacturer: | Carl Zeiss |
| Designation | Distagon T* 2/28 ZF.2-I |
| Manufacturer ID | 1985-558 |
| Focal length | 28 mm |
| Mount | F-Mount |
| Aperture range | 2–22 |
| Lens elements / Groups | 10 / 8 |
| Min. free working distance (object to sensor) [mm] | 240–∞ mm |
| Min. free working distance (object to sensor) [ft] | 0.8–∞ ft |
| Min. free working distance [mm] | 120–∞ mm |
| Min. free working distance [ft] | 0.4–∞ ft |
| Angular Field diag. / hor. / vert. | 74 / 65 / 45 ° (35 mm Format) |
| Diameter of image field [mm] | 43 mm |
| Diameter of image field [inch] | 1.7 ″ |
| Flange focal distance [mm] | 46.5 mm |
| Flange focal distance [inch] | 1.8 ″ |
| Coverage at close range [mm] | 113 × 169 mm × mm |
| Coverage at close range [inch] | 4.5 × 6.7 ″ |
| Image ratio at MOD | 1:4.7 |
| Filter thread | M58 × 0.75 |
| Weight | 500 g |
Lens
Documents for download:

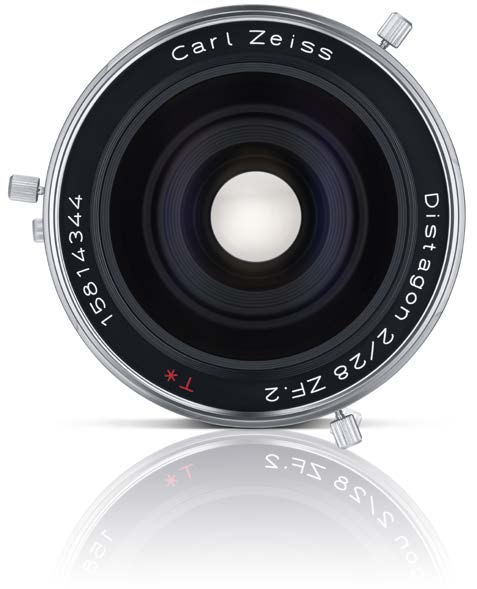

More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.12.2022
