OPT-CFLG8658

DescriptionUV Glue Curing Lights OPT-CFLG-UV by OPT
Articlenumber (Eureca):09.03.0230
Origin: China
Manufacturer: OPT
Output5A / 120W
Recommended ControllerOPT-DPA6024

Group photo series

To the product series

Product Features

  • Equipped with compact high power LED arrays for uniform illumination
  • Up to 2200 mW/cm² light intensity at 10 mm working distance (Tested with OPT-CFLG15658-UV405)

Application Cases

  • Secondary curing of cell phones and optical communication components
  • Film printing
  • Curing of ink, varnish and paint
  • Coating curing of building materials


Documents for download:

2D Drawing of the Lighting
Series Catalogue with full details



More pictures of the product:

Example photo light

Example photo light

Example photo light

Example photo light

Example photo light

Example photo light

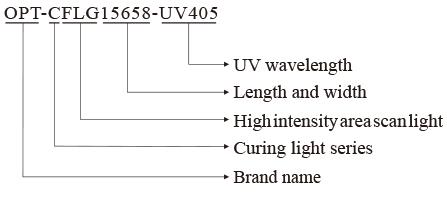

Selection Guide

Selection Guide

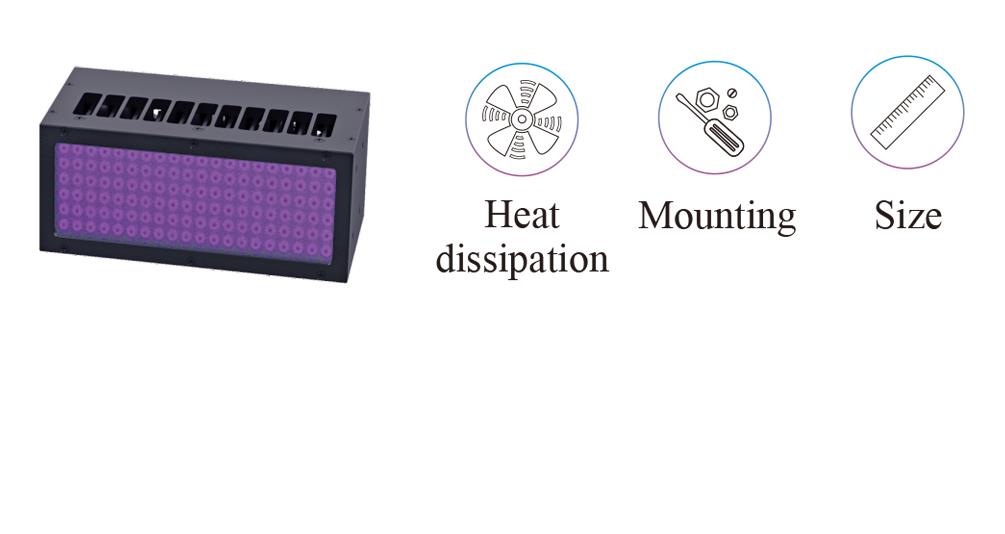

Customizable Items

Customizable Items

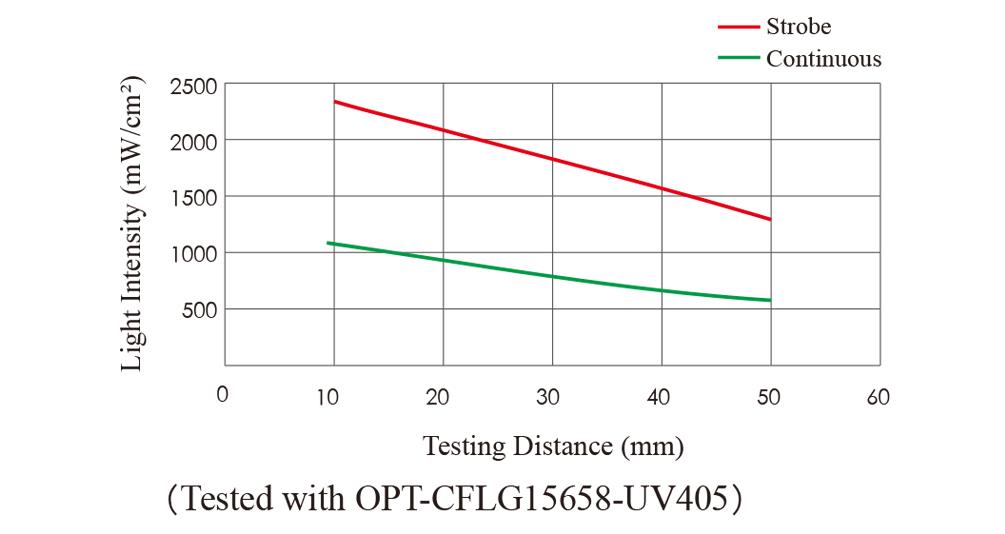

Light Intensity Chart

Light Intensity Chart

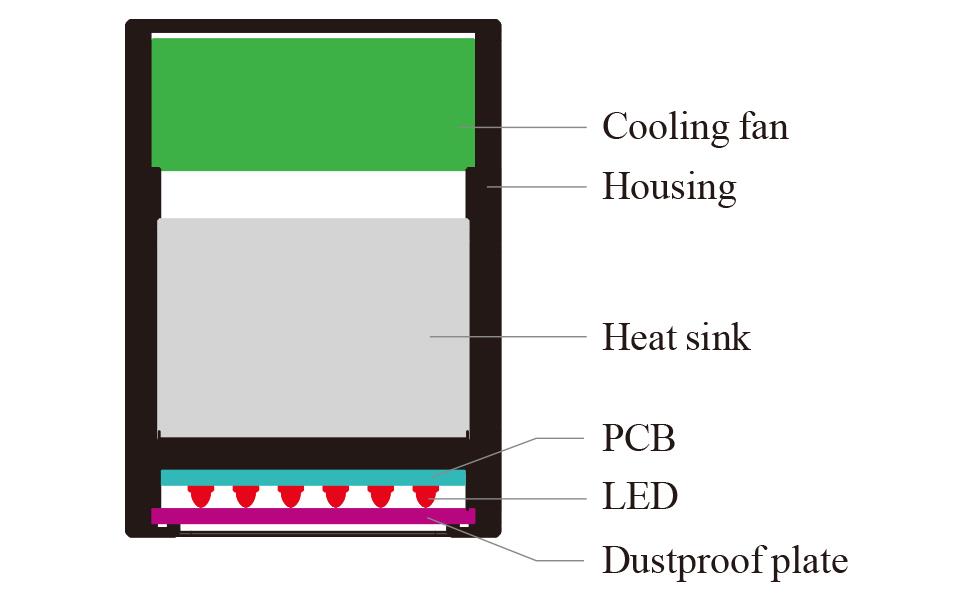

Section Structure Drawing

Section Structure Drawing

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 09.24.2020
