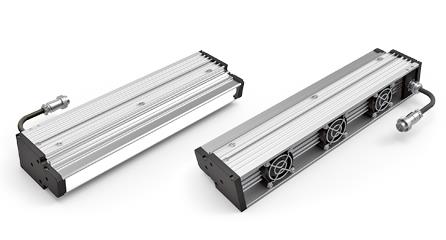

Description | Ultra High Intensity Line Scan Lights OPT-LSS by OPT |
Articlenumber (Eureca): | 09.03.0170 |
Origin: | China |
Manufacturer: | OPT |
Output R | 4.9A / 117.6W |
Output WB | 8.4A / 201.6W |
Length A | 524 mm |
Emitting Surface B | 504 mm |
Recommended Controller | OPT-DPA6024 |
Please choose your colour version: -R, -W, -B.

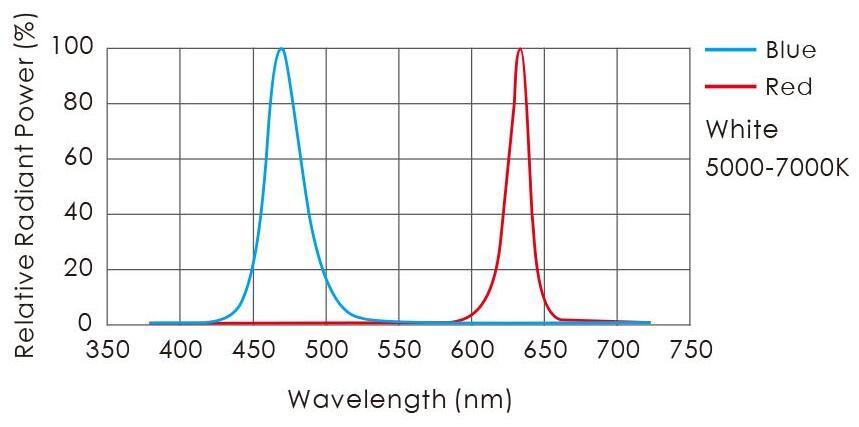

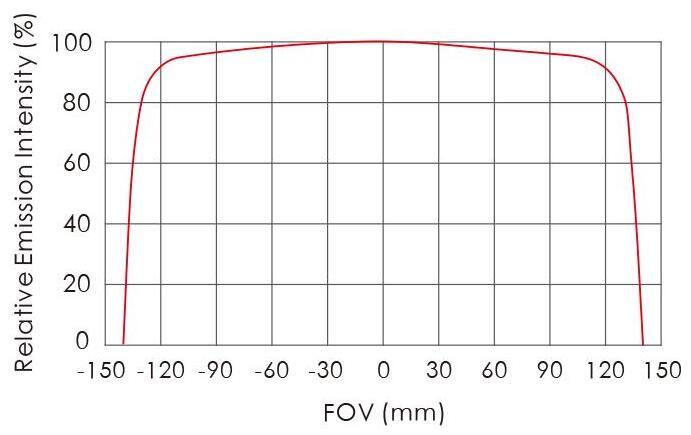

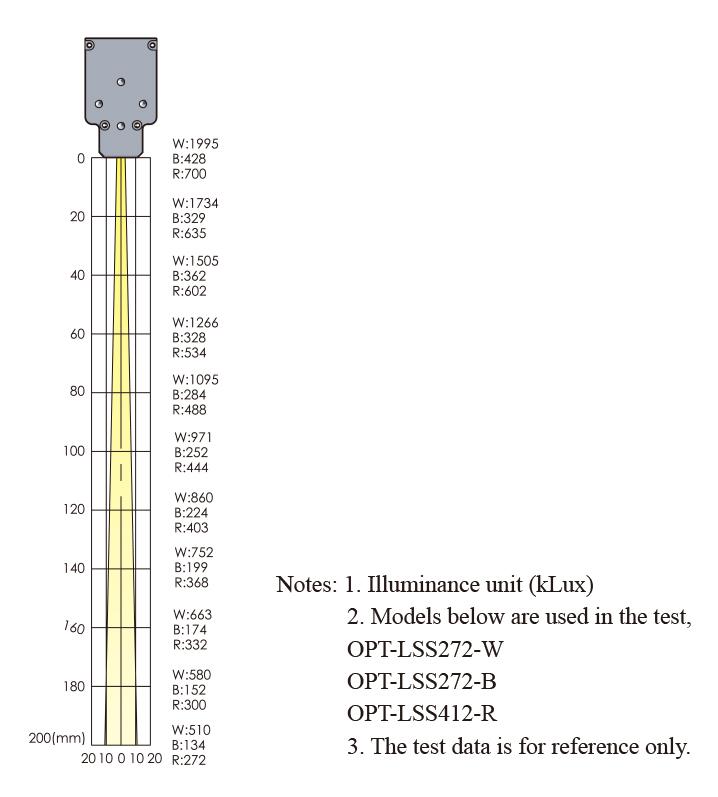

¹ Note to the image »Relative Radiant Power Distribution« (see below): The data shown is tested with OPT-LSS300-R at 20 mm WD. The graph is for reference only.
Documents for download:
2D Drawing of the Lighting
2D Drawing of the Lighting (R Version)
Series Catalogue with full details

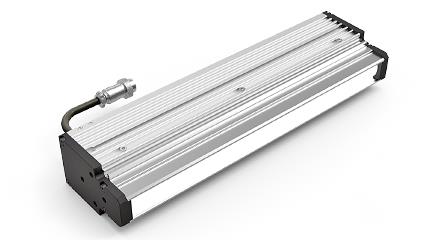

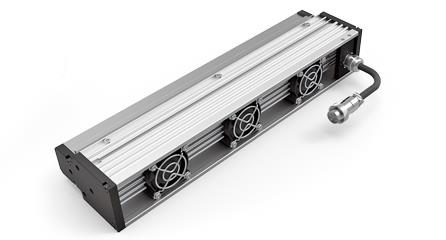

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 09.06.2020
