OPT-COG50

DescriptionHigh Intensity Coaxial Lights OPT-COG by OPT
Articlenumber (Eureca):09.03.0123
Origin: China
Manufacturer: OPT
Output R1A / 24W
Output WGB0.63A / 15.1W
Recommended ControllerOPT-DPA1024E, OPT-DPA2024E

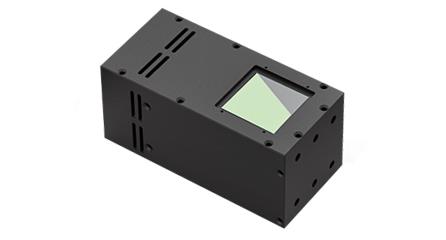

Example illustration green light

To the product series

Product Features

  • Four times higher intensity than OPT-CO series
  • Using heat sink and fan to dissipate heat

Application Cases

  • Defects detection on reflective surfaces
  • PCB OCR and pattern inspection
  • Mark positioning
  • QR code reading



Please choose out of four available colour versions: -R, -W, -G, -B.



Documents for download:

2D Drawing of the Lighting
Series Catalogue with full details



More pictures of the product:

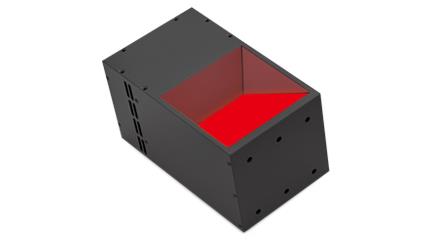

Example illustration of red light

Example illustration of red light

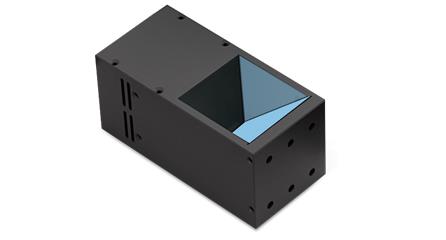

Example illustration of blue light

Example illustration of blue light

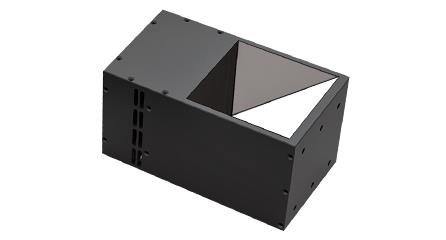

Example illustration of white light

Example illustration of white light

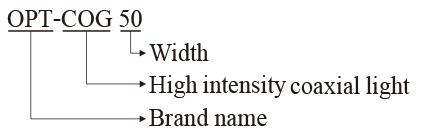

Selection Guide

Selection Guide

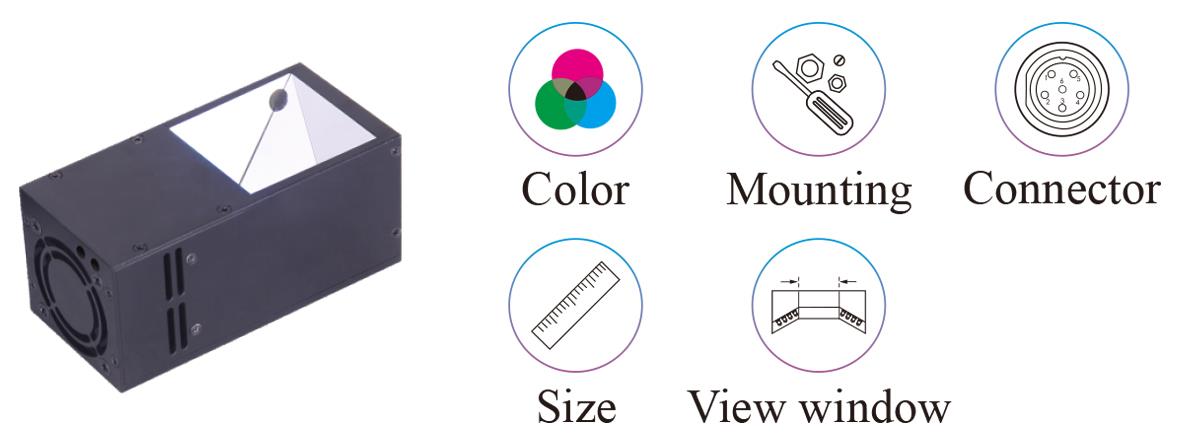

Customizable Items

Customizable Items

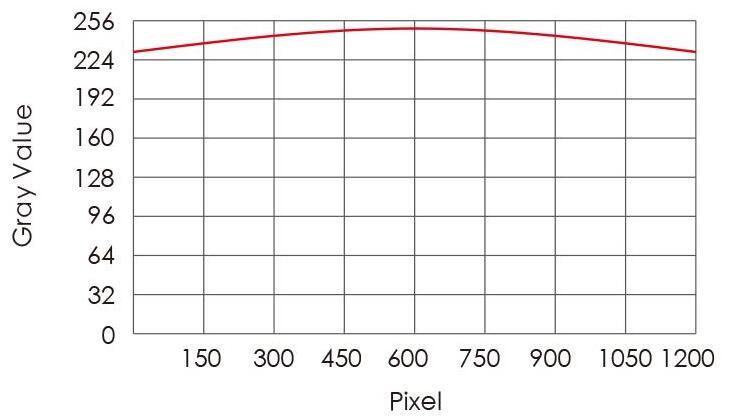

Uniformity chart

Uniformity chart

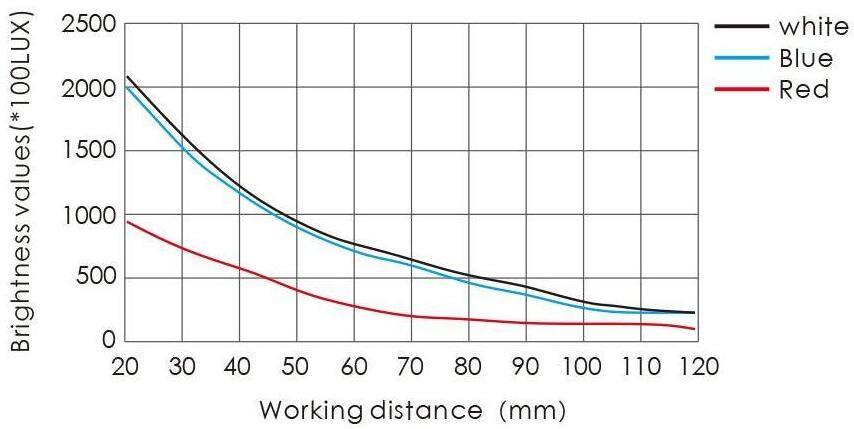

OPT-COG50 Intensity Change

OPT-COG50 Intensity Change

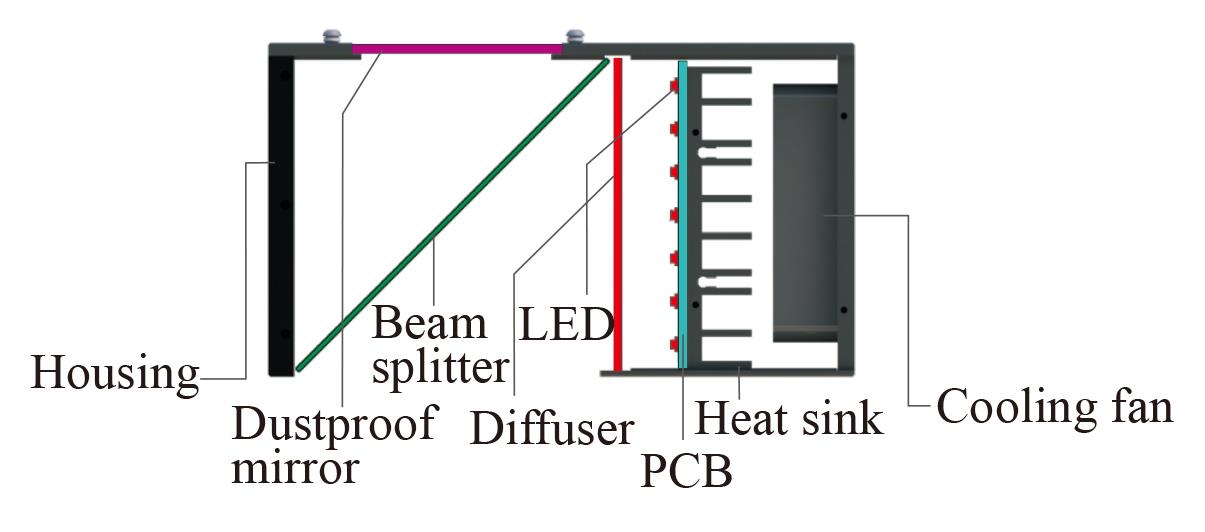

Section Structure Drawing

Section Structure Drawing

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 09.05.2020
