2 Megapixel Lenses


2 Megapixel Lenses, compact (1/2″ and 2/3″)

Ricoh's proven 2 megapixel lens series covers many applications: Choose the best lens for your focal length and format requirements.

These manual iris lenses are a great choice when it comes to 2 megapixel image capture in image processing. With their exceptionally compact design and high performance, they deliver outstanding results in the inspection of high-precision manufacturing (chip mounting, wafers, board fabrication, etc.).

Example photo

  • High-performance close-up lenses with 2 MP CCD and CMOS sensors
  • Sharp, high-resolution, high-contrast images with low loss of resolution from the center of the image to the edges
  • Very compact, lightweight and robust: ideal for factory automation
  • Lowest distortion: optimal for image recognition and image measurement
  • Constructed for industrial applications
  • 3 fixing screws each (plus 2 knurled screws) for focus and aperture – suitable for applications with vibrations and accelerations.
DesignationFocal
length
[mm]
IrisM.O.D.
[m]
Dimensions
Ø x length
[mm]
Format
[inch]
MountView
angle hor.
[degree]
Filter
threat
[mm]

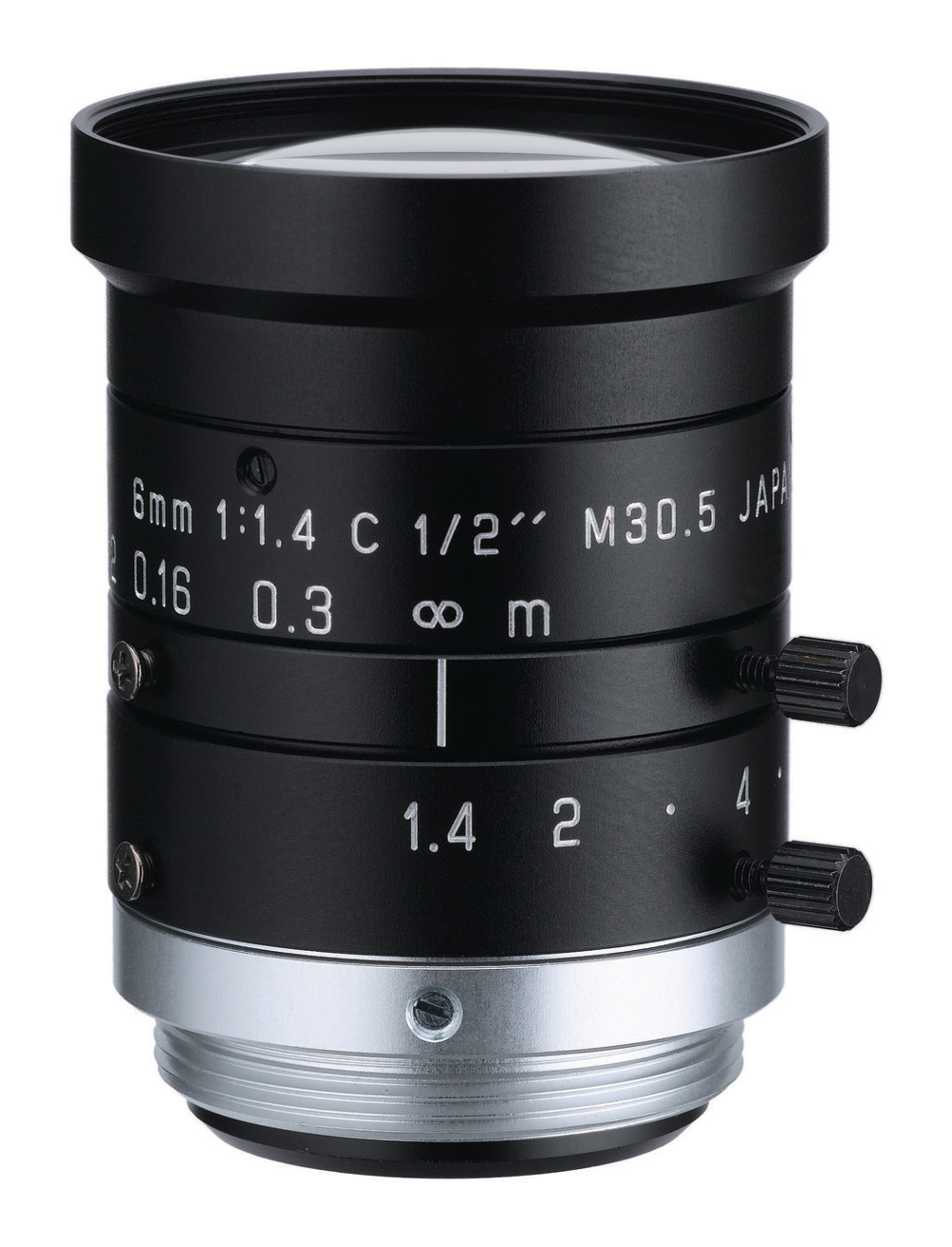

FL-HC0614-2M6.01.4–160.132.0 × 37.51/2C57.4do not use filter
FL-HC1214-2M12.01.4–160.2529.5 × 28.51/2C28.927.0 × 0.5
FL-CC1614-2M16.01.4–160.2529.5 × 33.22/3C31.027.0 × 0.5
FL-CC2514-2M25.01.4–160.2529.5 × 32.02/3C20.027.0 × 0.5
FL-CC3516-2M35.01.6–160.429.5 × 35.42/3C14.827.0 × 0.5
FL-CC5028-2M50.02.8–220.929.5 × 34.02/3C10.127.0 × 0.5
FL-CC7528-2M75.02.8–320.734.0 × 59.62/3C6.930.5 × 0.5

Version: 05-25-2022

2 Megapixel Lenses, (A) short M.O.D (version 2, consistently 2/3″

Version 2 lenses, which are now consistently 2/3″ by popular demand, expand the range offered by the existing and highly successful 2 megapixel series. The new design of the lenses has further improved all the optical values ​​so that these lenses are ideal for a wide range of applications.

Example photo

Bright pictures right up to the edge
The new lenses produce bright and high-resolution images from the center to the edges.
High resolution and high contrast across the entire lens
Very little loss of resolution and contrast at the lens edge. Even images right at the periphery are suitable for measurements and inspection tasks.
Shortened M.O.D. (Minimum Object Distance)
Thanks to newly developed optics, the minimum object distance has been shortened to 10 cm (except FL-CC5024A-2M: 30 cm). This allows even better close-ups without intermediate rings.
Low distortion
The distortion is particularly problematic for precise measurement tasks and exact applications. This was greatly reduced to 0.02 % to a maximum of 0.56 %.
DesignationFocal
length
[mm]
IrisM.O.D.
[m]
Dimensions
Ø x length
[mm]
Format
[inch]
MountView
angle hor.
[degree]
Filter
threat
[mm]

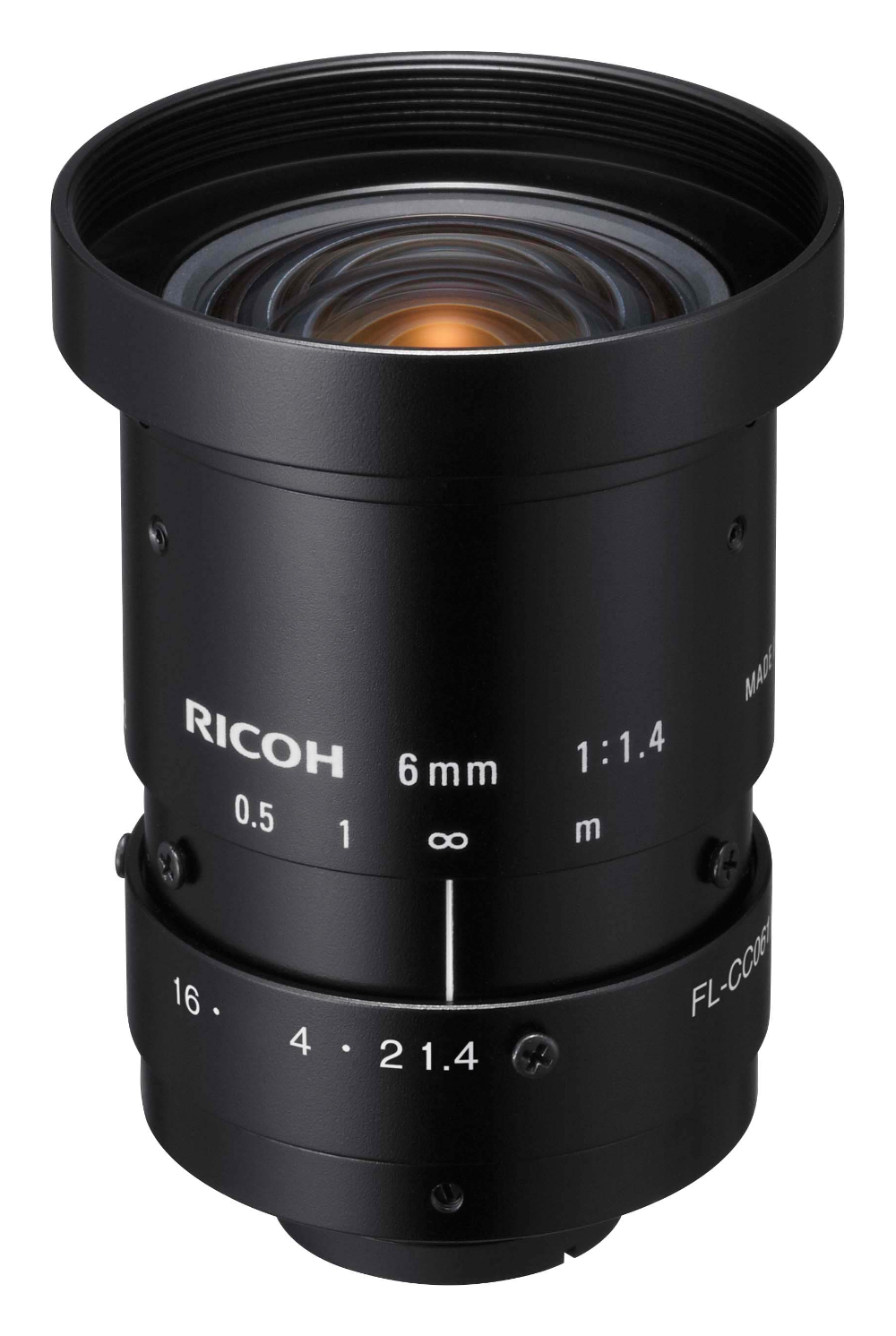

FL-CC0614A-2M6.01.4–160.148.0 × 59.92/3C71.2do not use filter
FL-CC0814A-2M8.01.4–160.142.0 × 36.72/3C56.340.5 × 0.5
FL-CC1214A-2M12.01.4–160.129.5 × 45.72/3C39.427.0 × 0.5
FL-CC1614A-2M16.01.4–160.129.5 × 32.22/3C30.727.0 × 0.5
FL-CC2514A-2M25.01.4–160.132.0 × 38.02/3C19.530.5 × 0.5
FL-CC5024A-2M50.02.4–220.332.0 × 46.52/3C10.330.5 × 0.5

Version: 05-30-2022
