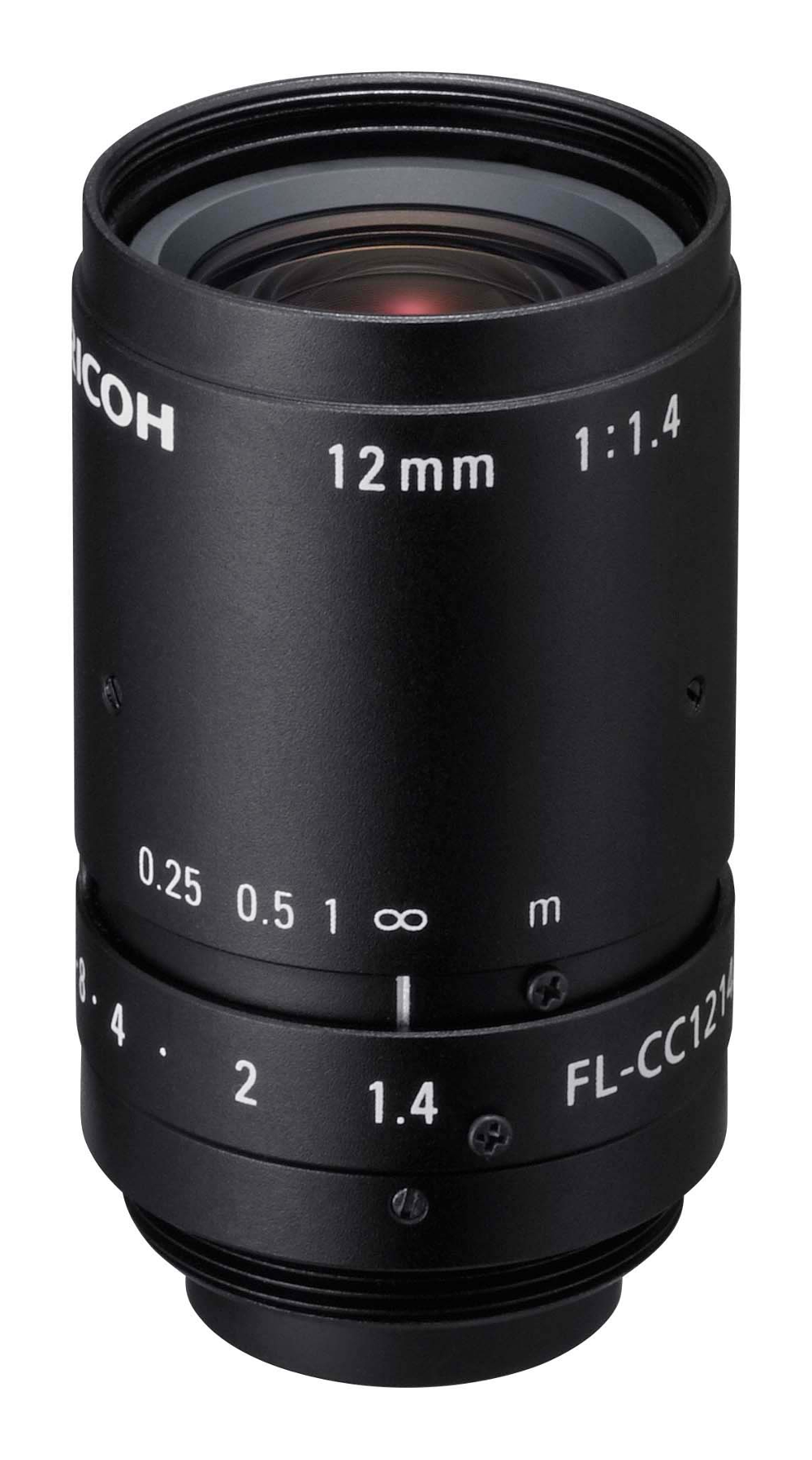

| Description | high-resolution, compact fixed focal length lens with locking screws for C- and CS- Mount cameras by Ricoh |
| Articlenumber (Eureca): | 06.15.0021 |
| Origin: | Japan |
| Manufacturer: | Ricoh (Pentax) |
| Format | 2/3 ″ |
| Mount | C |
| Focal length | 12.0 mm |
| Aperture | 1.4–16 |
| Iris Type | Manual |
| Iris Control | Manual |
| View angle horiz. | 39.4 ° |
| M.O.D. | 0.1 m |
| Filter thread [mm] | 27.0 × 0.5 |
| Dimension [mm] | 29.5 × 45.7 |
| Weight | 68 g |
| Operating Temperature | −20 – +50 °C |
| Resolution | 2M |
Example photo
Version 2 of the manual iris 2 megapixel lens. The new design of the lens has further improved all the optical values so that these lens is ideal for a wide range of applications.
Documents for download:

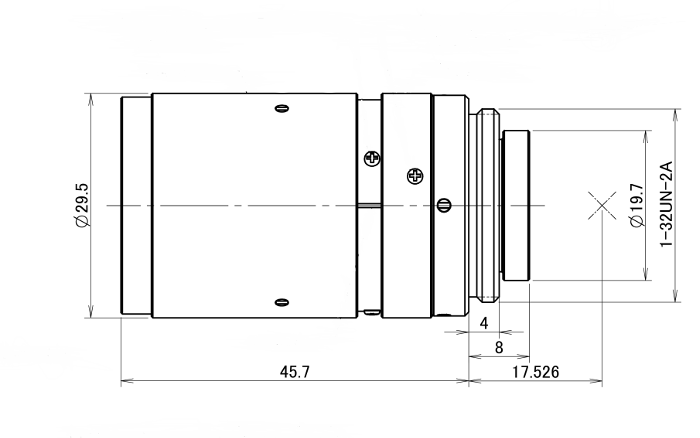

Dimensions of the lens (side view)
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 05.30.2022
