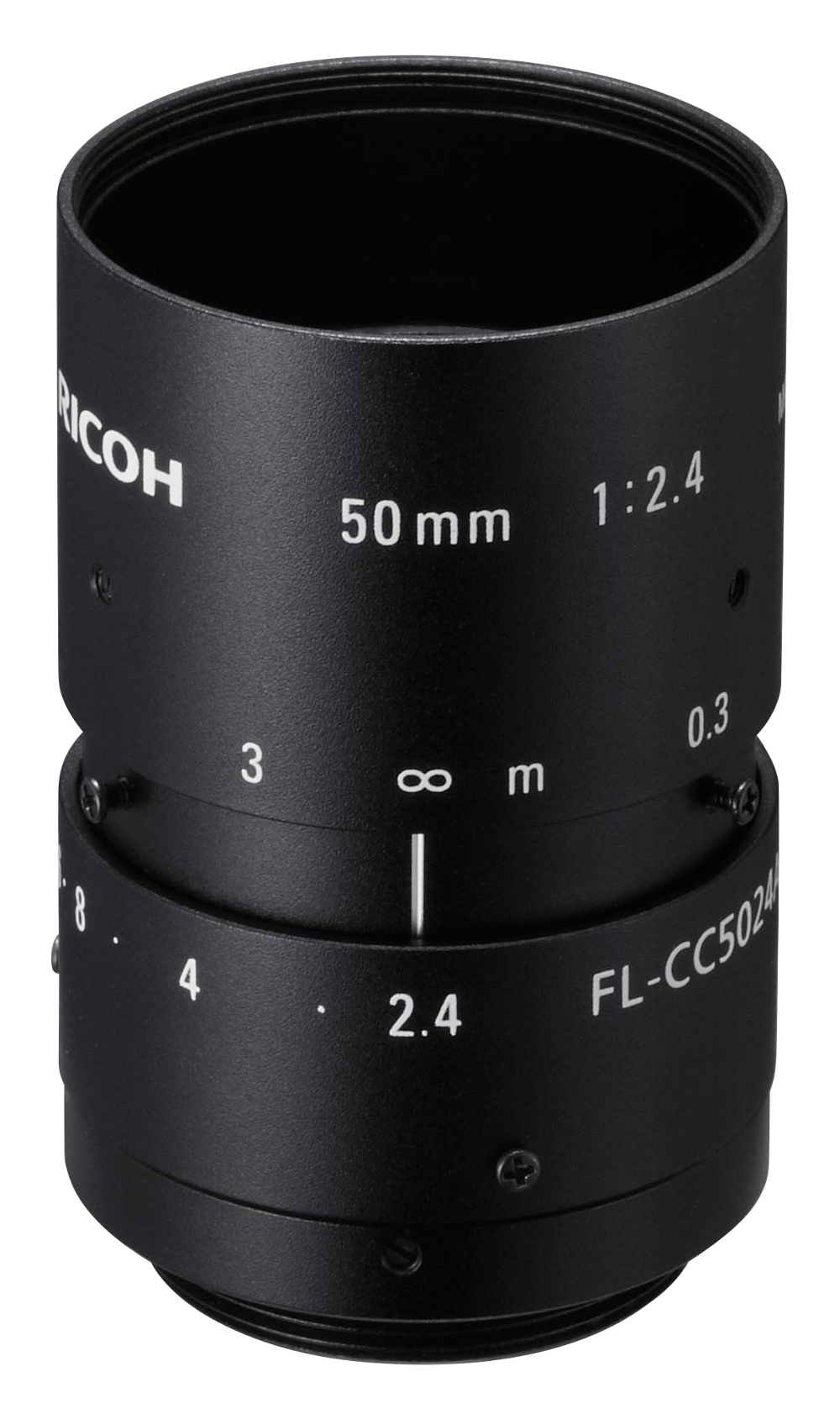

Descriptionhigh-resolution, compact fixed focal length lens with locking screws for C- and CS- Mount cameras by Ricoh
Articlenumber (Eureca):06.15.0024
Origin: Japan
Manufacturer: Ricoh (Pentax)
Format2/3 ″
Focal length50.0 mm
Iris TypeManual
Iris ControlManual
View angle horiz.10.3 °
M.O.D.0.3 m
Filter thread [mm]30.5 × 0.5
Dimension [mm]32.0 × 46.5
Weight66 g
Operating Temperature−20 – +50 °C

Example photo

To the product series

Version 2 of the manual iris 2 megapixel lens. The new design of the lens has further improved all the optical values ​​so that these lens is ideal for a wide range of applications.

  • Bright pictures right up to the edge
  • High resolution and high contrast across the entire lens
  • Shortened M.O.D. (Minimum Object Distance)
  • Low distortion

Documents for download:

Dimension drawing of the lens

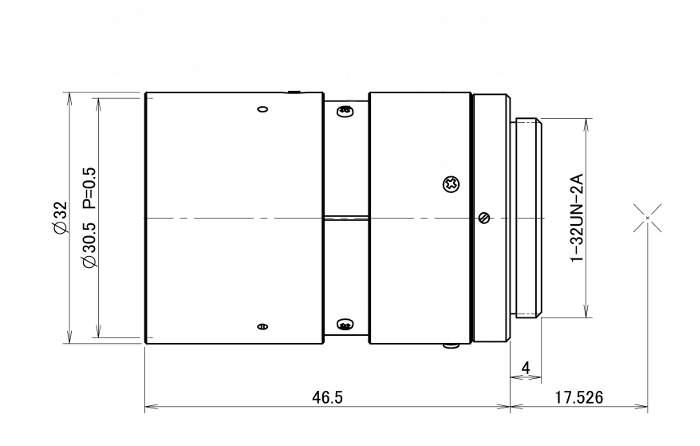

Dimensions of the lens (side view)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 05.30.2022
