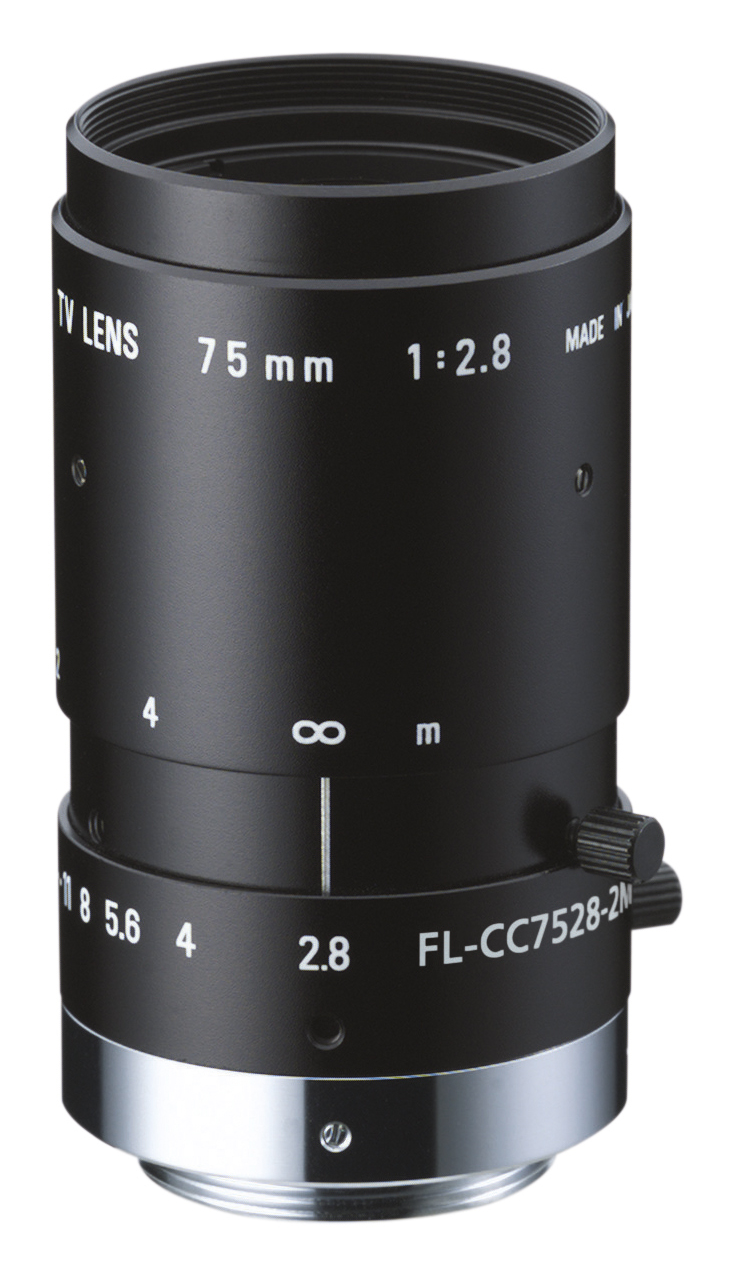

Descriptionmanually controlled, high-resolution and compact fixed focal length Megapixel lens, with locking screws for C- and CS- Mount cameras by Ricoh
Articlenumber (Eureca):06.15.0018
Origin: Japan
Manufacturer: Ricoh (Pentax)
Format2/3 ″
Focal length75.0 mm
Iris TypeManual
Iris ControlManual
View angle horiz.6.9 °
M.O.D.0.7 m
Filter thread [mm]30.5 × 0.5
Dimension [mm]34.0 × 59.6
Weight125 g
Operating Temperature−20 – +50 °C

Example photo

To the product series

This manual iris lens is a great choice when it comes to 2 megapixel image capture in image processing. With its exceptionally compact design and high performance, it delivers outstanding results in the inspection of high-precision manufacturing (chip mounting, wafers, board fabrication, etc.).

  • High-performance close-up lenses with 2 MP CCD and CMOS sensors
  • Sharp, high-resolution, high-contrast images with low loss of resolution from the center of the image to the edges
  • Very compact, lightweight and robust: ideal for factory automation
  • Lowest distortion: optimal for image recognition and image measurement
  • Constructed for industrial applications
  • 3 fixing screws each (plus 2 knurled screws) for focus and aperture – suitable for applications with vibrations and accelerations.

Documents for download:

Dimension drawing of the lens

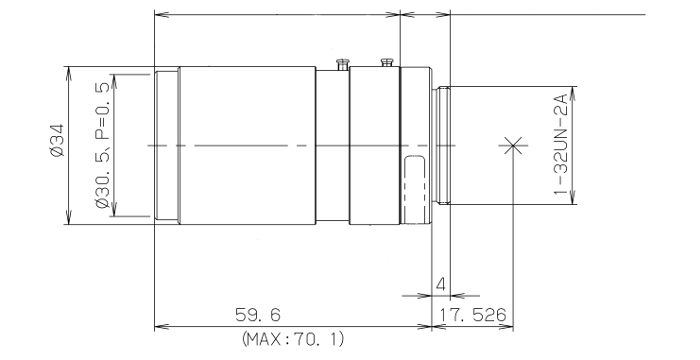

Dimensions of the lens (side view)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 05.25.2022
