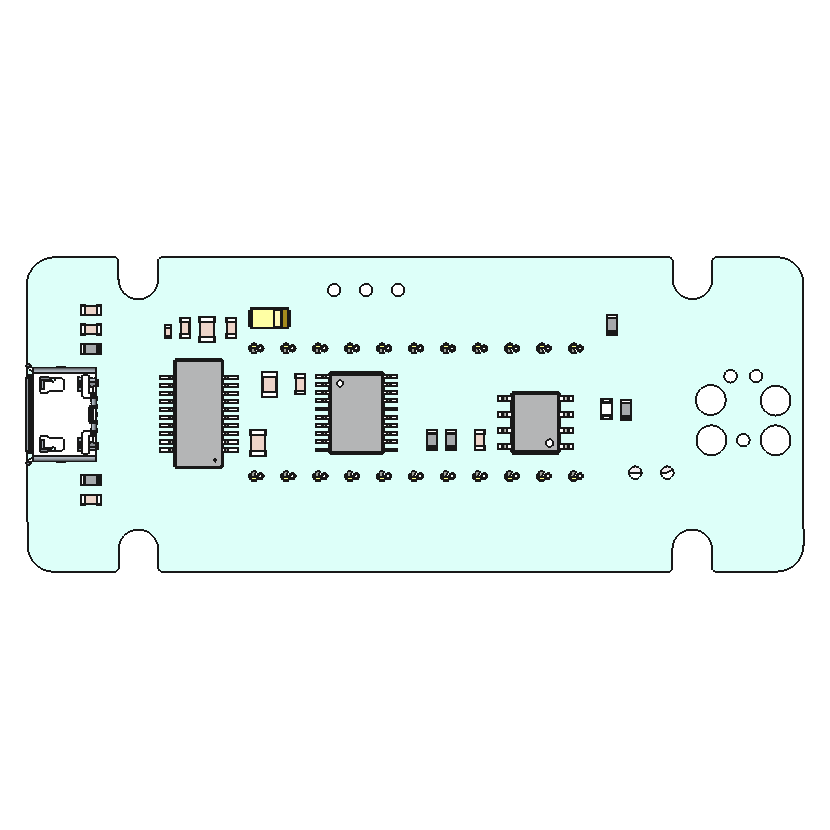

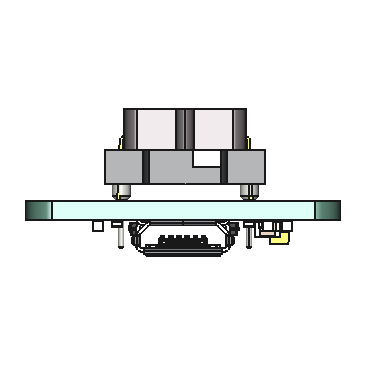

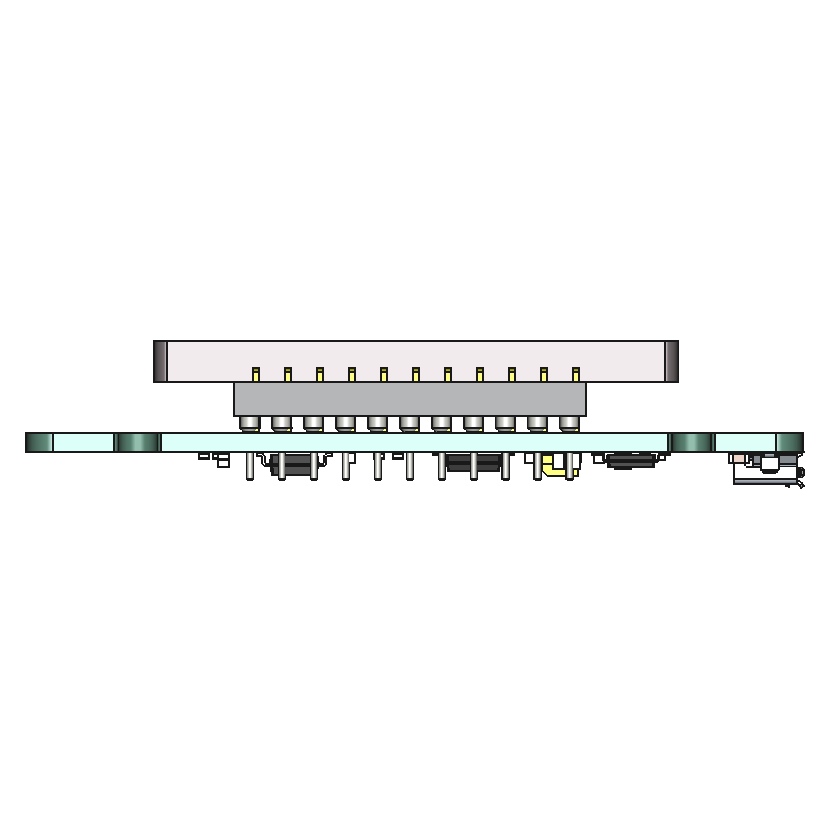

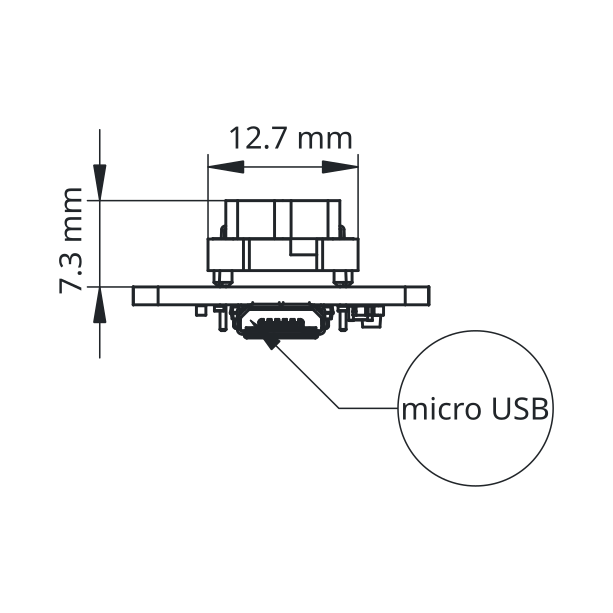

| Description | Line scan camera board by Eureca |
| Articlenumber (Eureca): | 02.29.0025 |
| Origin: | Germany |
| Manufacturer: | Eureca |
| EAN | 0675051081768 |
| Interface | USB |
| Sensor | TCD1304DG |
| Pixel number | 3648 |
| Pixel pitch | 8 µm |
| Pixel height | 200 µm |
| Minimum Exposure Time | 20 µs |
| Supply Current | < 250 mA |
| Supply Voltages | 5 V |
| Size (L×B×H) | 61 × 25 × 12 mm |
| Weight | 25 g |
| Remark | EDU (Educational) Version; available from Q2/2026 |

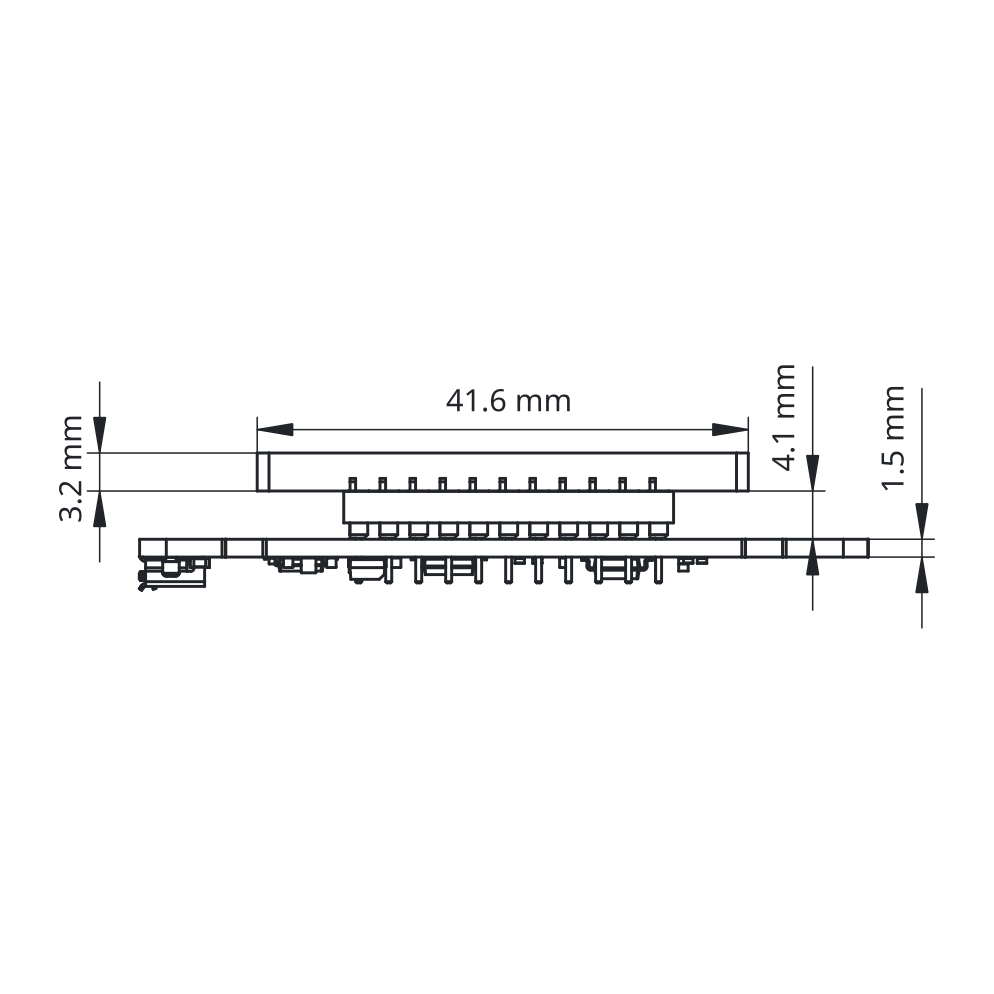

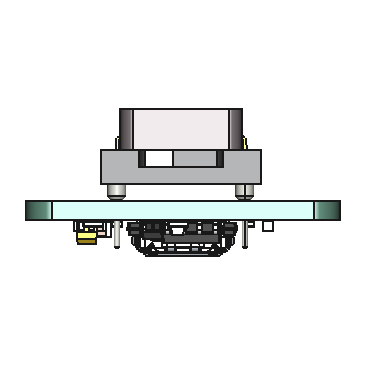

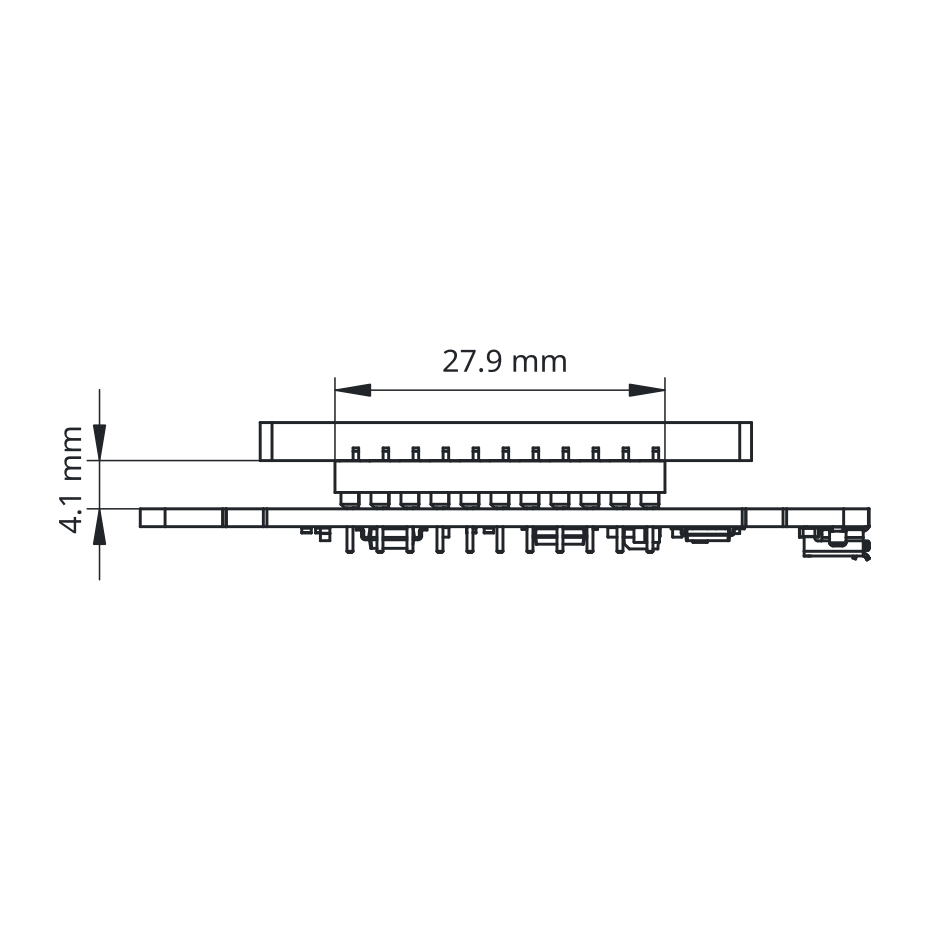

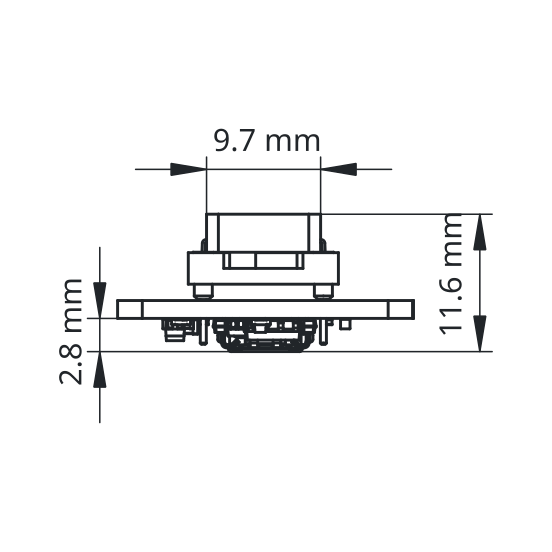

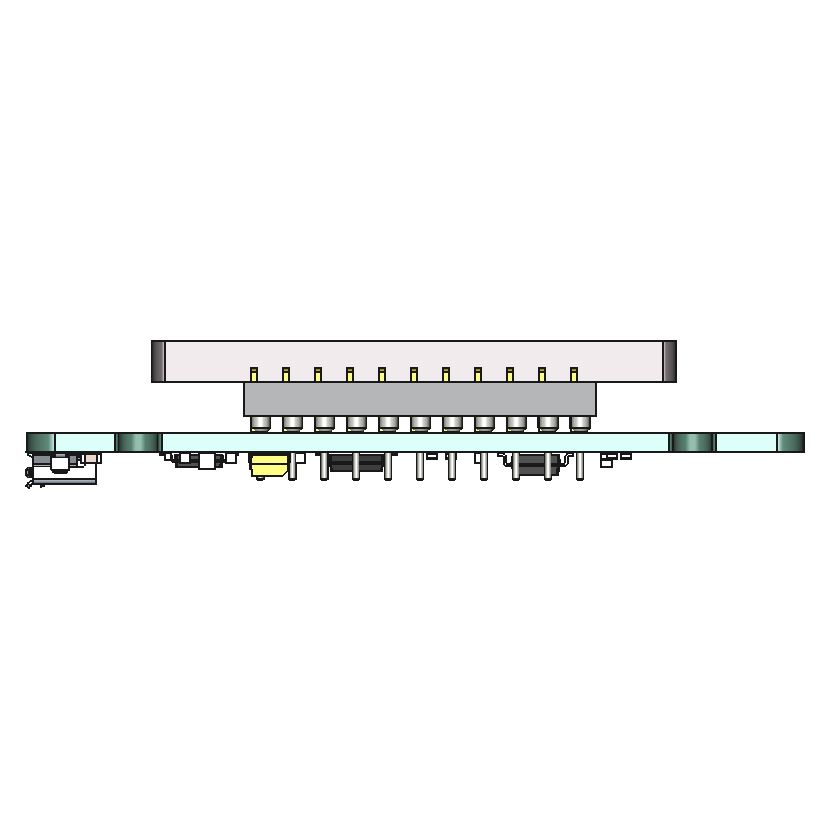

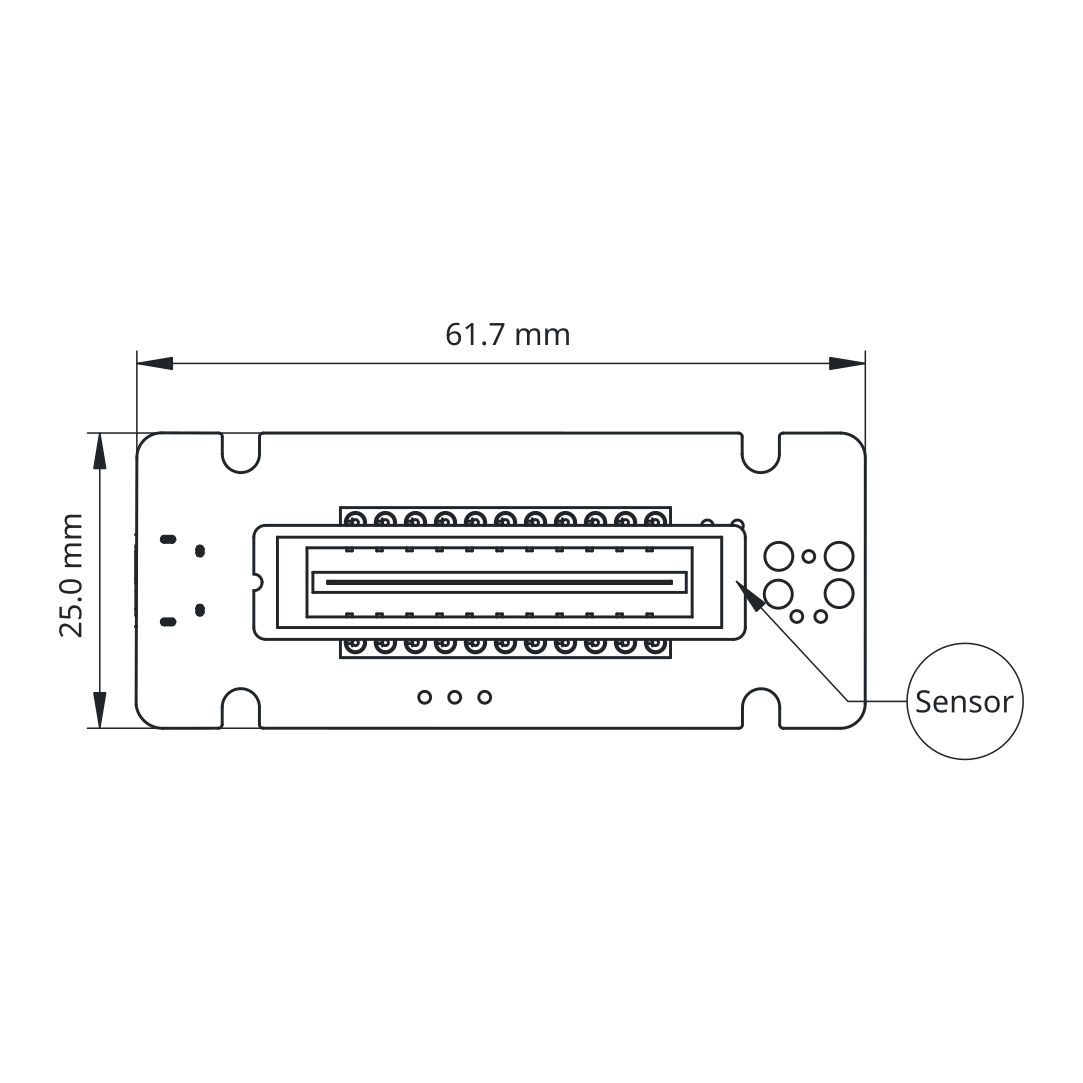

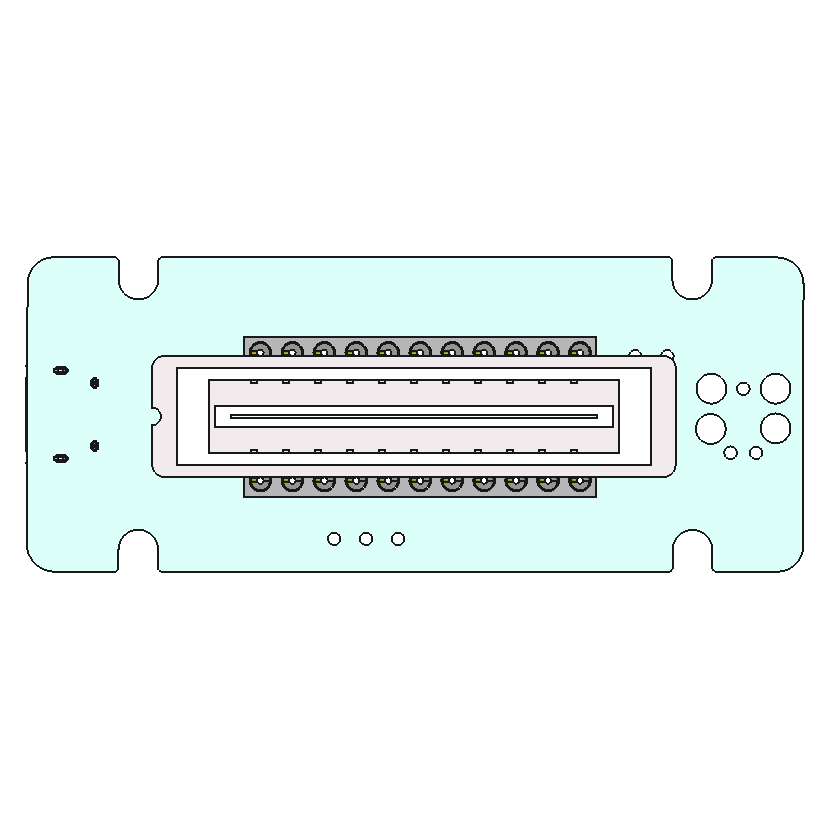

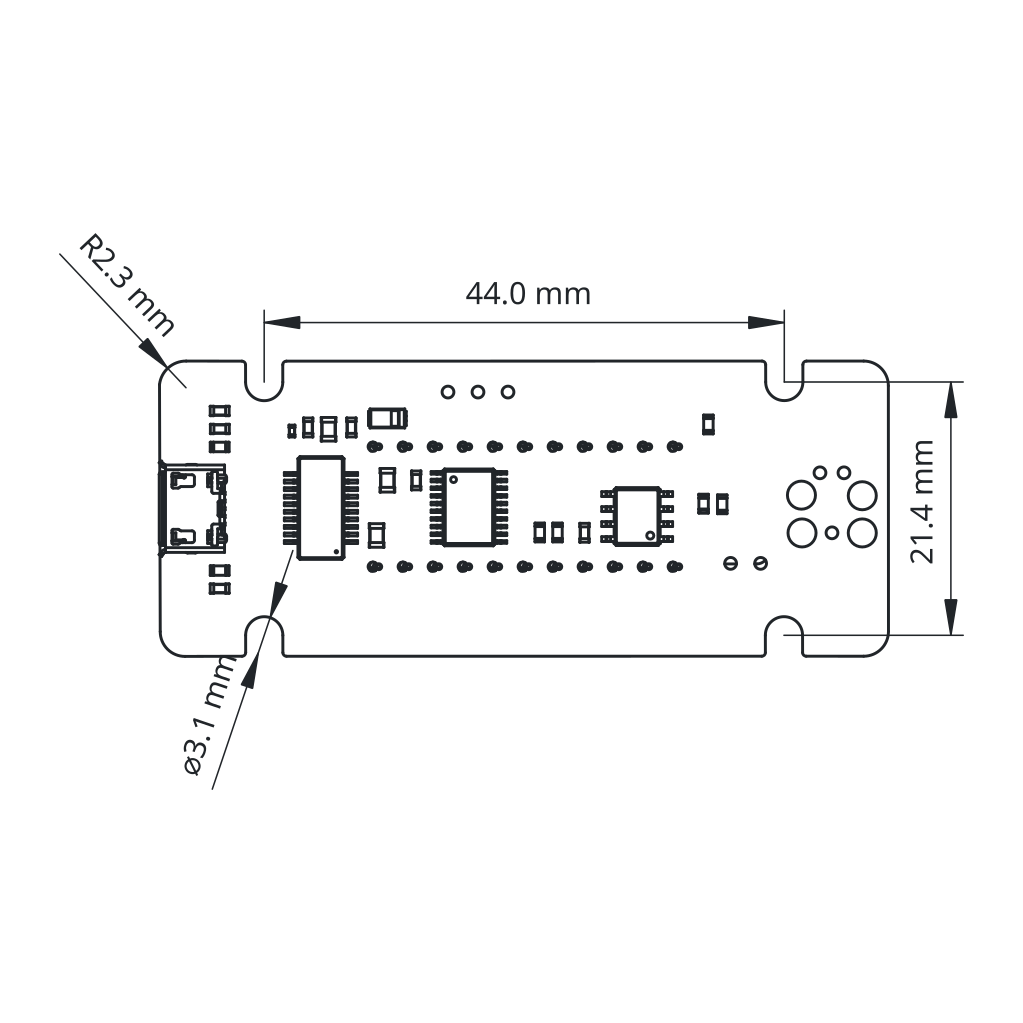

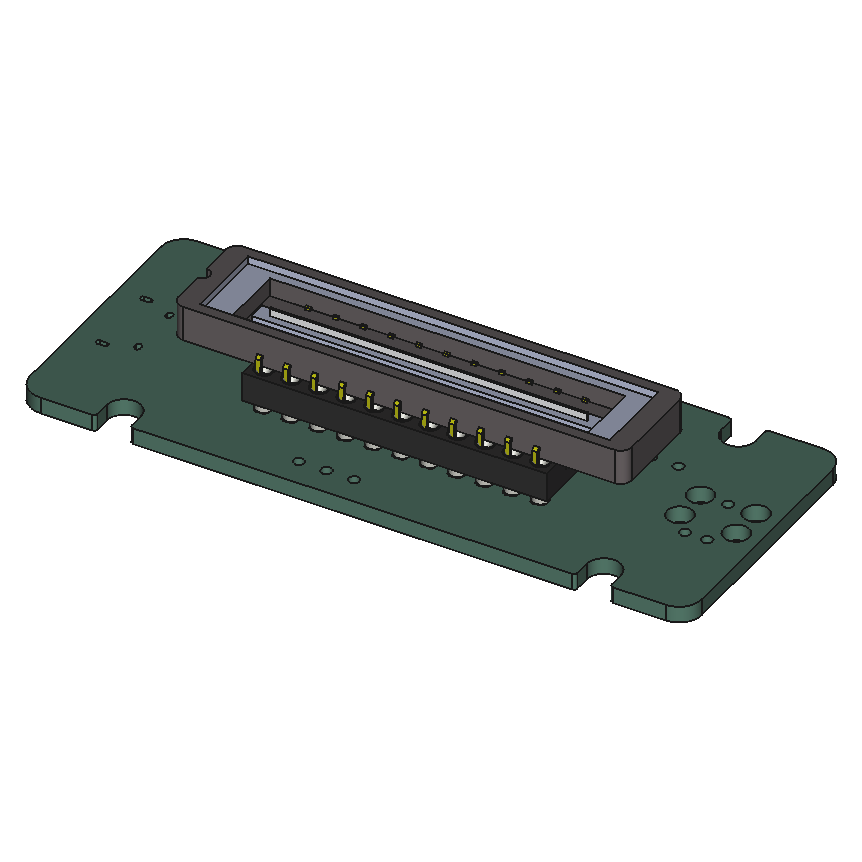

Sample picture
The e9u-LSMD-TCD1304-EDU was developed specifically for teaching purposes. Compared to the e9u-LSMD-TCD1304-STD, it offers deliberately reduced performance – but is significantly more budget-friendly and therefore perfect for internships, exercises, PoCs (proof of concept) and maker projects. It is aimed at professors, doctoral students, research assistants, and teachers, as well as tinkerers, makers, and pupils/students who want to work with real measurement data.
Hardware development has been completed and series production is being prepared (planned start: Q2/2026). We are currently polishing libraries, drivers, and documentation. Anyone who would like to get involved early on and provide feedback can already purchase prototypes as e9u-LSMD-TCD1304-EDU-EVAL at reduced prices.
| Operation mode | 8-bit mode | 12-bit mode |
|---|---|---|
| Digitization Depth | 8 bit | 16 bit left aligned |
| Read out noise (typ. rms) | 300 e− | 50 e− |
| Linear Full Well Capacity | 40 ke− | 40 ke− |
| Full Scale Capacity | 65 ke− | 65 ke− |
| Conversion Gain (typ @ 0.4 FS) | @ 8 Bit: 330±100 e−/LSB | @ 16 Bit: 1.3±0.4 e−/LSB |
| Maximum Frame Rate | 25 fps | 25 fps |
| Integration Start/Stop via USB | ✗ | ✗ |
| Start/Stop via USB Latency | 10 ms | 10 ms |
| External Trigger Input | ✓ | ✓ |
| External Trigger Latency | 20 µs | 20 µs |
| External Trigger Jitter | ±10 µs | ±10 µs |
| External Trigger Latency (debounced) | ✗ | ✗ |
| Isolated external Trigger Input | ✗ | ✗ |
| External Exposure Time Control | ✗ | ✗ |
| Exposure Time Control Latency | ✗ | ✗ |
| Minimum External Exposure Time | ✗ | ✗ |
| Maximum External Exposure Time | ✗ | ✗ |
| Exposure Time Control Latency (debounced) | ✗ | ✗ |
| Minimum External Exposure Time (debounced) | ✗ | ✗ |
| Trigger Output | ✓ | ✓ |
| High Resolution Timestamp: Trigger | ✗ | ✗ |
| GPIO | ✗ | ✗ |
| Enhanced Frame Buffer | ✗ | ✗ |
This module uses the standard version of the TCD1304DG and is therefore suitable for general measuring tasks in the visible spectral range.
Further information, source codes and documentation can be found on our service page!
For orders (also from end customers) please use the link below.
For offers for larger quantities, please contact us by e-mail.
