e9u-LSMD-TCD1304-STD

DescriptionLine scan camera board by Eureca
Articlenumber (Eureca):02.29.0002
Origin: Germany
EAN0675051081478
InterfaceUSB-2.0
SensorTCD1304DG
Pixel number3648
Pixel pitch8 µm
Pixel height200 µm
Minimum Exposure Time0.01 ms
Maximum Data Ratevia USB: 2 MB/s
Supply Current< 250 mA
Size (L×B×H)62×25×24 mm
Weight22 g

Sample picture

To the product series

Due to its small size, this line camera module is ideal for building compact optoelectronic measuring devices.

A high line rate and a large range of possible exposure times enable use in a variety of applications. The low price also makes the module interesting for research, teaching and the maker scene.

Possible applications are:

  • Spectroscopy / Spectrometry
  • Edge detection
  • Position control
  • Measuring objects



Easy control

A special »EasyAccess« DLL is available for our USB line scan camera modules, with which the cameras can be put into operation very quickly and controlled for simple applications.

The initialization of the camera, the recording as well as the transfer of the acquired sensor data is done with a few simple commands. This makes this DLL ideally suited for use with Python, but also with other programming languages. Our application examples for our line scan cameras, for example, were all realized with this »EasyAccess« DLL.

For more demanding, time-critical applications, the »EasyAccess« DLL naturally still contains all the conventional functions for controlling the line scan camera for programming with e. g. C++ or similar. The »EasyAccess«-DLL is available free of charge on request. Please contact us via e-mail if you are interested.




The line scan camera board presented here is the standard variant that was developed to cover as many price-critical applications as possible. For more demanding applications, the modules of the Professional series are available, which, in addition to better electronic data, also have an external trigger.

Featuree9u-LSMD-TCD1304-STDe9u-LSMD-TCD1304-PRO
Digitization Depth 12 bit 16 bit
Read out noise (typ. rms) 45 e 45 e
Linear Full Well Capacity 45 ke 60 (t. b. d.) ke
Full Scale Capacity 75 ke 85 (t. b. d.) ke
Conversion Gain (typ @ 0.4 FS) @ 16 Bit: 1.3±0.1 e/LSB @ 16 Bit: 1.5±0.1 e/LSB
Maximum Frame Rate 133 fps 250 (t. b. d.) fps
Integration Start/Stop via USB
Start/Stop via USB Latency ✗ ms 10 ms
External Trigger Input
External Trigger Latency ✗ µs 10 µs
External Trigger Jitter ✗ ns 20 (t. b. d.) ns
External Trigger Latency (debounced) ✗ µs 100 µs
Isolated external Trigger Input
External Exposure Time Control
Exposure Time Control Latency 10 µs
Minimum External Exposure Time 20 µs
Maximum External Exposure Time
Exposure Time Control Latency (debounced) 100 µs
Minimum External Exposure Time (debounced) 1 ms
Trigger Output
High Resolution Timestamp: Trigger
GPIO
Enhanced Frame Buffer



This module uses the standard version of the TCD1304DG and is therefore suitable for general measuring tasks in the visible spectral range.

Since the sensor is socketed, it can easily be replaced by another version refined internally at Eureca. This can e. g. be sensors with the cover glass removed to avoid disturbing reflections. However, sensors coated with Lumigen to expand the usable spectral range into UV or sensors with special filters are also possible.

After replacing the sensor, the module must be recalibrated. A special automatic program is available for this, which is included in the scope of delivery of the modules.

For some of these variants, there are already module versions with the corresponding preinstalled modified sensors. You will find a corresponding list at the end of this page.

For a detailed list of all properties and comparisons to other versions of this line scan camera board, please refer to the PDF documents listed below.

Please use our online shop to place an order!

Further information, source codes and documentation can be found on our service page!






Documents for download:

Flyer of the e9u-LSMD line scan camera modules from Eureca (german)
Flyer of the e9u-LSMD line scan camera modules from Eureca (english)

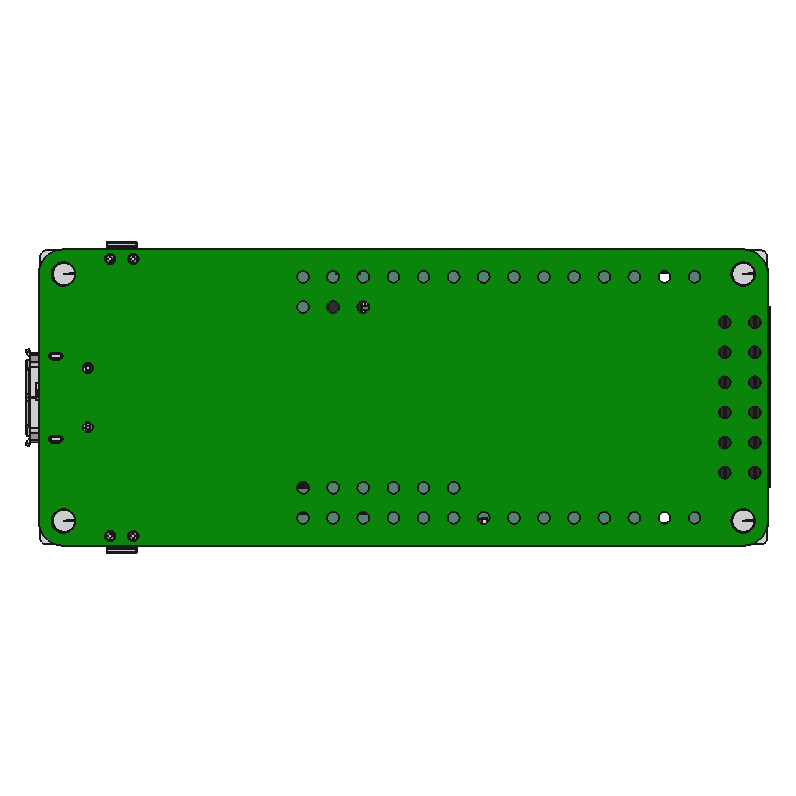

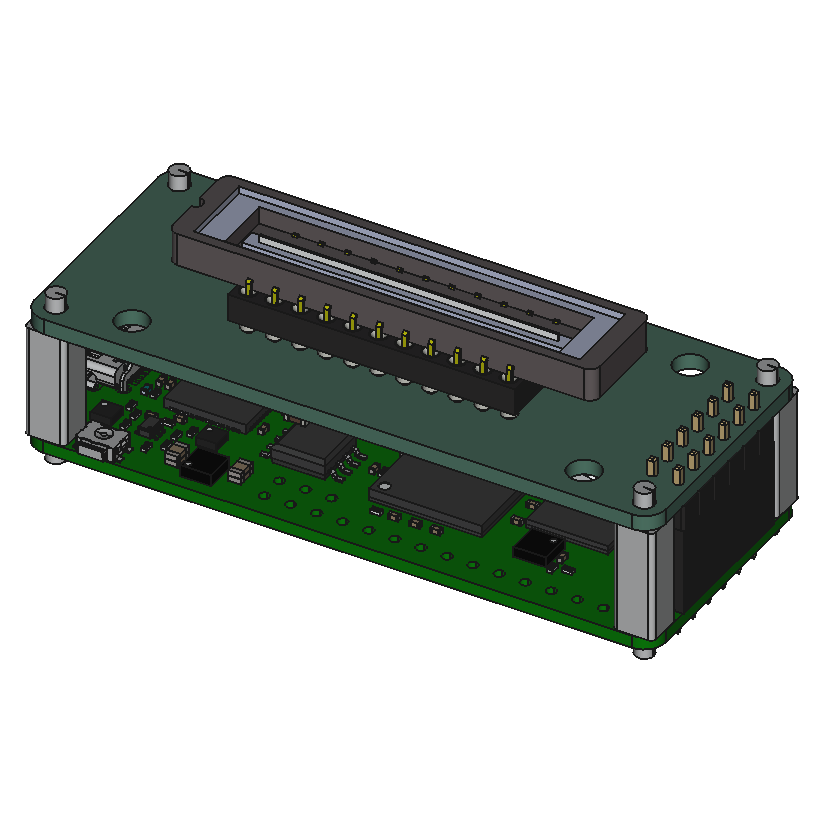

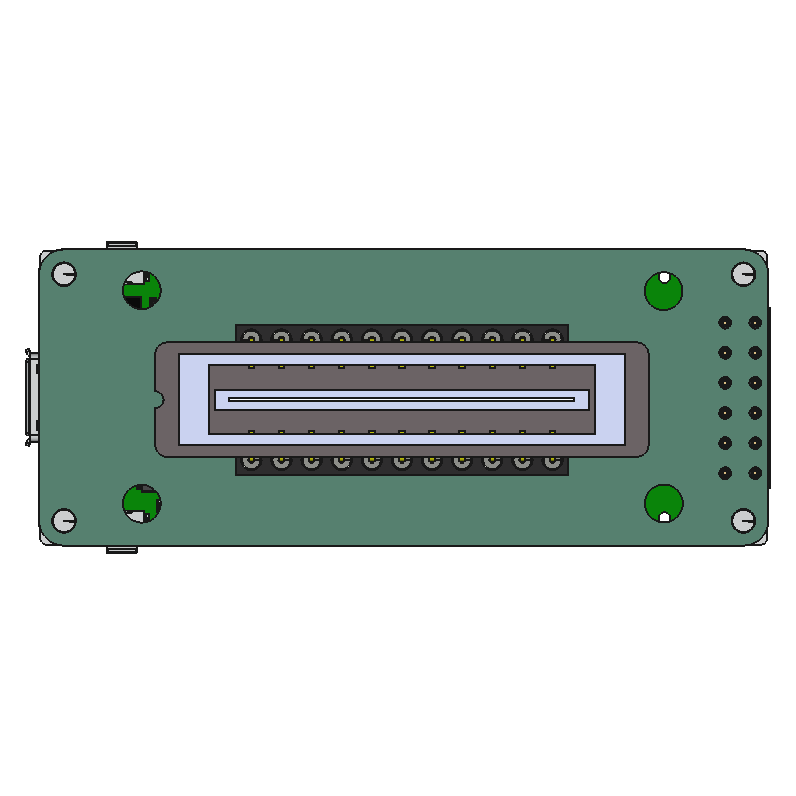

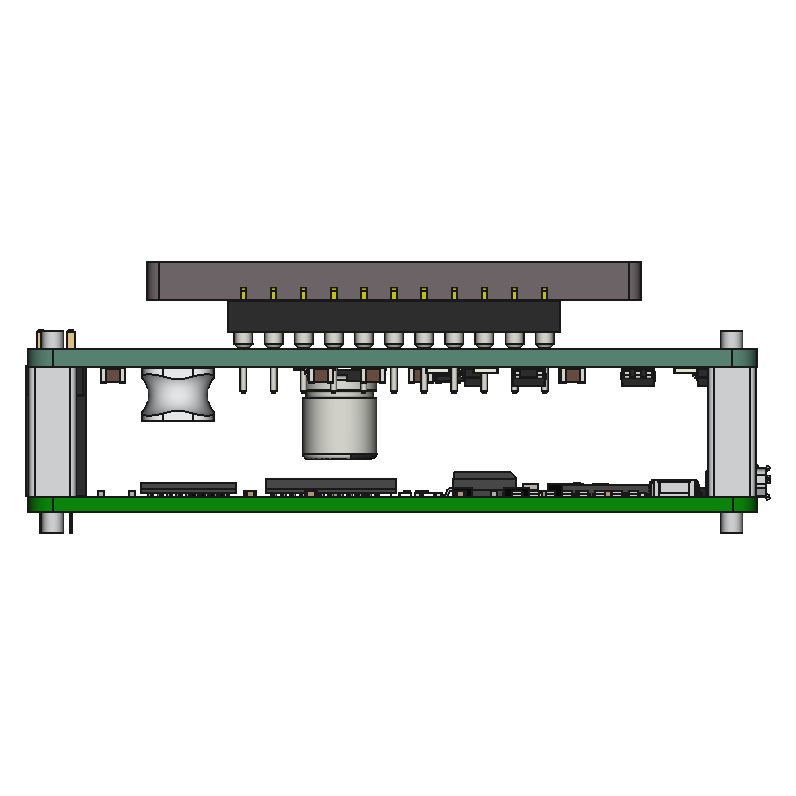

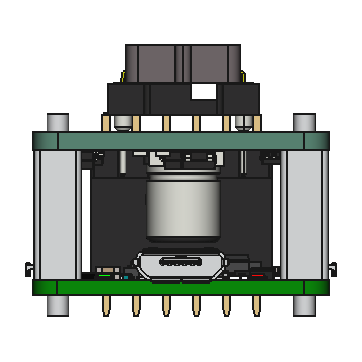

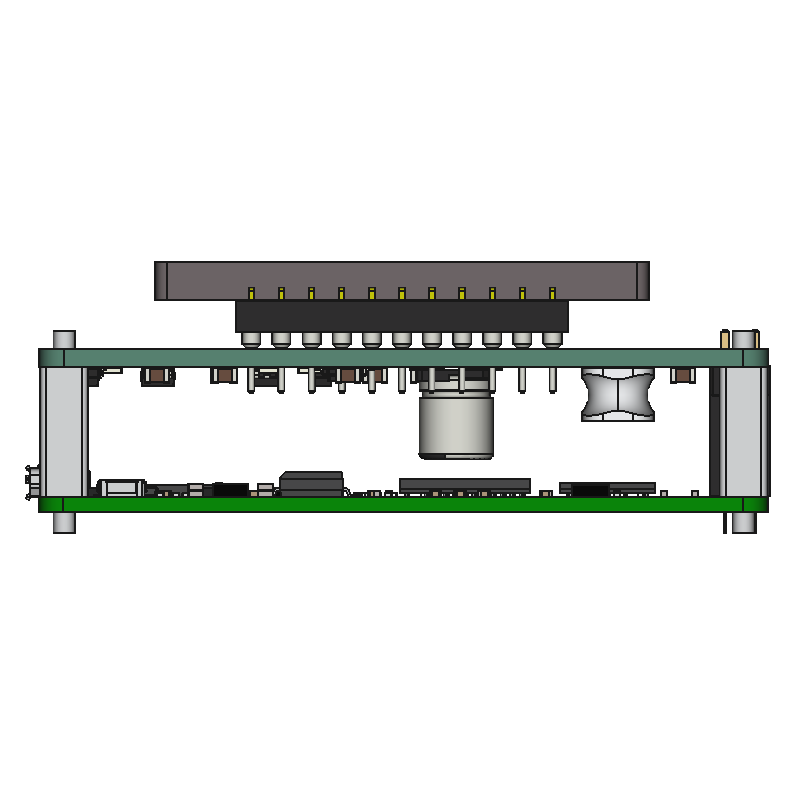

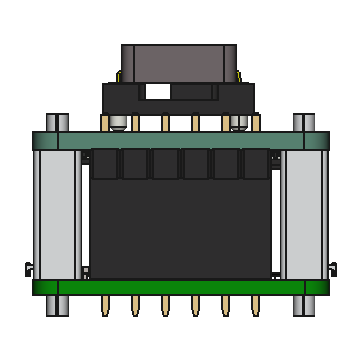

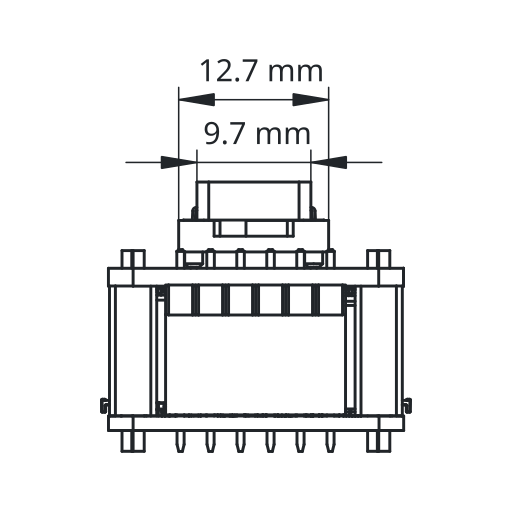

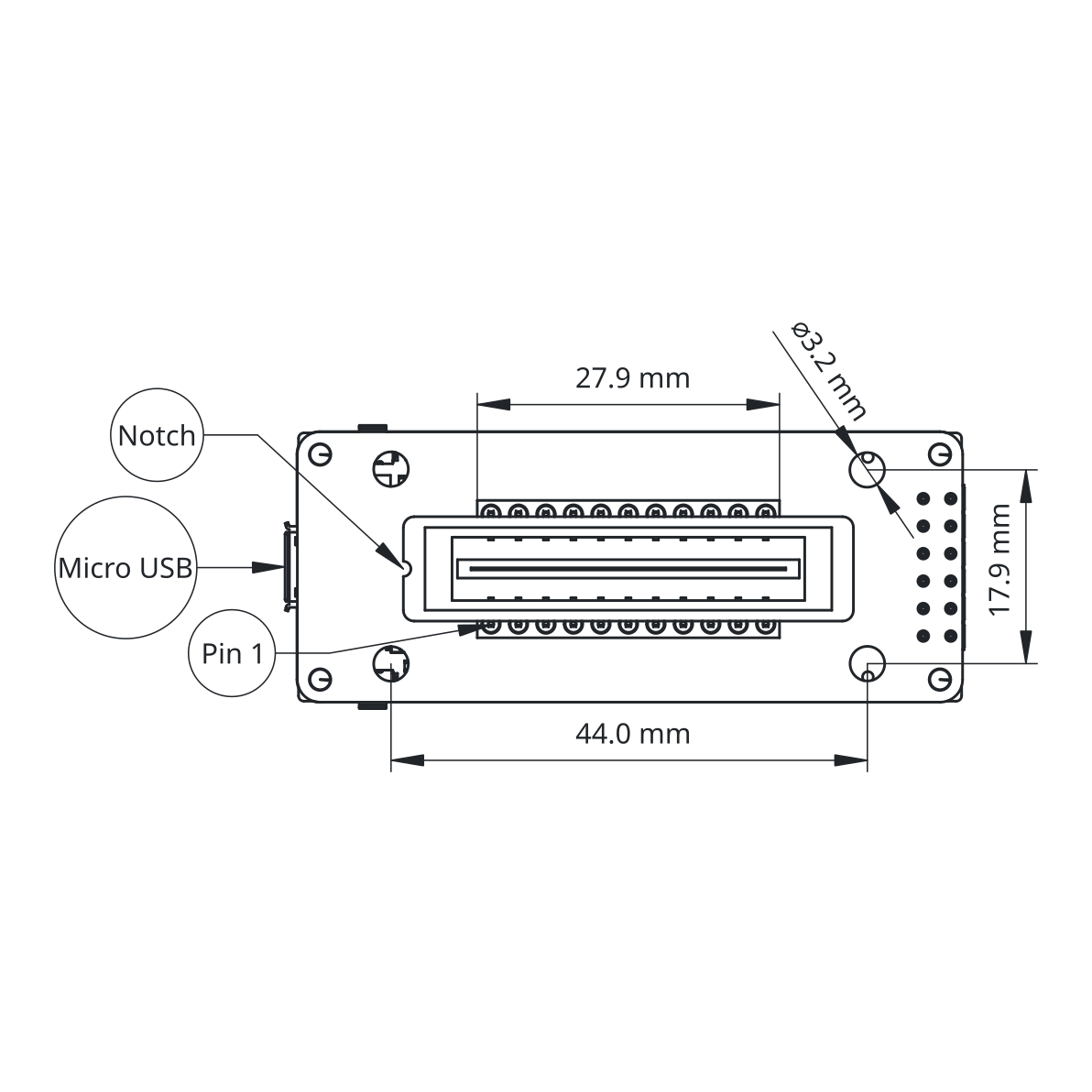

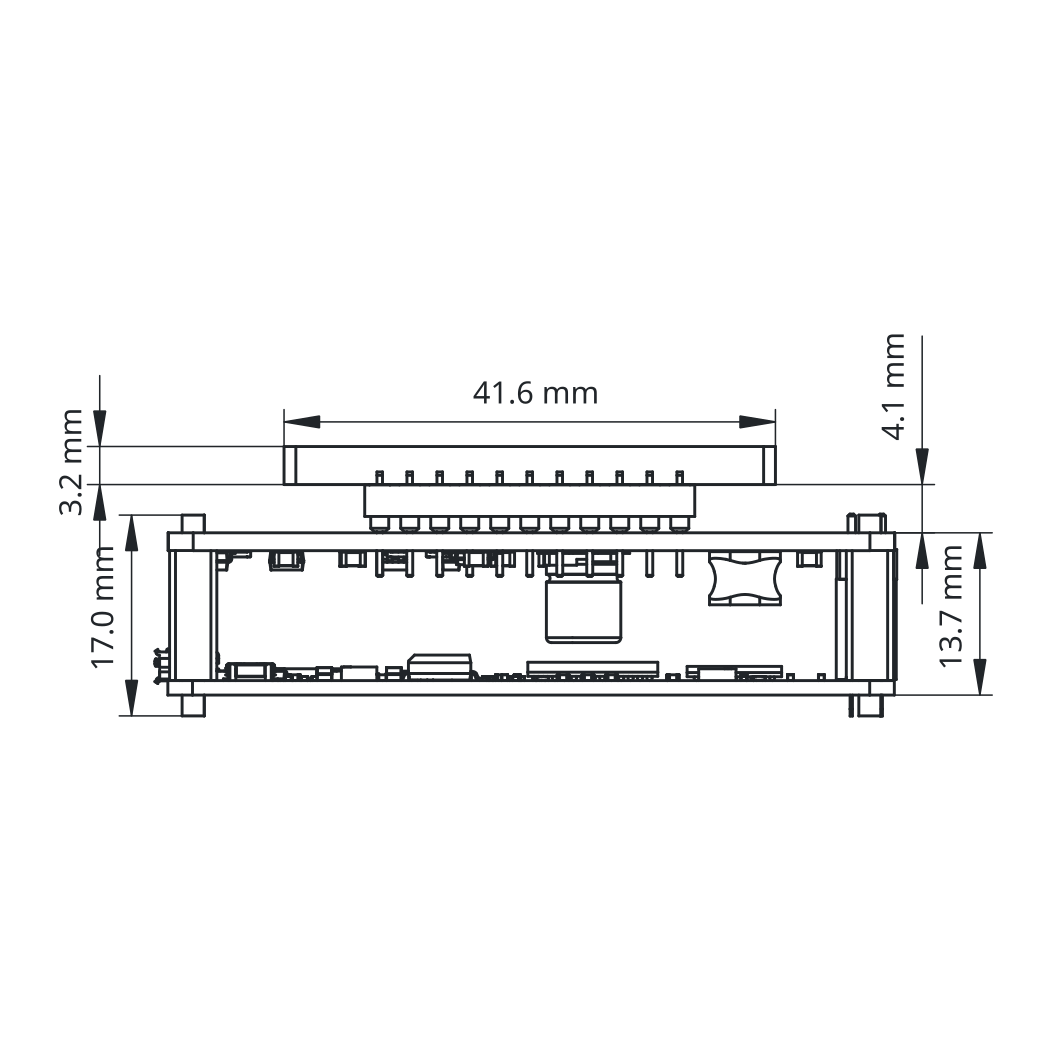

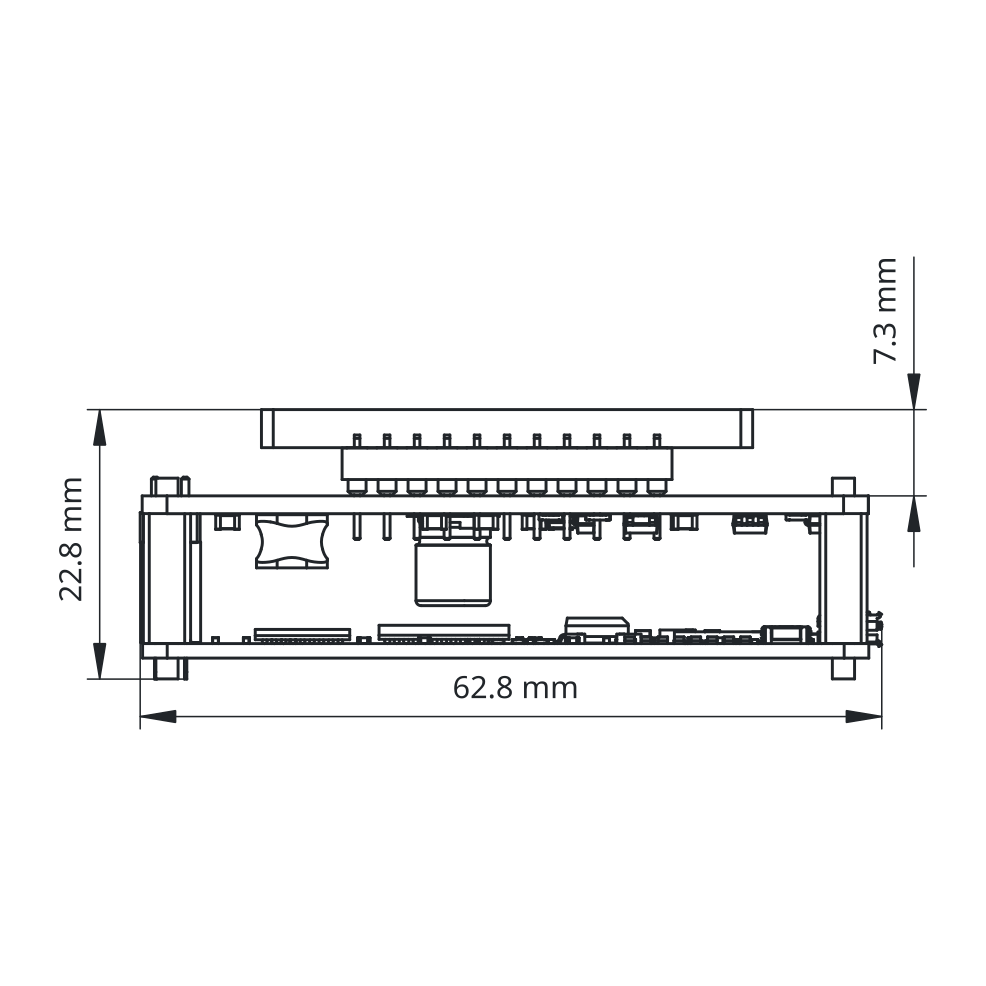

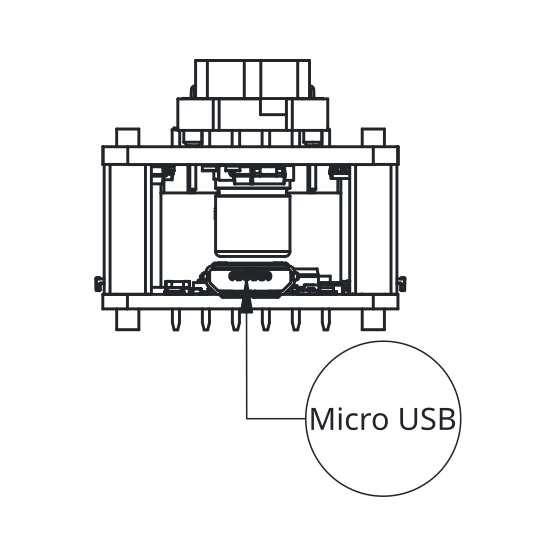

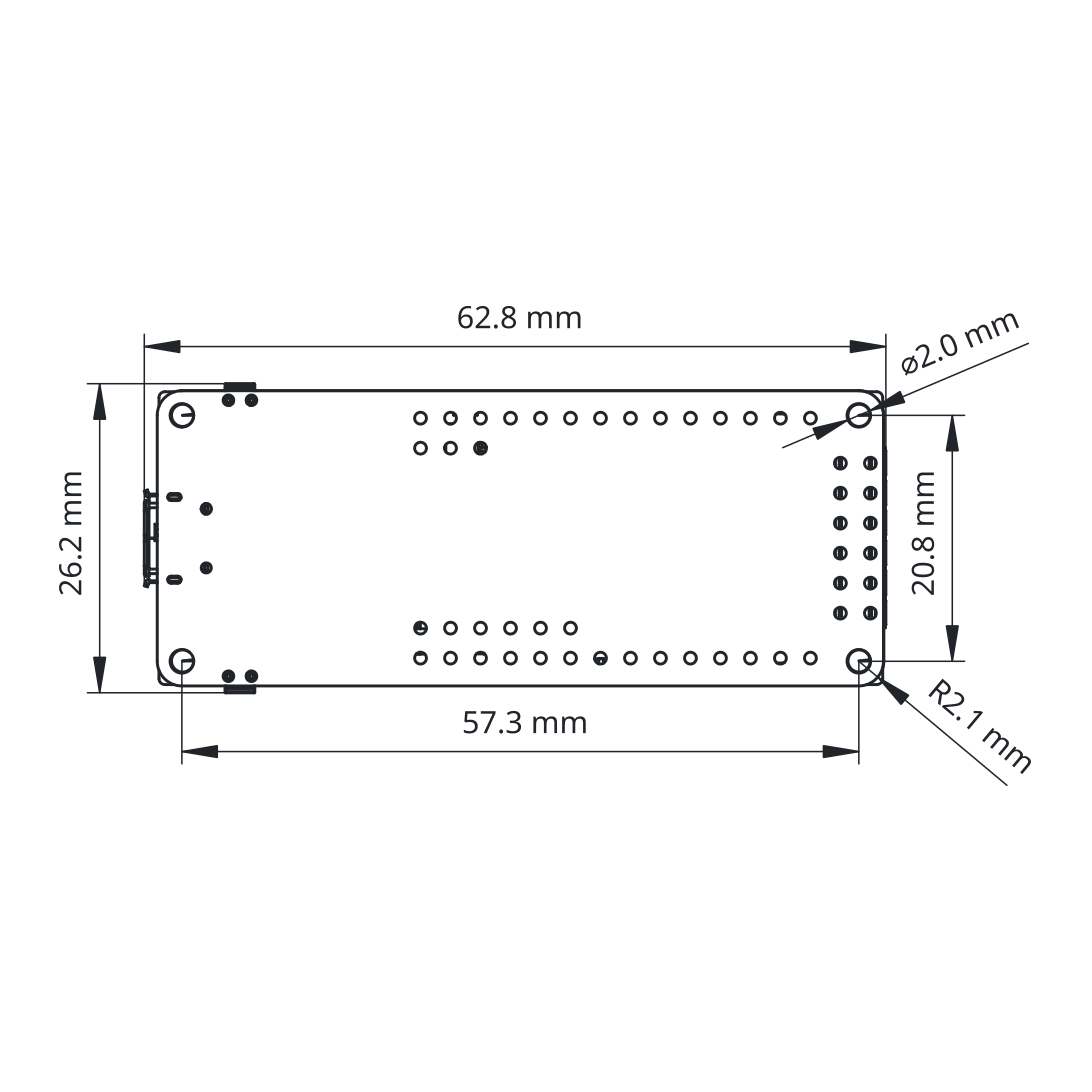

Technical Drawings



Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 11.20.2023
