CSP1900-08-04-522VE-R27-L14



DesignationSocket by Andon
Article number (Eureca)01.23.0098
OriginUSA
ManufacturerAndon
Number of contacts 8
Isolation material L14
Surface Terminal/Contact R27
Mounting THT
Terminal type 522VE

Request samples or a quotation (including full datasheet) for this socket


Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions

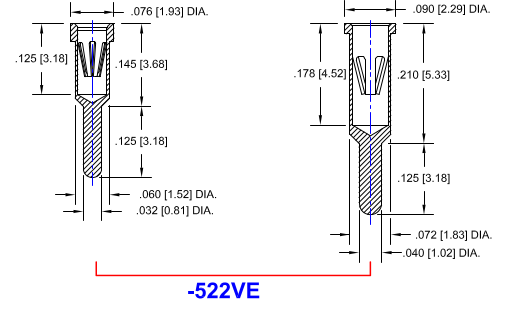

Used terminal type (522VE)

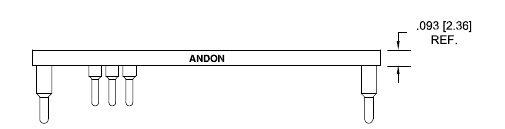

Side view


This socket can be used for the following devices:

EMCO:FS Series (with smart features)


Similar sockets with other terminals

CSP1900-08-04-523VE-R27-L14, SMD
