CSP4200-21-01-524SV-R27-L14



DesignationSocket by Andon
Article number (Eureca)01.23.0042
OriginUSA
ManufacturerAndon
Number of contacts 21
Isolation material L14
Surface Terminal/Contact R27
Mounting THT
Terminal type 524SV

Request samples or a quotation (including full datasheet) for this socket


Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions
Used terminal type (524SV)

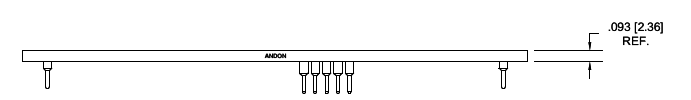

Side view


This socket can be used for the following devices:

Cosel:CDS40048, DBS100A, DBS150A, DBS200B, DBS400B, DBS700B


Similar sockets with other terminals

CSP4200-21-01-525SV-R27-L14, SMD
