710-28-SM-T1



DesignationSocket by Andon
Article number (Eureca)01.22.0990
OriginUSA
ManufacturerAndon
Number of contacts 28
Isolation material
Surface Terminal/Contact
Mounting SMD
Terminal type T1

Request samples or a quotation (including full datasheet) for this socket


Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions

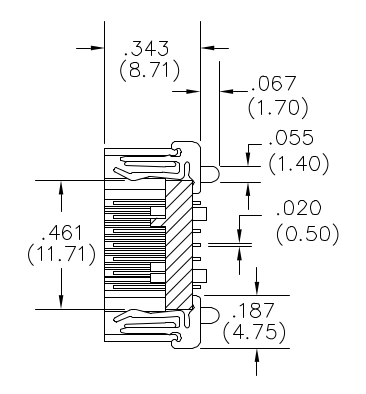

Side view

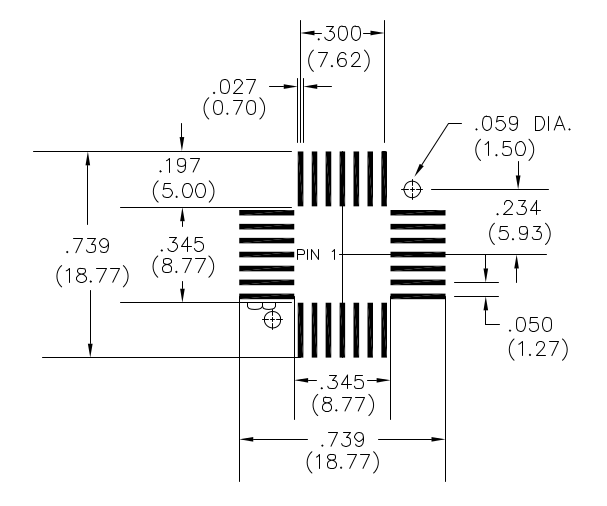

Recommended layout


This socket can be used for the following devices:

Allegro:DESIGNATOR: EA
