Eureca® | Anzeige-Sockel

Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions

Used terminal type (93S)

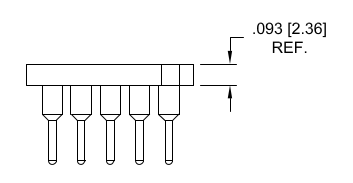

Side view

This socket can be used for the following devices:

Omega:	PX4600-015AV, PX4600-020AV, PX4600-050AV, PX4600-100AV, PX4600-200AV, PX4600-300AV, PX4600-015GV, PX4600-020GV, PX4600-050GV, PX4600-100GV, PX4600-200GV, PX4600-300GV
Ketek:	VITUS H7 SDD, VITUS H7 LE, VITUS H20 SDD, VITUS H30 SDD, VITUS H15LE, VITUS H150
Dias:	2LTA G2C10, 2LTA G2PC, 4LTA G2, 2LTA G2C10PC
Vigo:	PC-4TE, PVI-3TE, PCI-2TE, PVI, PV-2TE, PC-2TE, PVI-4TE, PCI-3TE, PVI-2TE, PV-3TE, PC-3TE, PCI-4TE, DV-4TE, PVM-2TE, PVMI-2TE, PVMI-3TE, PVMI-4TE
