694-224-SM-500-R27-L14-1



DesignationSocket by Andon
Article number (Eureca)01.22.1140
OriginUSA
ManufacturerAndon
Number of contacts 244
Isolation material L14
Surface Terminal/Contact R27
Mounting SMD
Terminal type 500

Request samples or a quotation (including full datasheet) for this socket


Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions
Used terminal type (500)

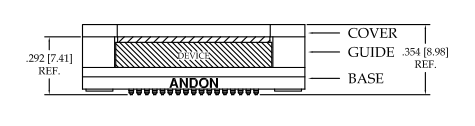

Side view

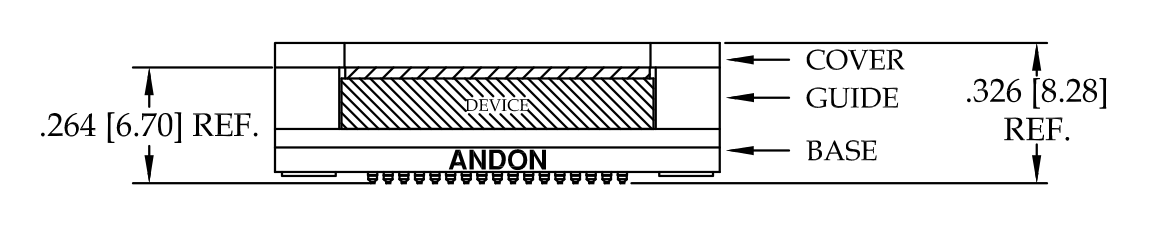

Side view


This socket can be used for the following devices:

Teledyne_e2V:EMERALD 8.9M (EV2S8M8B-CLV / EV2S8M9C-CLV), EMERALD 12M (EV2S12MB-CLV / EV2S12MC-CLV), EMERALD 16M (EV2S16MB-CLV / EV2S16MC-CLV)


Similar sockets with other terminals

694-224-TH-491-R27-L14-1, THT
694-224-SM-RB593-R27-L14-1, SMD_RB
