694D-76-TH-491-R27-L14-1



DesignationSocket by Andon
Article number (Eureca)01.22.1086
OriginUSA
ManufacturerAndon
Number of contacts 76
Isolation material L14
Surface Terminal/Contact R27
Mounting THT
Terminal type 491

Request samples or a quotation (including full datasheet) for this socket


Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions
Used terminal type (491)

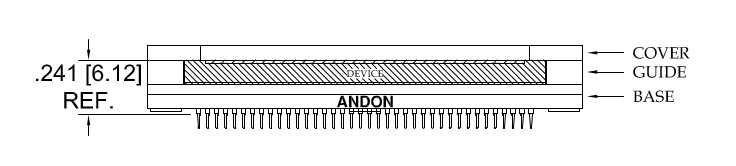

Side view


This socket can be used for the following devices:

Gpixel:GL0402


Similar sockets with other terminals

694D-76-TH-500-R27-L14-1, SMD
694D-76-TH-RB593-R27-L14-1, SMD_RB
