F430-SP07-01-295V-R27-L14



DesignationSocket by Andon
Article number (Eureca)01.25.0953
OriginUSA
ManufacturerAndon
Number of contacts 7
Isolation material L14
Surface Terminal/Contact R27
Mounting THT
Terminal type 295V

Request samples or a quotation (including full datasheet) for this socket


Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions
Used terminal type (295V)

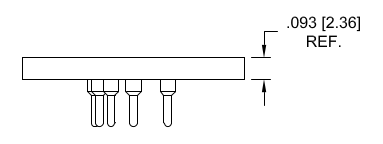

Side view


This socket can be used for the following devices:

New_England:D-1-66, D-2-66, D-3-66, D21-1-66, D21-3-66, D21-5-66, D2-1-66, D2-2-66, D2-3-66, D2-5-66, D-5-66, G-1-66, G-2-66, G21-1-66, G21-2-66, G21-3-66, G21-5-66, G2-1-66, G2-2-66, G2-3-66, G2-5-66, G-3-66, G-5-66, GS21-1-66, GS21-2-66, GS21-3-66, GS21-5-66


Similar sockets with other terminals

F430-SP07-01-439V-R27-L14, SMD
