CSP4200-16-01-507EP72-R27-L14



DesignationSocket by Andon
Article number (Eureca)01.23.0358
OriginUSA
ManufacturerAndon
Number of contacts 16
Isolation material L14
Surface Terminal/Contact R27
Mounting THT
Terminal type 507EP72

Request samples or a quotation (including full datasheet) for this socket



Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions
Used terminal type (507EP72)

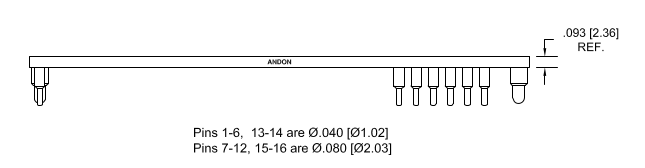

Side view



This socket can be used for the following devices:

XP_Power:QSB40024S05, QSB40024S12, QSB40024S24, QSB40024S28, QSB40024S48, QSB40048S05, QSB40048S12, QSB40048S24, QSB40048S28, QSB40048S48
TDK:PAF-F280 SERIES, PAF700F SERIES, PAF500F SERIES, PAF450F280, PAF500 SERIES, PAF600F24, PAF600F48, PAF600F280



Similar sockets with other terminals

CSP4200-16-01-508EP72-R27-L14, SMD
