690-168-SM-G10-L14-0



DesignationSocket by Andon
Article number (Eureca)01.22.0795
OriginUSA
ManufacturerAndon
Number of contacts 168
Isolation material L14
Surface Terminal/Contact G10
Mounting SMD
Terminal type -

Request samples or a quotation (including full datasheet) for this socket


Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions

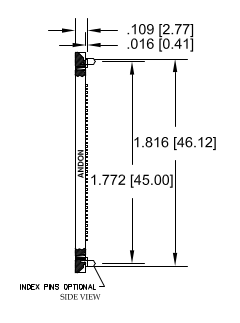

Side view

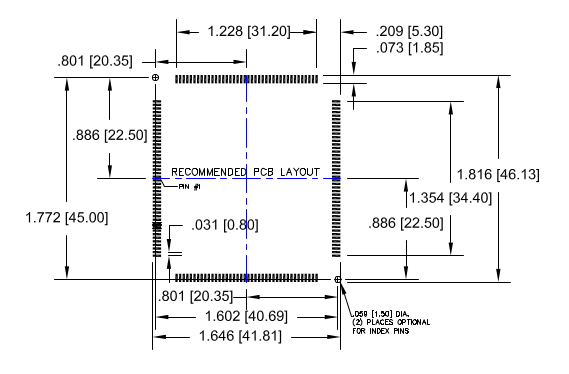

Recommended layout


This socket can be used for the following devices:

Fairchild_Imaging:CIS2521F (sCMOS 40.98x36.58mm package), CIS2020 (sCMOS version)
