R390-SP06-01T-436P55-R27-L14



DesignationSocket by Andon
Article number (Eureca)01.25.0182
OriginUSA
ManufacturerAndon
Number of contacts 6
Isolation material L14
Surface Terminal/Contact R27
Mounting THT
Terminal type 436P55

Request samples or a quotation (including full datasheet) for this socket


Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions
Used terminal type (436P55)

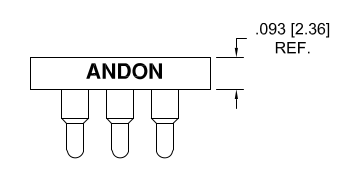

Side view


This socket can be used for the following devices:

SGX_Sensortech:IR11BD, IR11BR, IR11EJ/IR21EJ, IR11EM/IR21EM, IR11GJ/IR21GJ, IR11GM/IR21GM, IR12EJ/IR22EJ, IR12EM/IR12GM, IR12GJ/IR22GJ, IR14BD, IR15TT, IR15TT-M, IR23BD, IR25TT, IR25TT-M, IR31BC, IR31CE, IR31CEN, IR31SC, IR32BC, IR33BC, IR81BB, IR82BB, SMIR04-IR11GJ, SMIR04-IR11GM, SMIR04-IR12GJ, SMIR04-IR12GM
Teledyne_e2V:IR1xxx SERIES, 1IR2xxx SERIES 1, IR3xxx SERIES, IR4xxx SERIES, IR11BR, IR31CE, IR31SC, IR31SE, IR81BB, IR82BB


Similar sockets with other terminals

R390-SP06-01T-440P55-R27-L14, SMD
