IS229-420-01S-R29-L14



DesignationSocket by Andon
Article number (Eureca)01.25.0749
OriginUSA
ManufacturerAndon
Number of contacts 20
Isolation material L14
Surface Terminal/Contact R29
Mounting THT
Terminal type 01S

Request samples or a quotation (including full datasheet) for this socket


Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions
Used terminal type (01S)

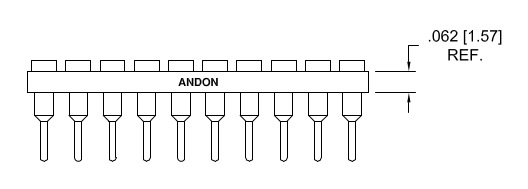

Side view


This socket can be used for the following devices:

Perkin_Elmer:HL2048P, RL0512P, RL0512P, RL0512P
Laser_Diode:TL2063PT-010FC, TL2063PT-005FC, TL2065PT-010FC, TL2065PT-005FC, RT2000PT-052FC, RT2000PT-155FC, RT2000PT-622FC
Teledyne_e2V:TH7813A, TH7814A, TH7815A, TH7817A, TH7818A, TH7819A


Similar sockets with other terminals

IS229-420-93S-R27-L14, SMD
IS229-420-93S-R29-L14, SMD
